Headlights/Daytime Running Lights (DRL) Wiring Schematics: Headlamps

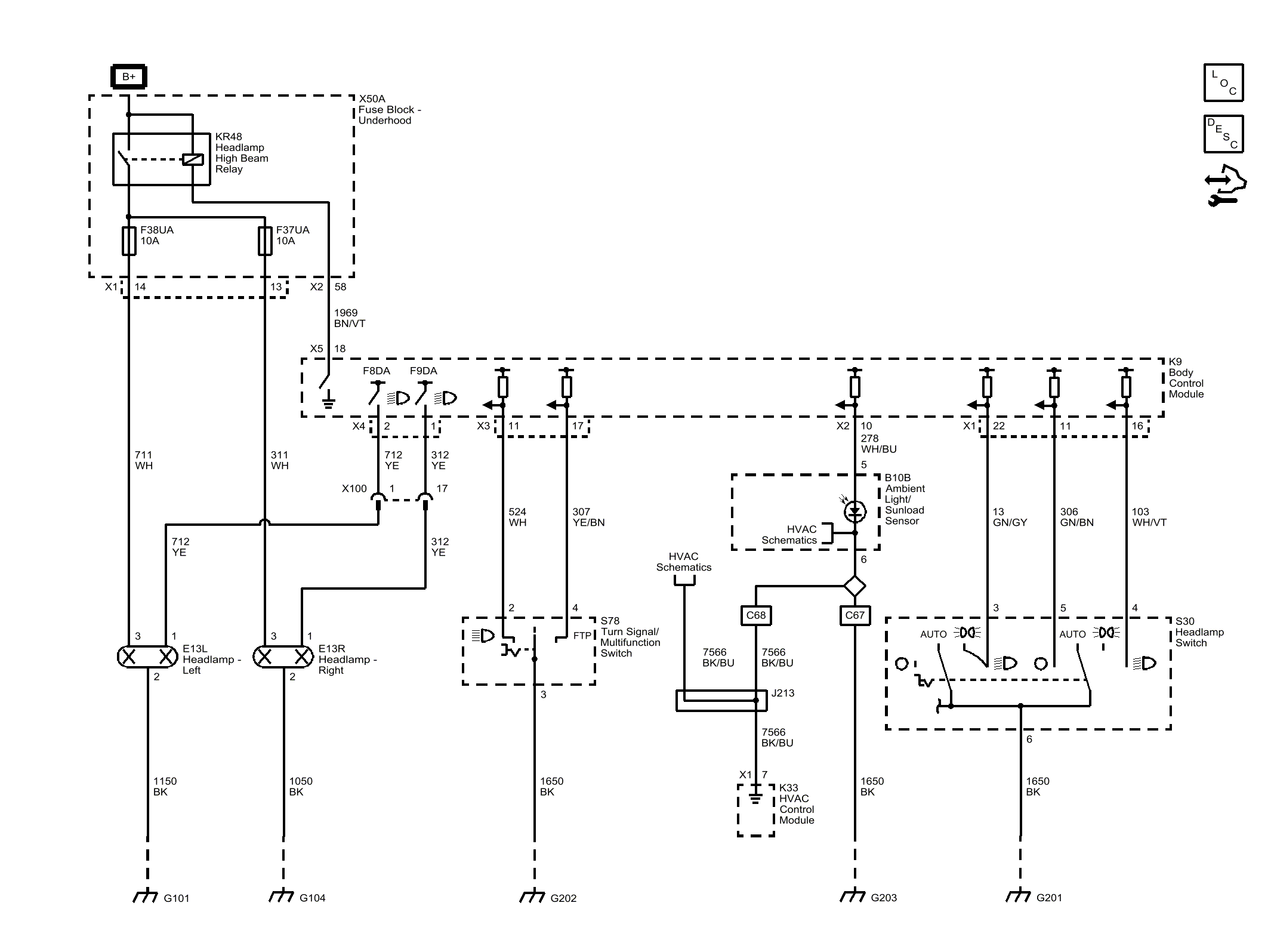

Fig 1: Headlamps

GM3814023

Courtesy of GENERAL MOTORS COMPANY
