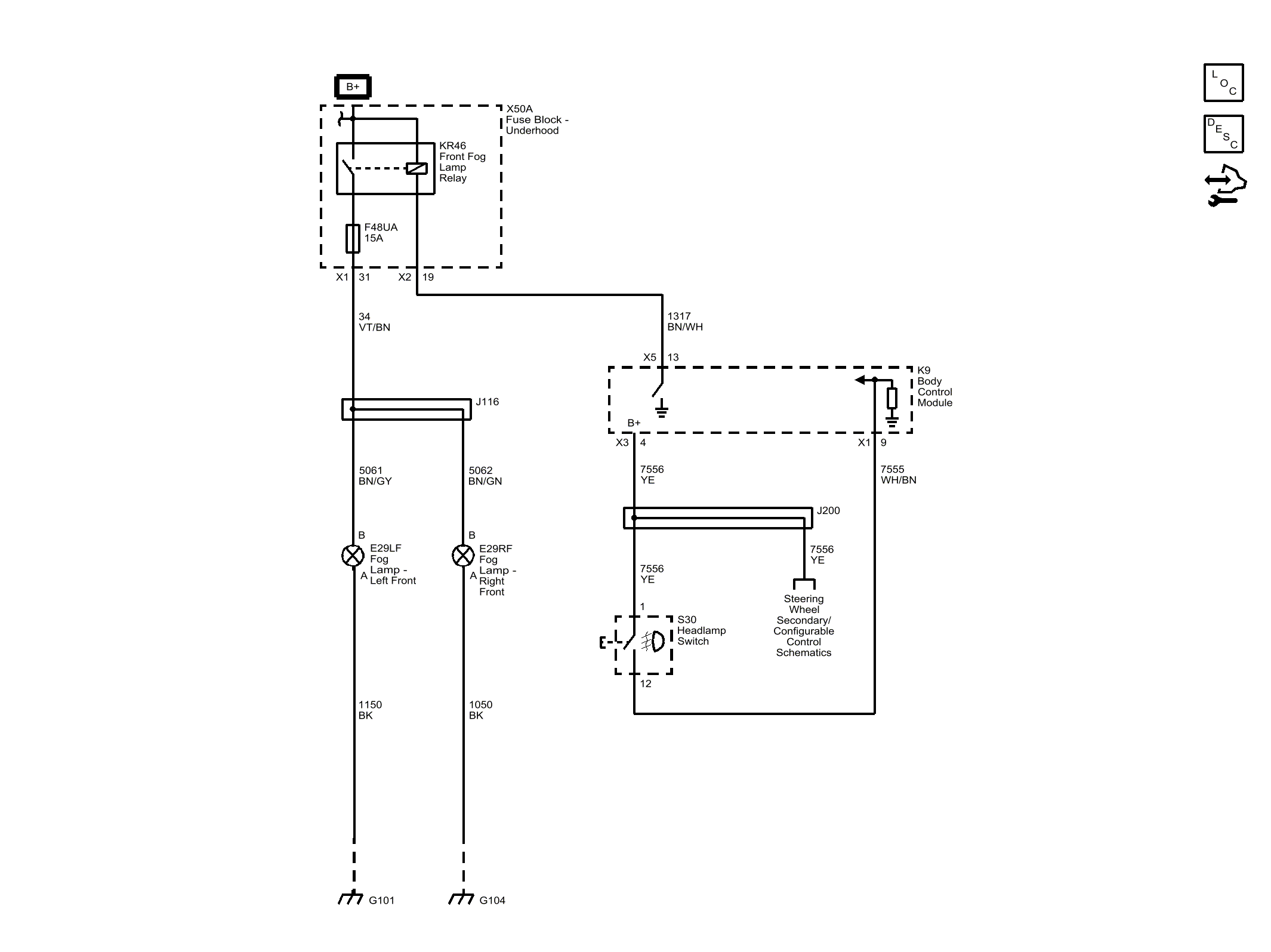

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System >> Schematic Wiring Diagrams >> Fog Lights Wiring Schematics >> Front Fog Lamps (T3U)
