Sunshade Illuminated Mirror Lamp Bulb Replacement
Sunshade Illuminated Mirror Lamp Bulb Replacement

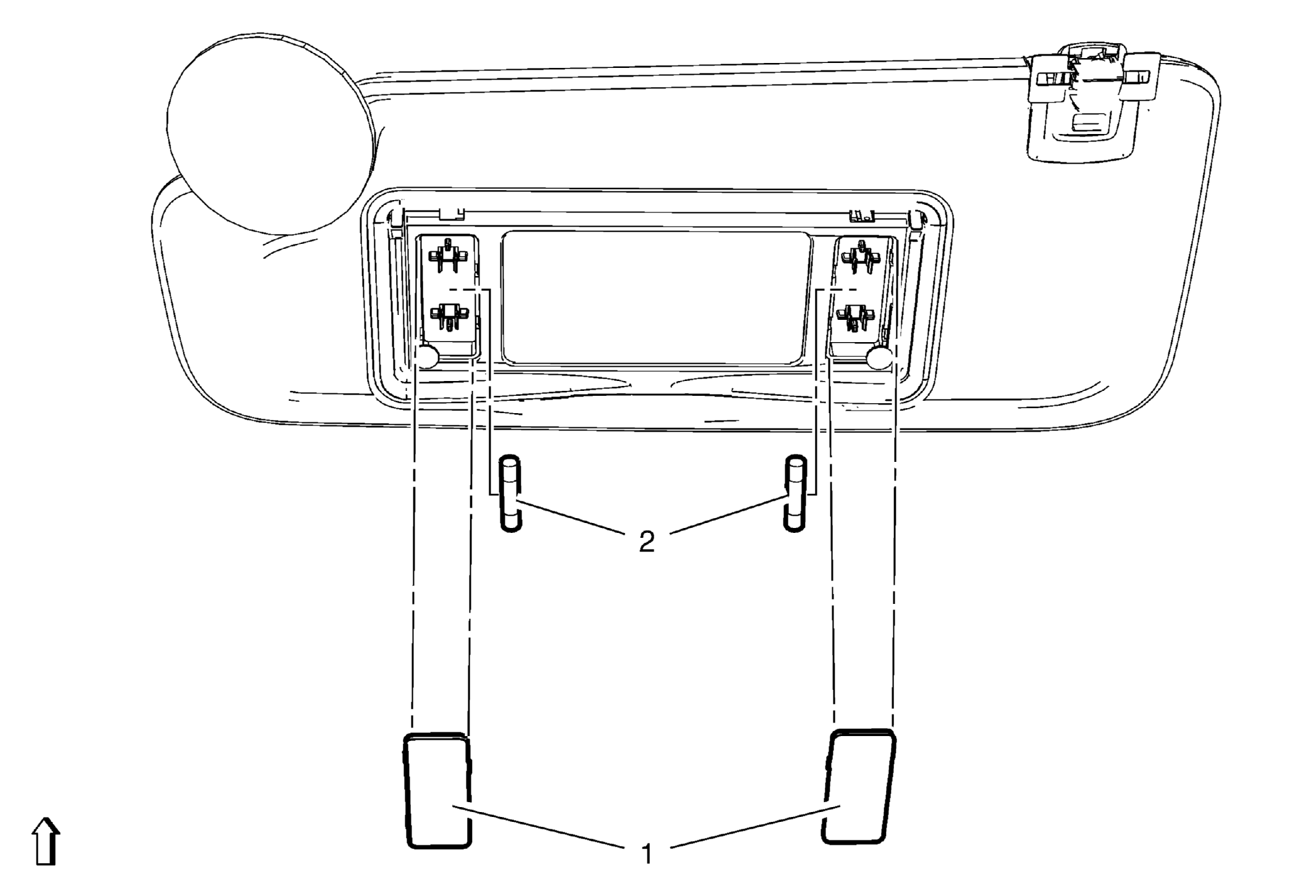

Fig 1: Sunshade Illuminated Mirror Lamp Bulb
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Sunshade Illuminated Mirror Lamp Lens
Procedure
Using a small flat bladed tool, gently pry to release the tabs at either side of the lens.
2
Sunshade Illuminated Mirror Lamp Bulb
Procedure
Pull bulb from the contacts.
