Rear License Plate Lamp Replacement

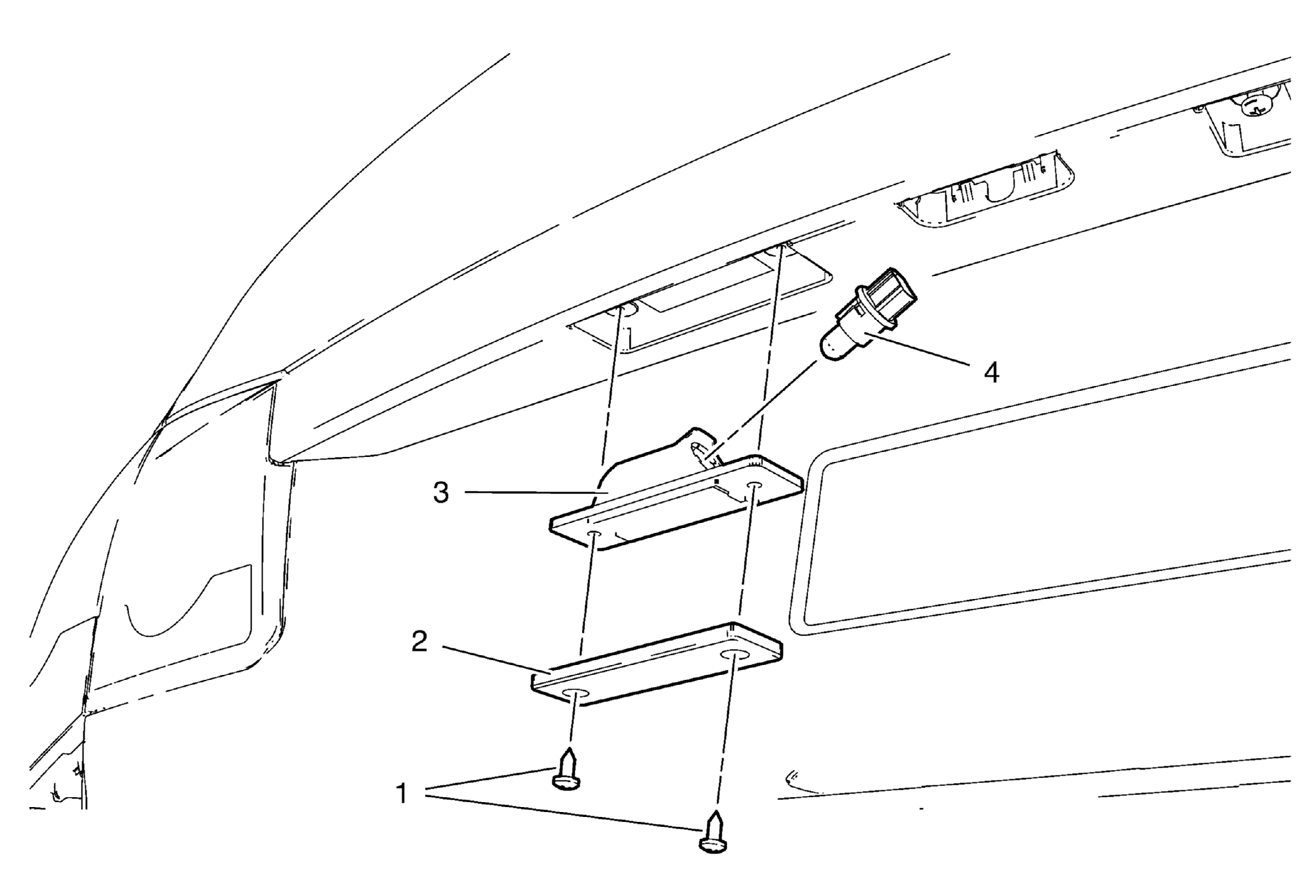

Fig 1: Rear License Plate Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear License Plate Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Rear License Plate Lamp Lens
3	Rear License Plate Lamp Procedure Rotate the lamp socket counterclockwise and remove.
4	Rear License Plate Lamp Bulb Procedure Change the bulb, as needed.
