Reading Lamp Bulb Replacement

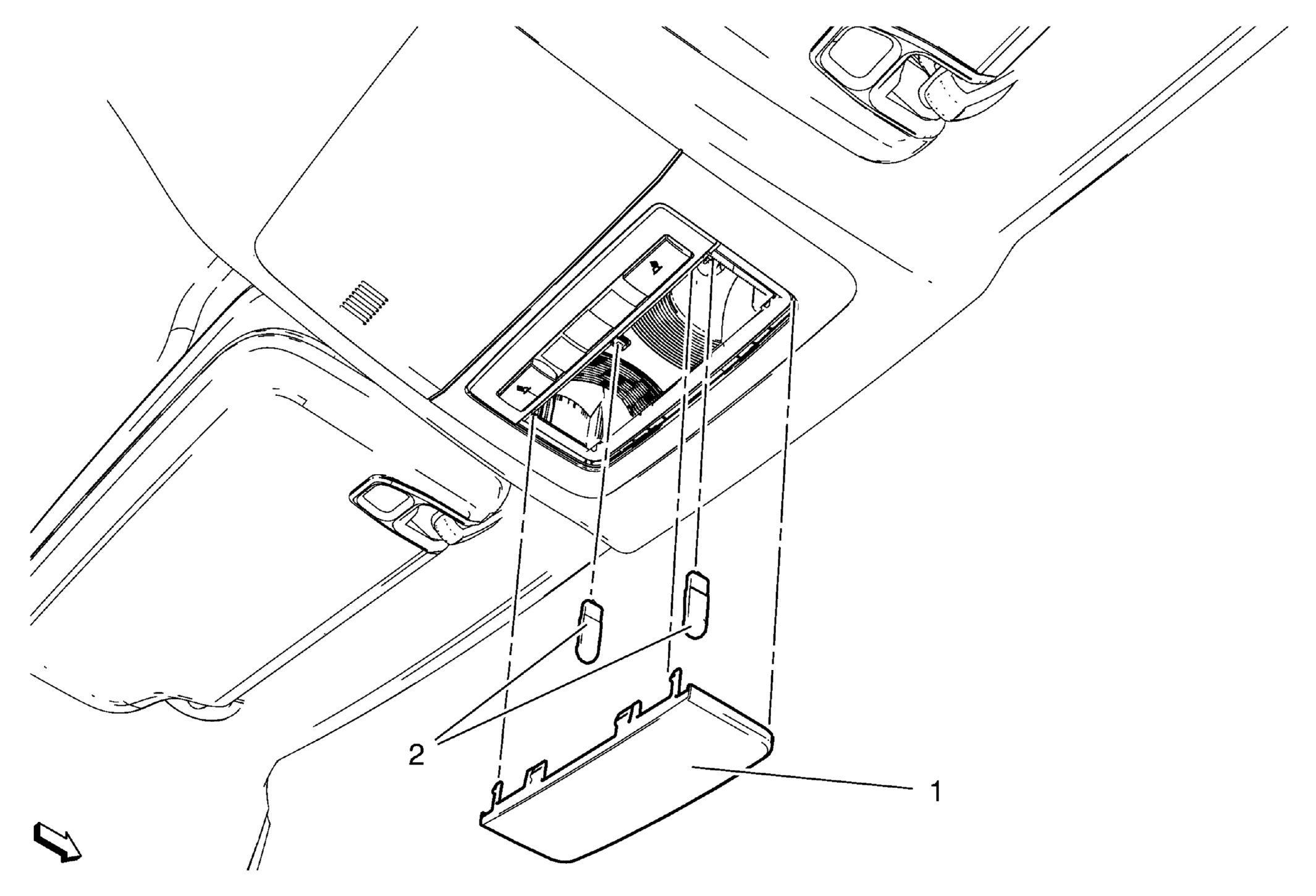

Fig 1: Reading Lamp Bulb
GM2027436Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Reading Lamp Lens
Procedure
Using a plastic flat-bladed tool, gently pry the rear edge of the reading lamp lens to remove.
2 Reading Lamp Bulb (Qty: 2)
Procedure
Pull to release bulb from socket.
