Instrument Panel Compartment Lamp Bulb Replacement

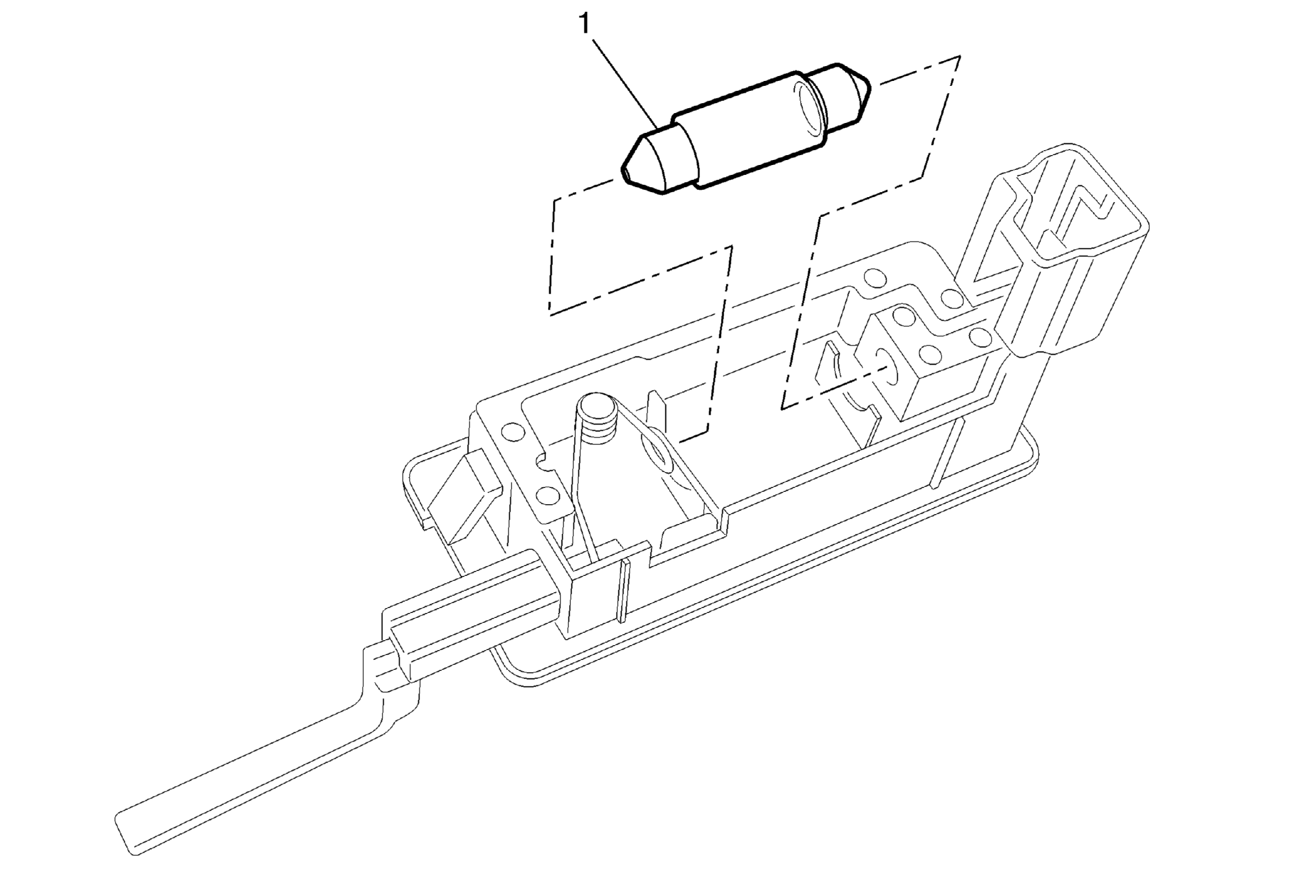

Fig 1: Instrument Panel Compartment Lamp Bulb
GM3288532Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove instrument panel compartment lamp. Refer to Instrument Panel Compartment Lamp Replacement .
1 Instrument Panel Compartment Lamp Bulb
