Headlamp Bulb Replacement

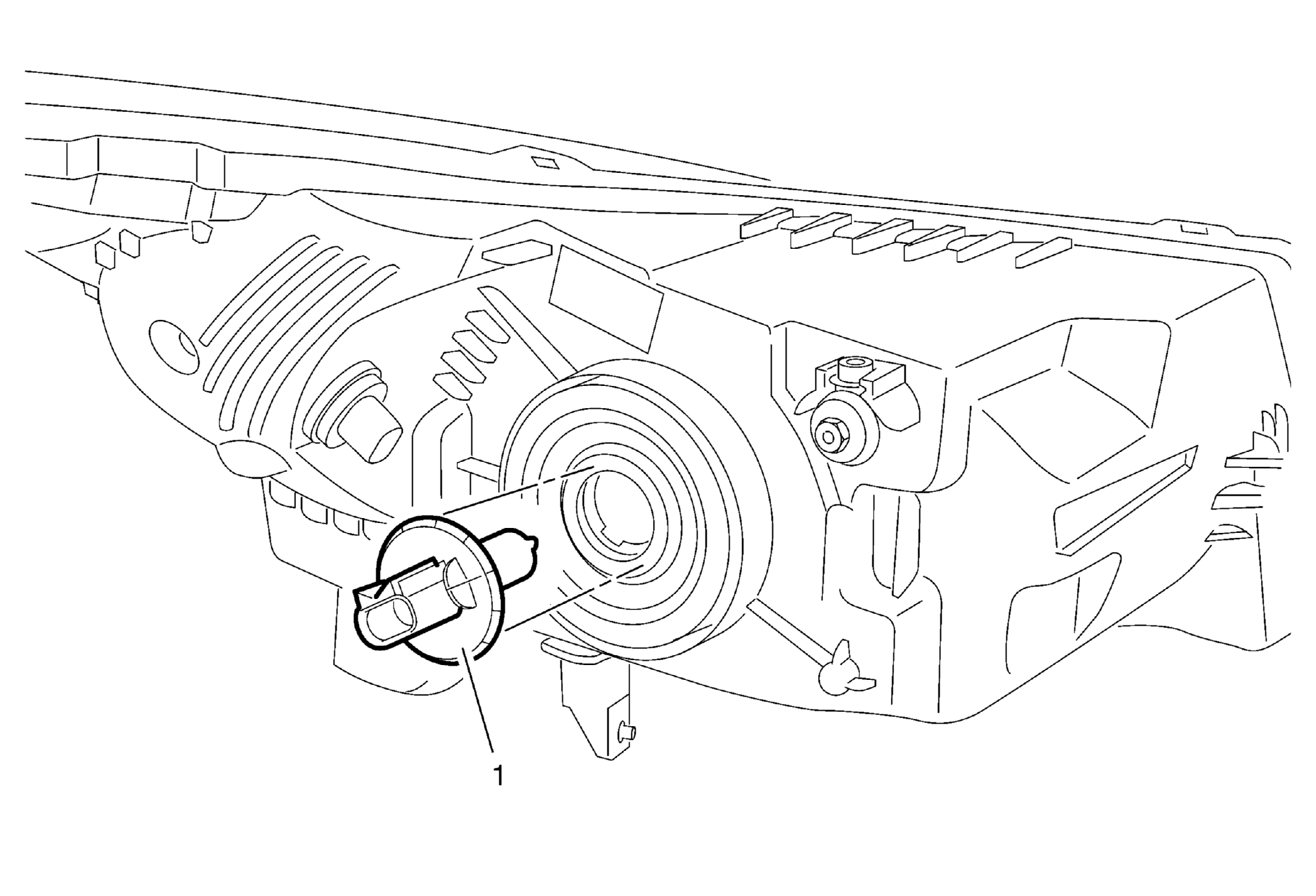

Fig 1: Headlamp Bulb
GM2512750Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Headlamp Bulb
WARNING: Refer to Halogen Bulb Warning .

Procedure

  1. Disconnect electrical connector.
  2. Rotate the headlamp bulb counter clockwise to remove from the headlamp.
