Front Side Turn Signal Lamp Replacement

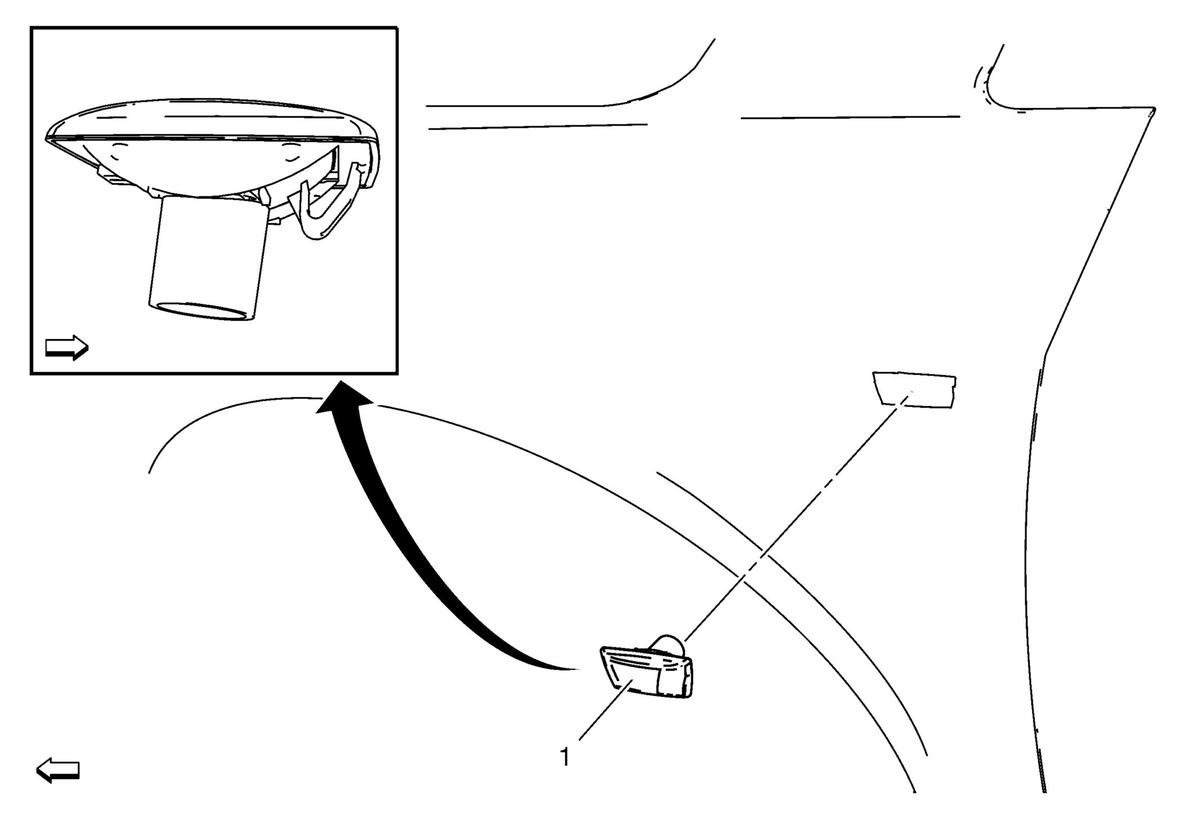

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Turn Signal Lamp Assembly Procedure Disconnect electrical connector. Replace the bulb, as needed.

Callout

Component Name

Preliminary Procedures
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Front Turn Signal Lamp Assembly

Procedure
