Front Side Marker Lamp Replacement

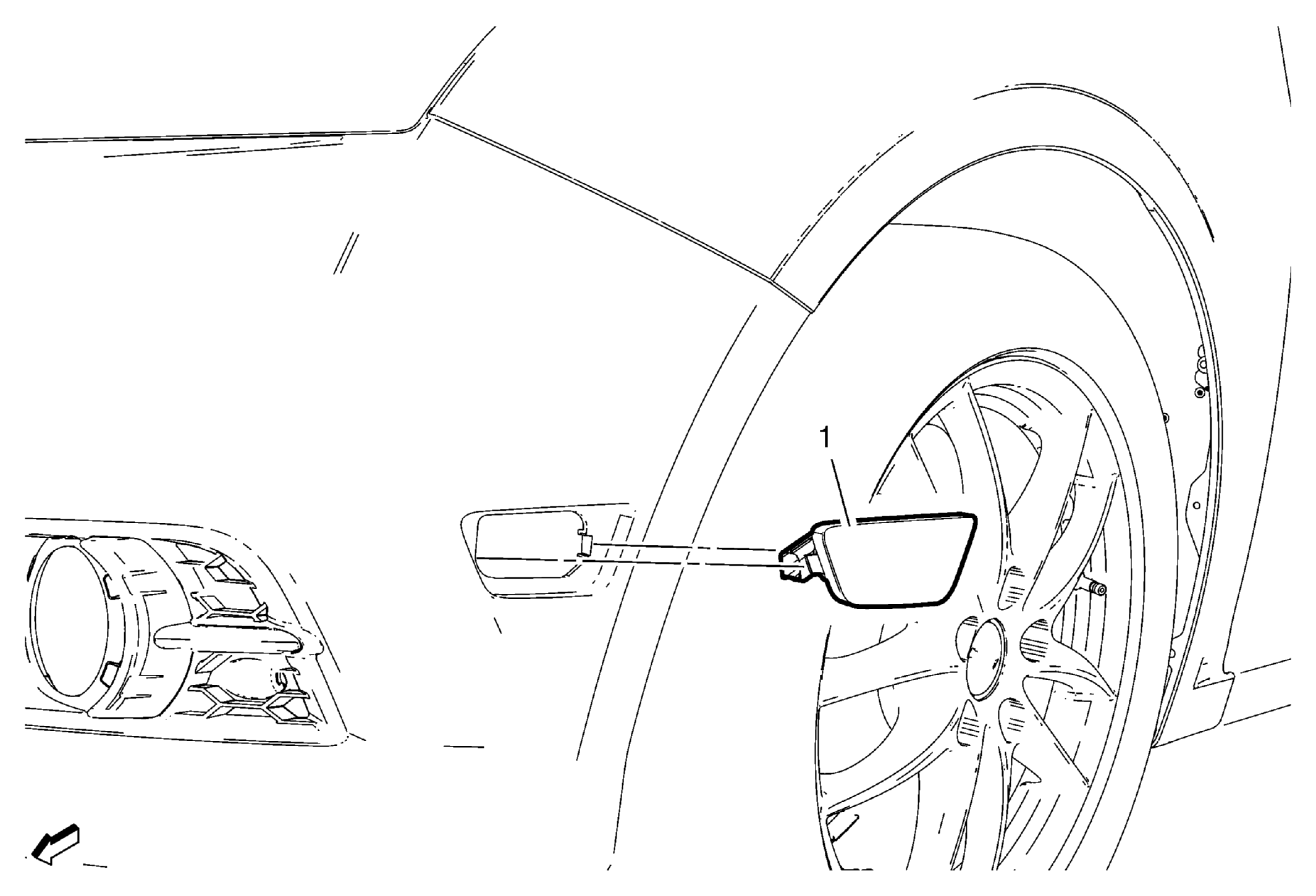

Fig 1: Front Side Marker Lamp
GM2372580Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Loosen the front portion of the front wheelhouse liner to gain access to the front side mark lamp clip. Refer to Front Wheelhouse Liner Replacement .
1 Front Side Marker Lamp

Procedure

  1. Depress the retaining clip at the rear edge of the front side marker lamp.
  2. Remove the front side marker lamp from the fascia.
  3. Disconnect the electrical connector.
