Front Fog Lamp Bulb Replacement

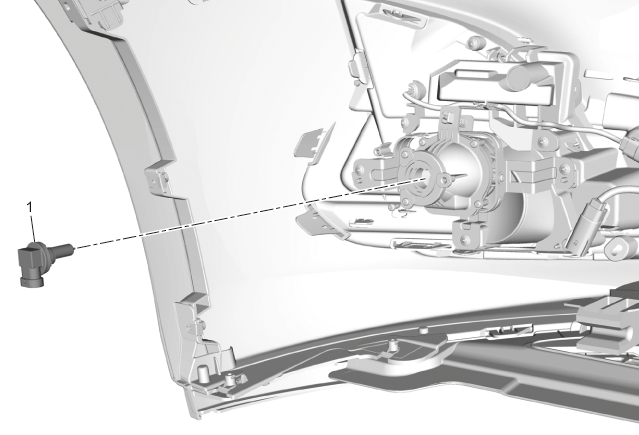

Fig 1: Front Fog Lamp Bulb
GM3903141Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Lifting and Jacking the Vehicle
1 Front Fog Lamp Bulb
WARNING: Refer to Halogen Bulb Warning .

Procedure
Disconnect the electrical connector.
