Dome Lamp Replacement (without Sunroof)

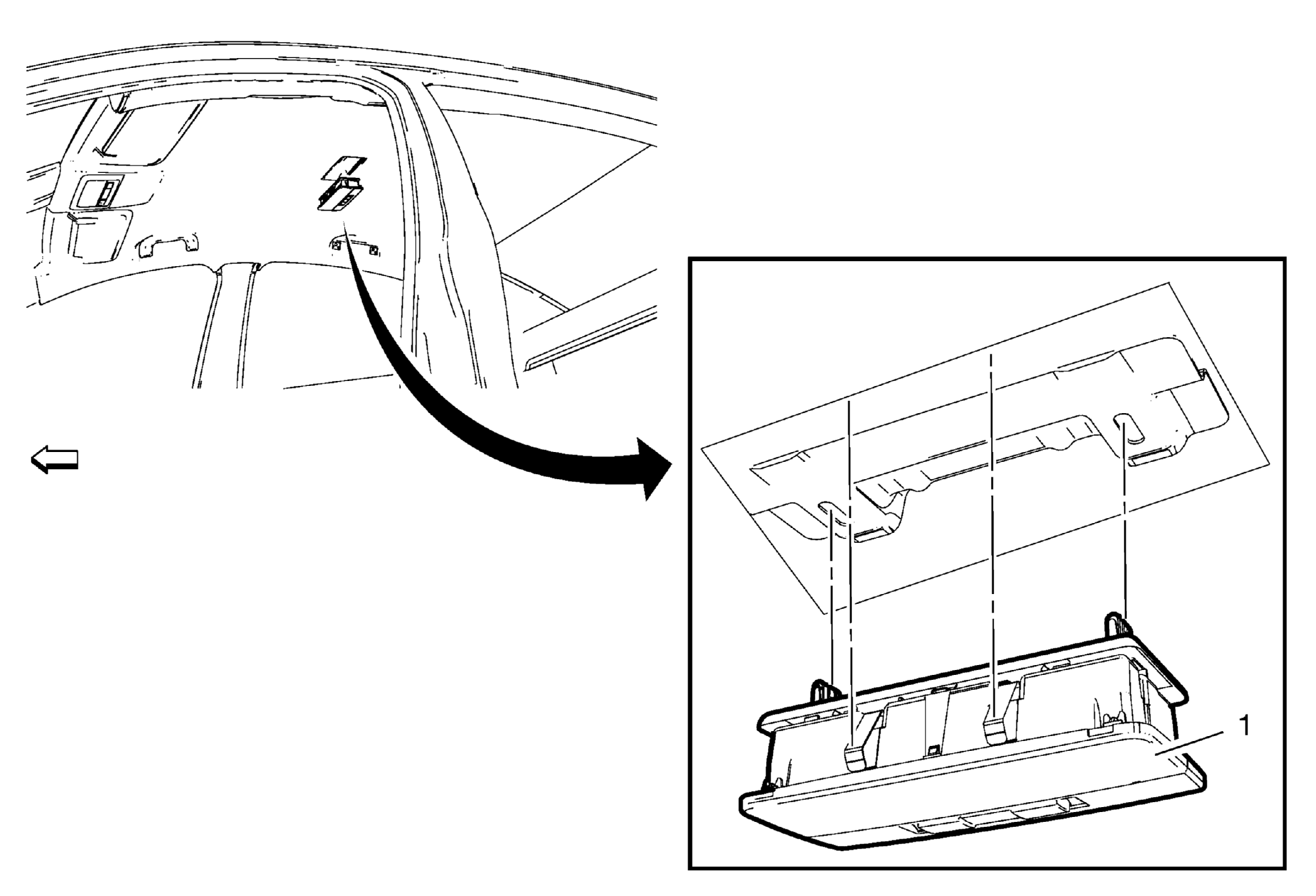

Fig 1: Dome Lamp (without Sunroof)
GM2373093Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Dome Lamp Assembly

Procedure

  1. Carefully use a flat-bladed tool and release the tabs retaining the dome lamp to headliner and roof.
  2. Carefully use a suitable screw driver and remove the spring clips from the roof bow.
  3. Disconnect electrical connector.
