Dome Lamp Replacement (with Sunroof)

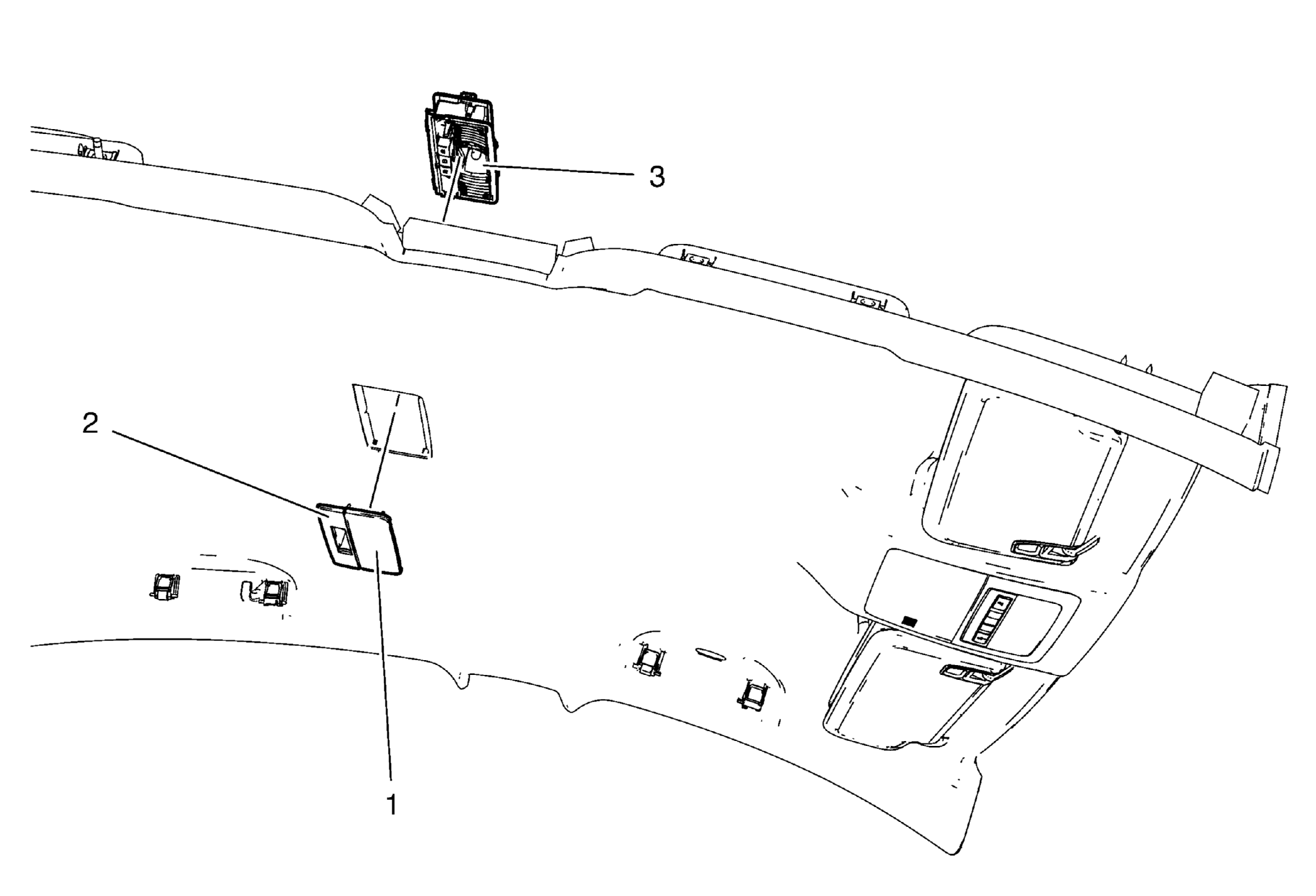

Fig 1: Dome Lamp (with Sunroof)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the headliner enough to gain access to the dome lamp housing. Refer to Headlining Trim Panel Replacement (with Sunroof) .
1	Dome Lamp Lens
2	Dome Lamp Switch Bezel
3	Dome Lamp Housing Assembly Procedure Carefully use a flat-bladed tool and release the tabs retaining the dome lamp to the headliner. Disconnect the electrical connector.
