Power, Ground, Serial Data, Antenna, (with Graphic Display)

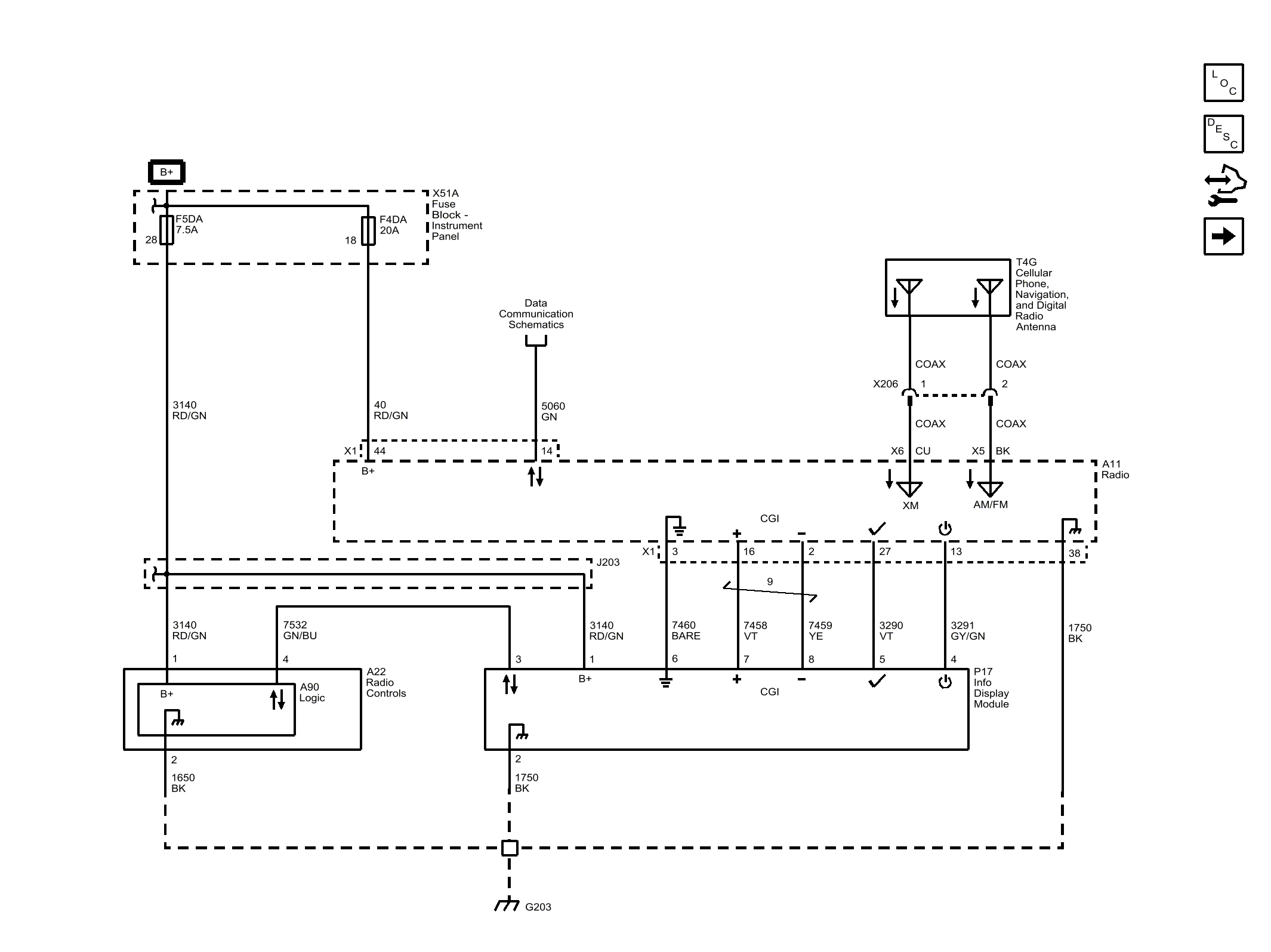

Fig 1: Power, Ground, Serial Data, Antenna, (with Graphic Display)

GM3814062

Courtesy of GENERAL MOTORS COMPANY
