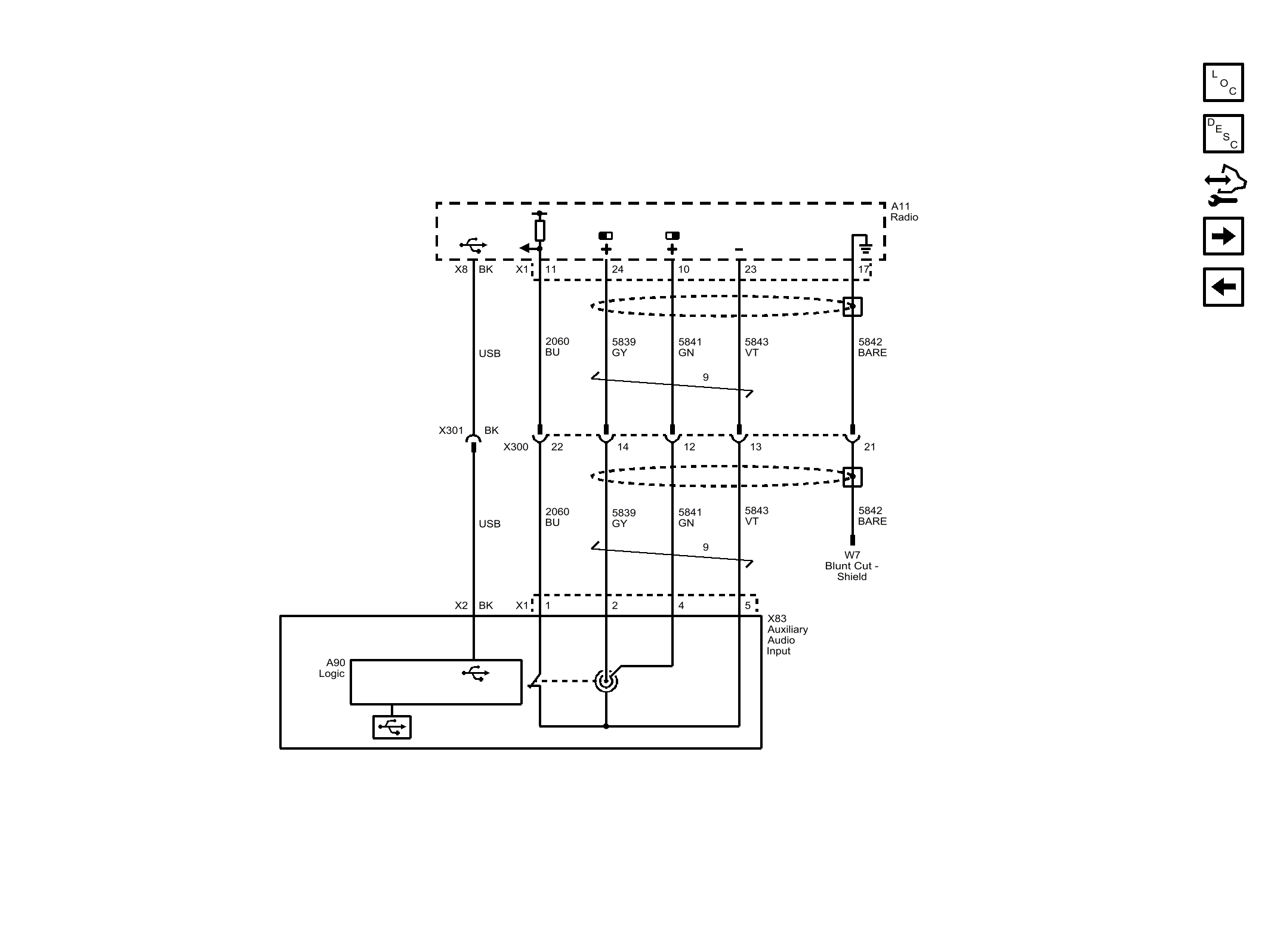

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System And Navigation System >> Schematic Wiring Diagrams >> Radio/Navigation System Wiring Schematics >> Audio Input (without KTA)
