Power, Ground, Serial Data, Microphone and Display

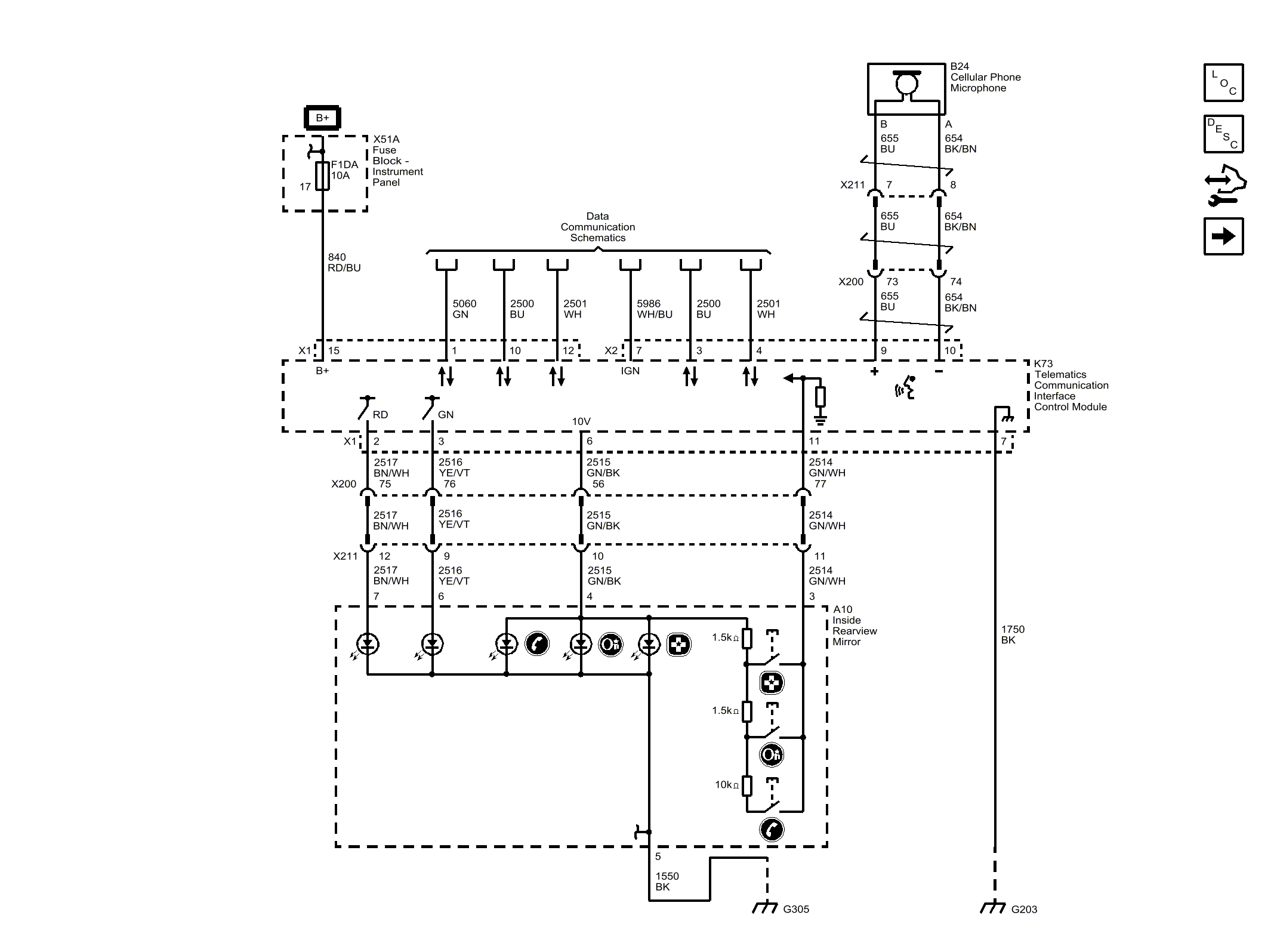

Fig 1: Power, Ground, Serial Data, Microphone and Display

GM3814071

Courtesy of GENERAL MOTORS COMPANY
