OnStar/Telematics Wiring Schematics: Antenna

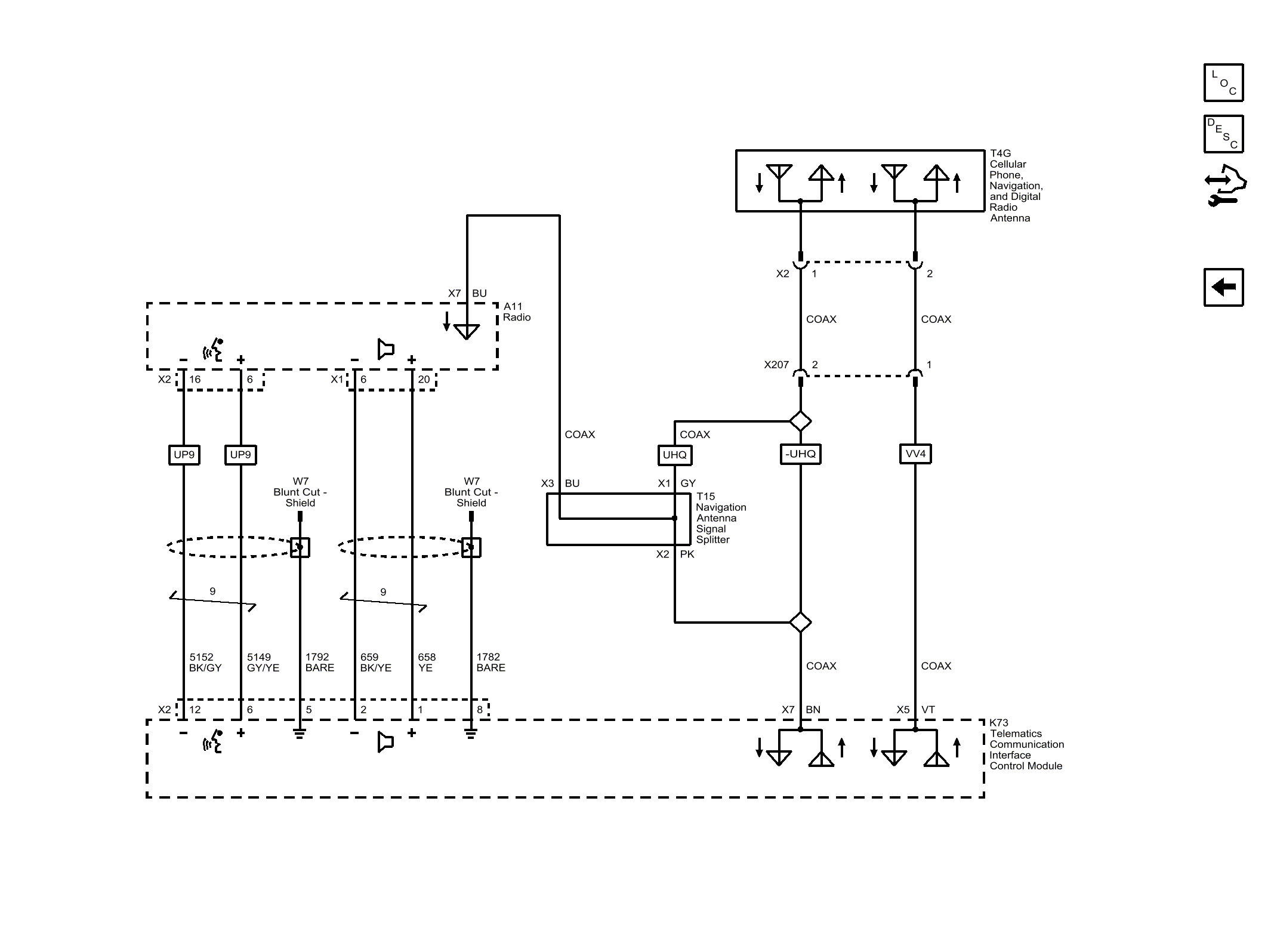

Fig 1: Antenna
GM3814072Courtesy of GENERAL MOTORS COMPANY
