Radio Speaker Amplifier Replacement

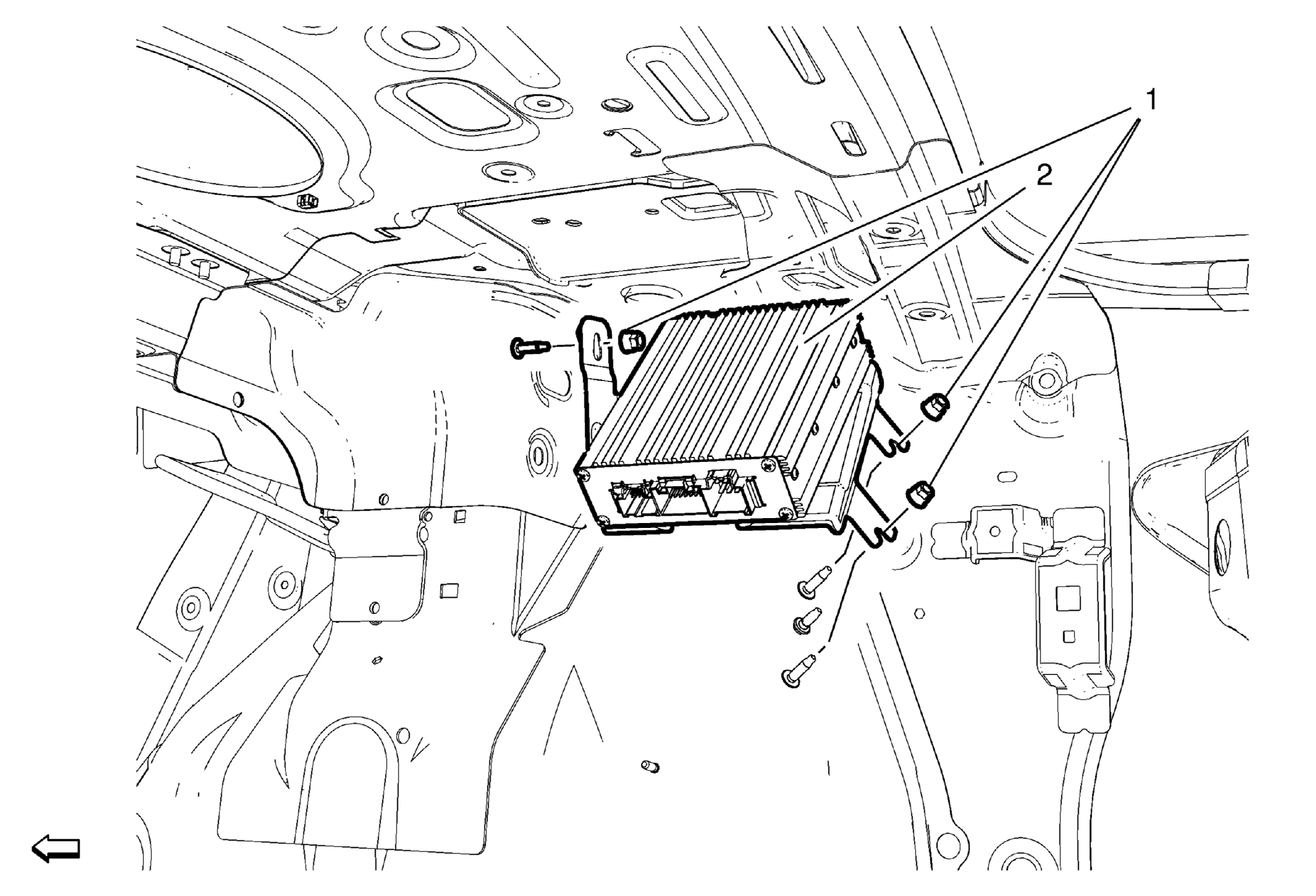

Fig 1: Radio Speaker Amplifier & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Radio Speaker Amplifier Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Speaker Amplifier. Procedure Disconnect electrical components. After repairs, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Radio Speaker Amplifier Nuts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Radio Speaker Amplifier.

Procedure
