Radio Antenna Cable Replacement (Antenna Cable)

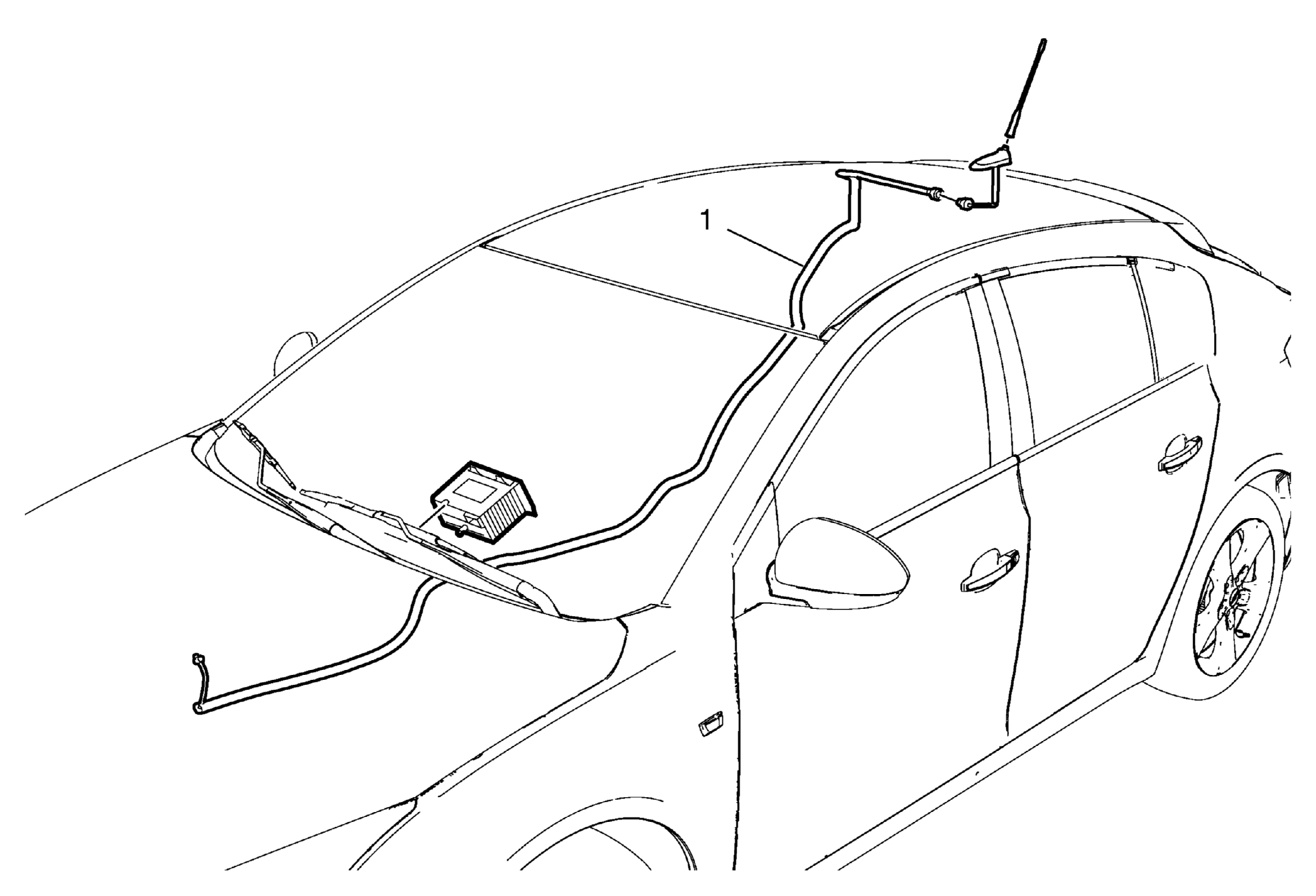

Fig 1: Radio Antenna Cable
GM2699302Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
  2. Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) .
1 Radio Antenna Cable

Procedures

  1. Locate the radio antenna cable in the body wiring harness assembly.
  2. Carefully cut the electrical tape.
  3. Disconnect electrical connectors.
  4. Replace the radio antenna cable.
  5. Secure the radio antenna cable within the electrical conduit.
