Removal Procedure

  1. Remove headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) .
  2. Remove the radio antenna base bolt (1).

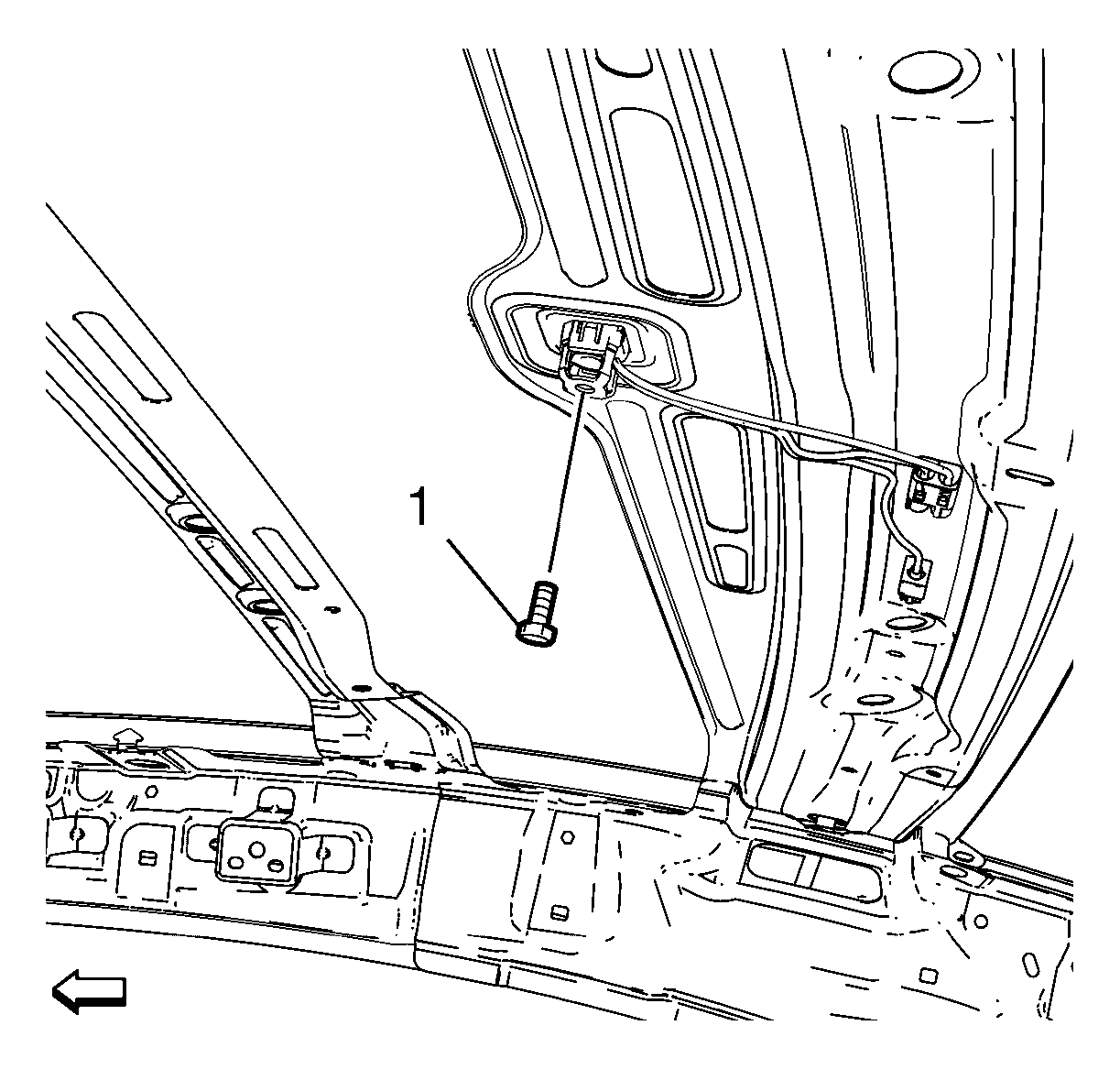

    Fig 1: Radio Antenna Base Bolt
    GM2371593Courtesy of GENERAL MOTORS COMPANY
  3. Remove the radio antenna base (1).
    Fig 2: Radio Antenna Base
    GM2371594Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the electrical connectors.
