Digital Radio, Mobile Telephone and Vehicle Location Antenna Cable Replacement (Digital Satellite Cable)

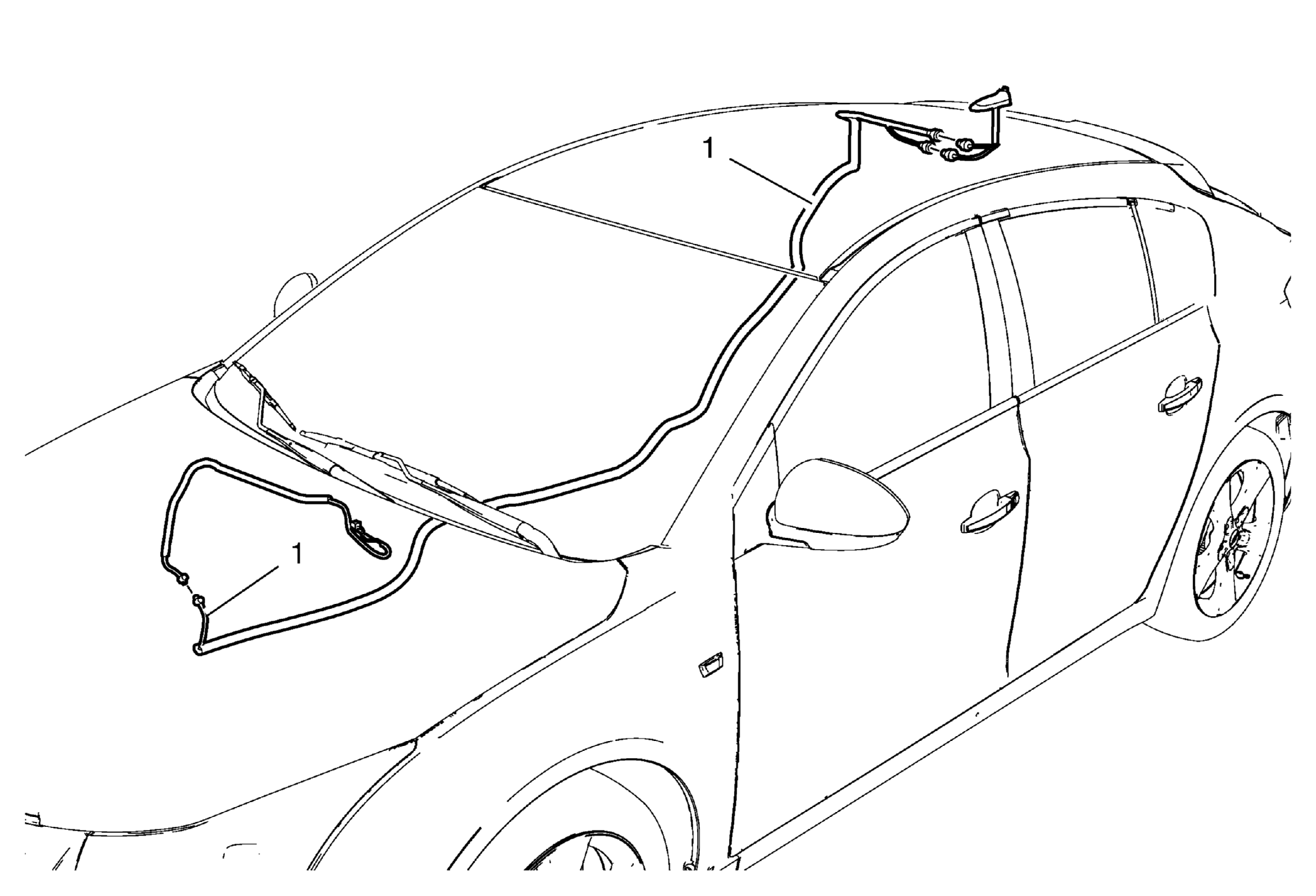

Fig 1: Radio, Mobile Telephone And Vehicle Location Antenna Cable

GM2699303

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) .

1

Radio, Mobile Telephone and Vehicle Location Antenna Cable

Procedures

Locate the radio, mobile telephone and vehicle location antenna cable in the body wiring harness assembly.
Carefully cut the electrical tape.
Disconnect electrical connectors.
Replace the radio antenna cable.
Secure the radio antenna cable within the electrical conduit.
