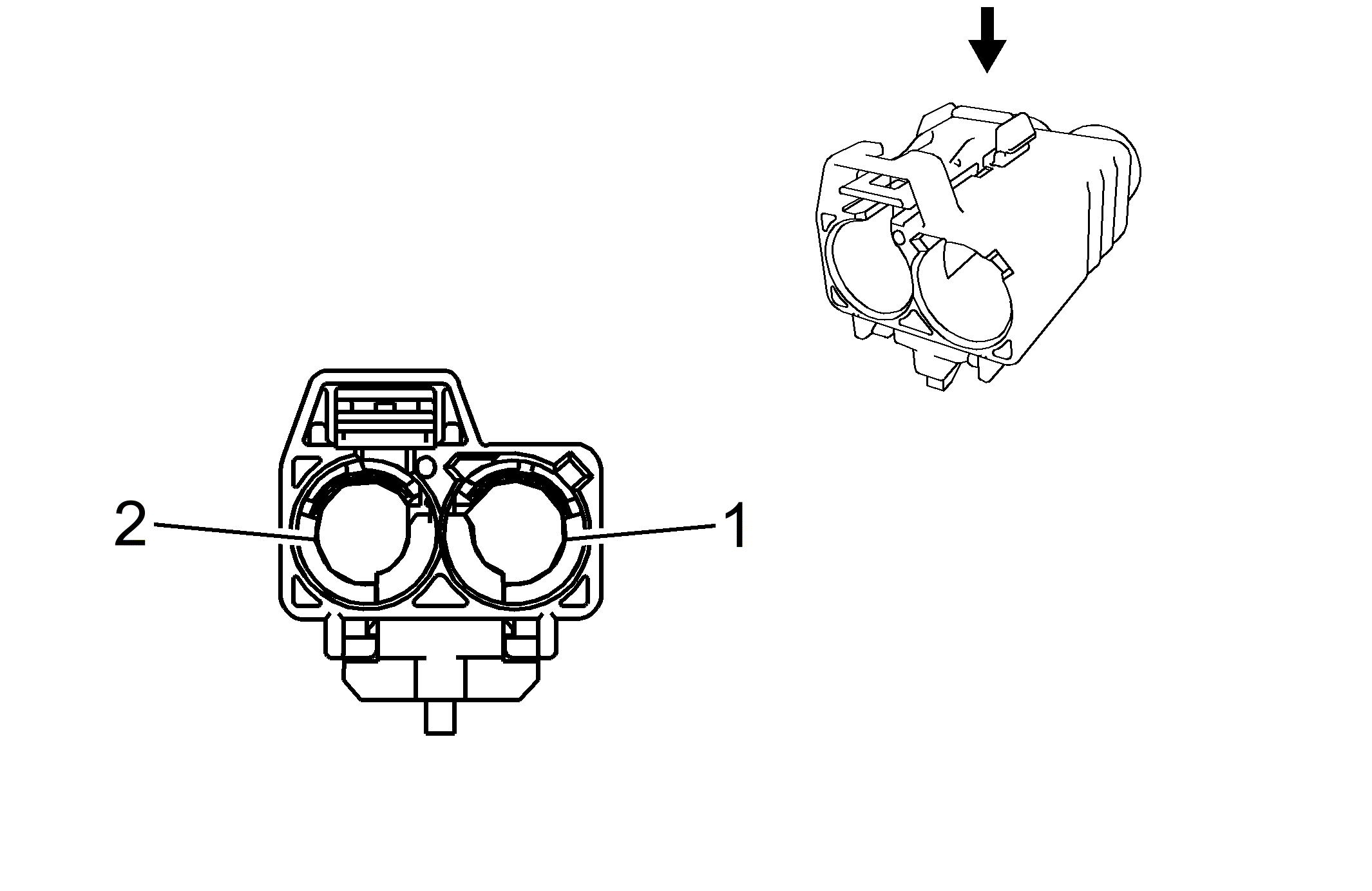

X206 Body Harness COAX to Instrument Panel Harness COAX
|
|
|
Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 13689605
- Service Connector: Service by Cable - See Part Catalog
- Description: 2-Way F Coax (BU)
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 13689668
- Service Connector: Service by Cable - See Part Catalog
- Description: 2-Way M Coax (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
COAX |
- |
I |
- |
Coaxial Antenna XM Signal |
1 |
- |
COAX |
- |
I |
- |
| 2 |
- |
COAX |
- |
I |
- |
Coaxial Antenna RF Signal |
2 |
- |
COAX |
- |
I |
- |
