X200 Instrument Panel Harness to Body Harness

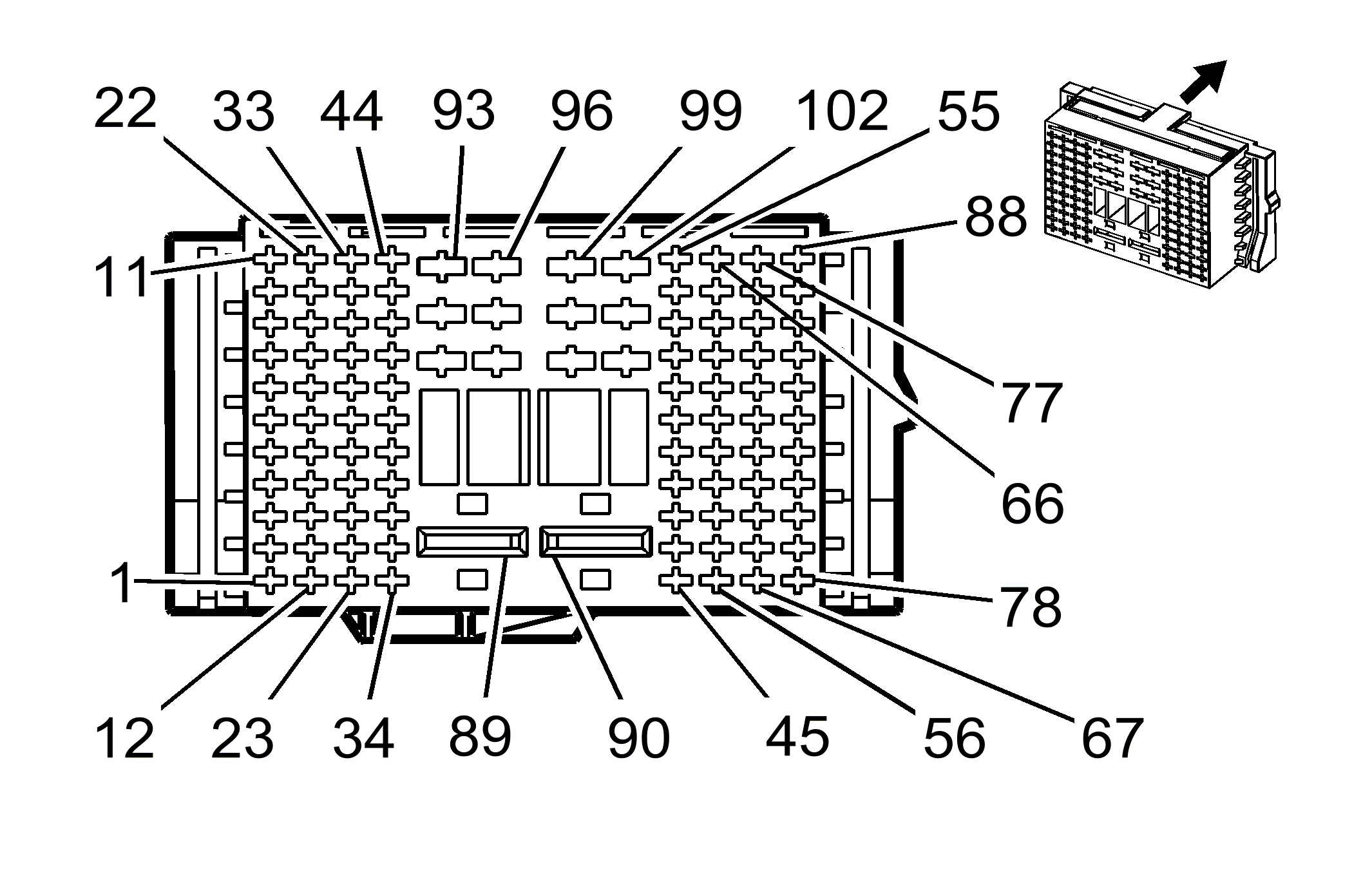

GM2174007
GM2174010
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13611146
  • Service Connector: 13337990
  • Description: 102-Way F 1.6, 2.8, 8.0 Timer Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13957518
  • Service Connector: 19119508
  • Description: 102-Way M 1.6, 2.8, 8.0 Mixed Series
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575472 J-35616-35 (VT) J-38125-36 Not Available Not Available Not Available Not Available
II 13575760 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
II 13575760 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
II 13575760 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
III 13582328 J-35616-35 (VT) J-38125-36 Not Available Not Available Not Available Not Available
IV Not Required J-35616-22 (RD) Not Required Not Required Not Required Not Required Not Required
V 13575574 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
V 13575574 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VI 13575593 J-35616-34 (YE) J-38125-560 Not Available Not Available Not Available Not Available
VI 13575593 J-35616-34 (YE) J-38125-560 Not Available Not Available Not Available Not Available
VI 13575593 J-35616-34 (YE) J-38125-560 Not Available Not Available Not Available Not Available
VII Not Required J-35616-21 (RD) Not Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.75 D-BU/YE 1960 II - Front Center Speaker (-) Low Reference 1 0.75 D-BU/YE 1960 VI -
2 0.75 YE/WH 1860 II - Front Center Speaker Control (+) 2 0.75 YE/WH 1860 VI -
3 - - - - - Not Occupied 3 - - - - -
4 0.75 D-BU/BN 7573 II - Electric Variable Displacement Supply 4 0.75 D-BU/BN 7573 VI -
5 0.75 D-BU/YE 7574 II - Electric Variable Displacement Control 5 0.75 D-BU/YE 7574 VI -
6 0.35 GY/YE 6972 II - Camera Signal 2 + 6 0.35 GY/YE 6972 VI -
7 0.35 WH/D-BU 6973 II - Camera Signal 2 7 0.35 WH/D-BU 6973 VI -
8 0.5 BN/BK 3552 II - Passive Start Interior Antenna 1 Signal Hi 8 0.5 BN/BK 3552 VI -
9 0.5 D-BU 3554 II - Passive Start Interior Antenna 2 Signal Hi 9 0.5 D-BU 3554 VI -
10 0.5 GY/BK 3555 II - Passive Start Interior Antenna 2 Signal Lo 10 0.5 GY/BK 3555 VI -
11 0.5 WH 3553 II - Passive Start Interior Antenna 1 Signal Lo 11 0.5 WH 3553 VI -
12 0.75 BN/D-BU 118 II - Left Front Speaker Signal (-) (1) 12 0.75 BN/D-BU 118 VI -
13 0.75 YE/BK 117 II - Right Front Speaker Signal (-) (1) 13 0.75 YE/BK 117 VI -
14 0.75 L-GN/BK 116 II - Left Rear Speaker Signal (-) 14 0.75 L-GN/BK 116 VI -
15 0.75 D-BU/BK 115 II - Right Rear Speaker Signal (-) 15 0.75 D-BU/BK 115 VI -
16 0.5 VT/BK 7553 II - Park Lock Solenoid Control 16 0.35 VT/BK 7553 VI -
17 0.5 VT/BK 3 II - Run/Crank Ignition 1 Voltage 17 0.5 VT/BK 3 VI -
18 0.35 BARE 6974 II - Camera Low Reference 18 0.35 BARE 6974 VI -
19 0.5 D-BU/YE 6105 II - High Speed GMLAN Serial Data (+) (2) 19 0.5 D-BU/YE 6105 VI -
20 0.5 WH 6106 II - High Speed GMLAN Serial Data (-) (2) 20 0.5 WH 6106 VI -
21 - 22 - - - - - Not Occupied 21 - 22 - - - - -
23 0.75 D-BU 201 II - Left Front Speaker Control (+) (1) 23 0.75 D-BU 201 VI -
24 0.75 YE 200 II - Right Front Speaker Control (+) (1) 24 0.75 YE 200 VI -
25 0.75 L-GN 199 II - Left Rear Speaker Control (+) 25 0.75 L-GN 199 VI -
26 0.75 WH 46 II - Right Rear Speaker Control (+) 26 0.75 WH 46 VI -
27 - - - - - Not Occupied 27 - - - - -
28 0.5 VT/YE 4 II - Accessory Ignition Voltage 28 0.5 VT/YE 4 VI -
29 0.5 BK/GY 6110 II - Clutch Apply Sensor Low Reference 29 0.5 BK/GY 6110 VI -
30 0.5 YE 6111 II - Clutch Apply Sensor Signal 30 0.5 YE 6111 VI -
31 0.5 GY/RD 6109 II - Clutch Apply Sensor 5 Volt Reference 31 0.5 GY/RD 6109 VI -
32 - - - - - Not Occupied 32 - - - - -
33 0.35 GY/L-GN 7565 II - Windscreen Temp Sensor Signal 33 0.35 GY/L-GN 7565 VI -
34 0.35 RD/BN 1140 II - Battery Positive Voltage 34 0.35 RD/BN 1140 VI -
35 - - - - - Not Occupied 35 - - - - -
36 0.5 YE/L-GN 3274 II - Remote Function Actuator Transmit Signal 36 0.35 YE/L-GN 3274 VI -
37 0.5 D-BU/WH 3275 II - Remote Function Actuator Receive Signal 37 0.35 D-BU/WH 3275 VI -
38 0.5 GY/WH 3272 II - Remote Function Actuator Control 38 0.35 GY/WH 3272 VI -
39 0.5 GY 3273 II - Remote Function Actuator Low Reference 39 0.35 GY 3273 VI -
40 - - - - - Not Occupied 40 - - - - -
41 0.5 D-BU/GY 636 II - Outside Ambient Air Temperature Sensor Signal 41 0.5 D-BU/GY 636 VI -
42 0.5 L-GN/BK 3558 II - Passive Start Switch Signal 2 42 0.5 L-GN/BK 3558 VI -
43 0.5 BK/GY 3559 II - Passive Start Switch 2 Low Reference 43 0.5 BK/GY 3559 VI -
44 0.35 YE/D-BU 3197 II - Humidity Temperature Sensor Signal 44 0.35 YE/D-BU 3197 VI -
45 0.5 YE/WH 1161 II - Accelerator Pedal Position Signal (1) 45 0.5 YE/WH 1161 VI -
46 0.5 BK/D-BU 1271 II - Accelerator Pedal Position Low Reference (1) 46 0.5 BK/D-BU 1271 VI -
47 0.5 BK/VT 1272 II - Accelerator Pedal Position Low Reference (2) 47 0.5 BK/VT 1272 VI -
48 0.5 L-GN/WH 1162 II - Accelerator Pedal Position Signal (2) 48 0.5 L-GN/WH 1162 VI -
49 0.5 BK/D-BU 61 II - Outside Ambient Temperature Sensor Low Reference 49 0.5 BK/D-BU 61 VI -
50 - - - - - Not Occupied 50 - - - - -
51 0.5 L-GN/GY 6135 II - Local Interconnect Network Serial Data Bus 4 51 0.5 L-GN/GY 6135 VI -
52 0.5 WH 5359 II - Brake Apply Sensor Control 52 0.5 WH 5359 VI -
53 0.5 VT/L-GN 3039 II - Run/Crank Ignition 1 Voltage 53 0.5 VT/L-GN 3039 VI -
54 0.35 RD/L-GN 3140 II - Battery Positive Voltage 54 0.35 RD/L-GN 3140 VI -
55 0.35 RD/D-BU 840 II - Battery Positive Voltage 55 - - - - -
56 0.35 L-GN/BK 2515 II - Keypad Control 56 0.35 L-GN/BK 2515 VI -
57 0.5 L-GN/BN 507 II - Wait To Start Indicator Control 57 0.5 L-GN/BN 507 VI -
58 0.5 GY/YE 6188 II - Lift Glass/Rear Compartment Lid Motor Release Control 58 0.5 GY/YE 6188 VI -
59 - 60 - - - - - Not Occupied 59 - 60 - - - - -
61 0.5 BN/VT 193 II - Rear Defog Relay Control 61 0.5 BN/VT 193 VI -
62 0.35 BK/D-BU 7566 II - Humidity/Windscreen Temp Sensor Low Reference 62 0.35 BK/D-BU 7566 VI -
63 0.35 GY/D-BU 7564 II - Humidity Sensor Signal 63 0.35 GY/D-BU 7564 VI -
64 0.35 YE/RD 597 II - 5 Volt Reference 64 0.35 YE/RD 597 VI -
65 0.5 BN/RD 1274 II - Accelerator Pedal Position 5 Volt Reference (2) 65 0.5 BN/RD 1274 VI -
66 0.5 WH/RD 1164 II - Accelerator Pedal Position 5 Volt Reference (1) 66 0.5 WH/RD 1164 VI -
67 0.5 WH/VT 5905 II - Key Capture/Column Lock Shift Position Signal 67 0.5 WH/VT 5905 VI -
68 0.5 L-GN/BN 2087 II - Combined Vehicle Inertial Sensor Supply Voltage 68 0.5 L-GN/BN 2087 VI -
69 0.5 D-BU/YE 6795 II - Lift Glass/Rear Compartment Lid Motor Release Control 2 69 0.5 D-BU/YE 6795 VI -
70 0.5 VT/WH 239 II - Run/Crank Ignition 1 Voltage 70 0.5 VT/WH 239 VI -
71 0.5 VT/WH 239 II - Run/Crank Ignition 1 Voltage 71 0.5 VT/WH 239 VI -
72 0.5 GY/L-GN 328 II - Interior Lamp Defeat Switch Signal 72 0.35 GY/L-GN 328 VI -
73 0.5 D-BU 655 II - Cellular Telephone Microphone Signal 73 0.5 D-BU 655 VI -
74 0.5 BK/BN 654 II - Cellular Telephone Microphone Low Reference 74 0.5 BK/BN 654 VI -
75 0.35 BN/WH 2517 II - Keypad Red LED Control 75 0.35 BN/WH 2517 VI -
76 0.35 YE/VT 2516 II - Keypad Green LED Control 76 0.35 YE/VT 2516 VI -
77 0.35 L-GN/WH 2514 II - Keypad Signal 77 0.35 L-GN/WH 2514 VI -
78 0.5 BN/WH 5043 II - Keyword 2000 Serial Data 78 - - - - -
79 0.5 BN/WH 419 II - Check Engine Indicator Control 79 0.5 BN/WH 419 VI -
80 0.5 WH/D-BU 5986 II - Serial Data Communication Enable 80 0.5 WH/D-BU 5986 VI -
81 0.5 D-BU/YE 6105 II - High Speed GMLAN Serial Data (+) (2) 81 0.5 D-BU/YE 6105 VI -
82 0.5 WH 6106 II - High Speed GMLAN Serial Data (-) (2) 82 0.5 WH 6106 VI -
83 0.5 D-BU/YE 5361 II - Brake Apply Sensor Signal 83 0.5 D-BU/YE 5361 VI -
84 0.35
0.5		 VT/BK
RD/BN		 3
202		 II -
-		 Run/Crank Ignition 1 Voltage
Battery Positive Voltage		 84 0.35 VT/BK 3 VI -
85 - - - - - AAS Wheel Speed Sensor Signal Left Front 85 0.5 GY 1903 VI -
86 0.5 BK/BN 5360 II - Brake Apply Sensor Low Reference 86 0.5 BK/BN 5360 VI -
87 0.5 D-BU 2500 II - High Speed GMLAN Serial Data (+) (1) 87 0.5 D-BU 2500 VI -
88 0.5 WH 2501 II - High Speed GMLAN Serial Data (-) (1) 88 0.5 WH 2501 VI -
89 10 RD/YE 5040 IV - Battery Positive Voltage 89 10 RD/YE 5040 VII -
90 10 RD/GN 5140 IV - Battery Positive Voltage 90 10 RD/GN 5140 VII -
91 1.5 RD/BN 702 I - Battery Positive Voltage 91 1.5 RD/BN 702 V -
92 - 96 - - - - - Not Occupied 92 - 96 - - - - -
97 0.5 YE/VT 244 III - Passenger Door Lock Switch Lock Control 97 0.5 YE/VT 244 V -
98 0.5 BN/VT 245 III - Passenger Door Lock Switch Unlock Control 98 0.5 BN/VT 245 V -
99 - 102 - - - - - Not Occupied 99 - 102 - - - - -
