X160 Engine Harness to Fuel Injector Harness (LUZ)
|
|
|

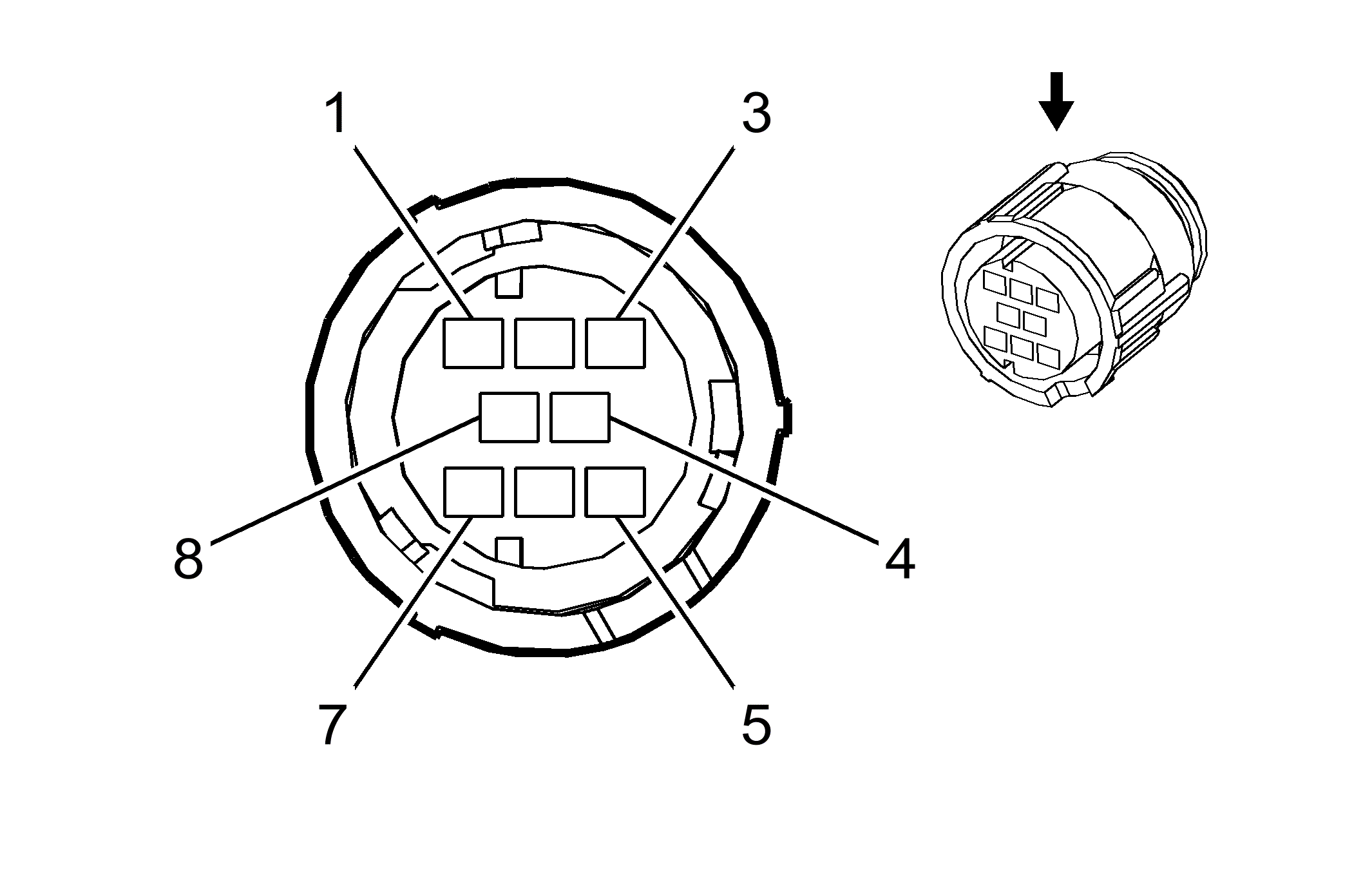

Connector Part Information
- Harness Type: Engine
- OEM Connector: 45.1087
- Service Connector: 13579433
- Description: 8-Way F 2.8 Series, Sealed (BK)
|

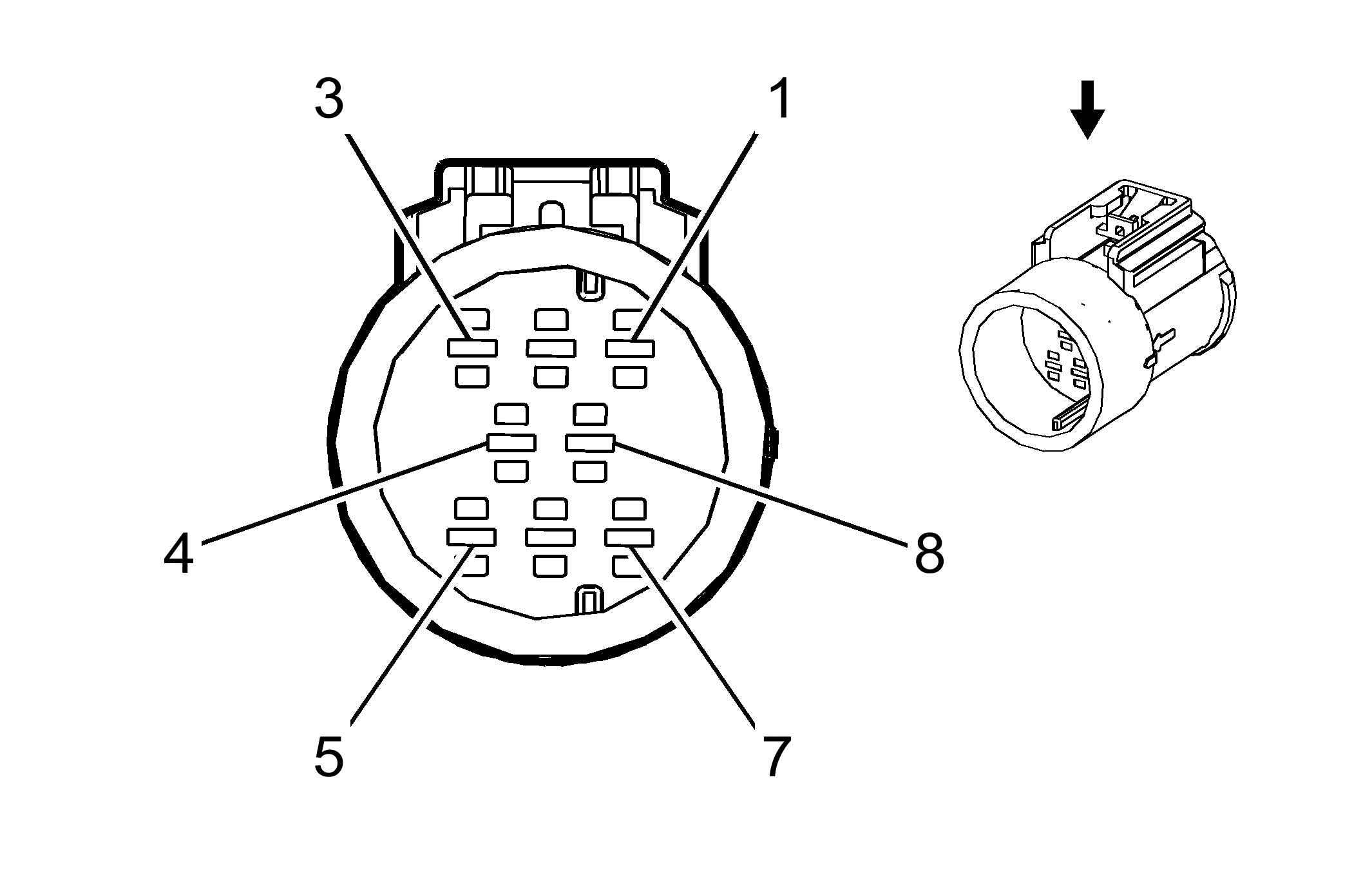

Connector Part Information
- Harness Type: Fuel Injector
- OEM Connector: 55572002
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 8-Way M 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN |
4801 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 1 |
1 |
1.5 |
BN |
4801 |
II |
- |
| 2 |
1.5 |
BN/WH |
4901 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1 |
2 |
1.5 |
BN/WH |
4901 |
II |
- |
| 3 |
1.5 |
BU |
4802 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 2 |
3 |
1.5 |
YE/WH |
4802 |
II |
- |
| 4 |
1.5 |
BU/GY |
4902 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2 |
4 |
1.5 |
BU/GY |
4902 |
II |
- |
| 5 |
1.5 |
GN |
4803 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 3 |
5 |
1.5 |
GN |
4803 |
II |
- |
| 6 |
1.5 |
GN/GY |
4903 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3 |
6 |
1.5 |
GN/GY |
4903 |
II |
- |
| 7 |
1.5 |
BN/YE |
4804 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 4 |
7 |
1.5 |
GY/BU |
4804 |
II |
- |
| 8 |
1.5 |
BU/WH |
4904 |
I |
- |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4 |
8 |
1.5 |
BU/WH |
4904 |
II |
- |
