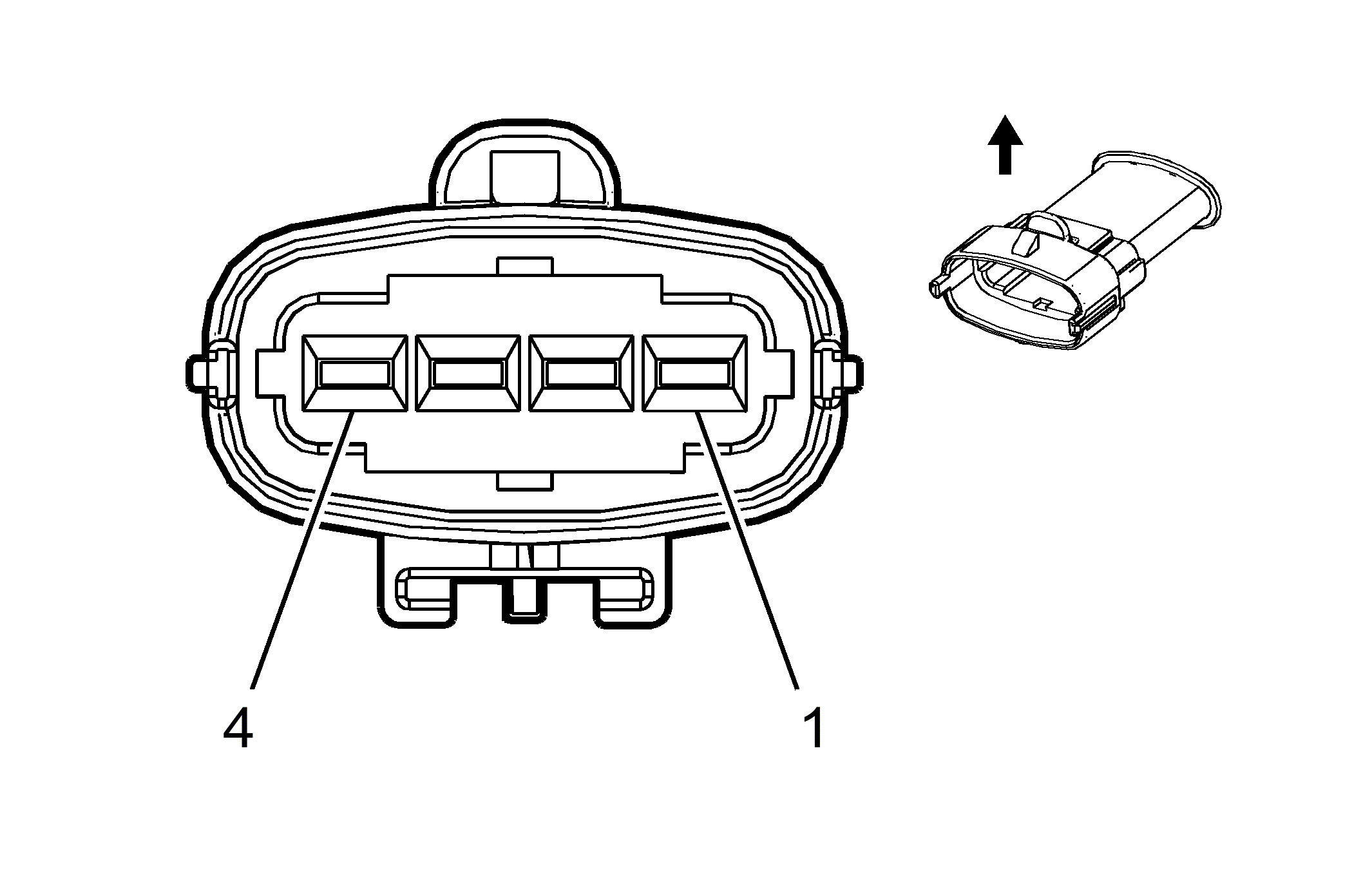

X111 Engine Harness to Glow Plug Harness (LUZ)
|
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 45.10821
- Service Connector: 13384349
- Description: 4-Way F 2.8 Series, Sealed (BK)
|

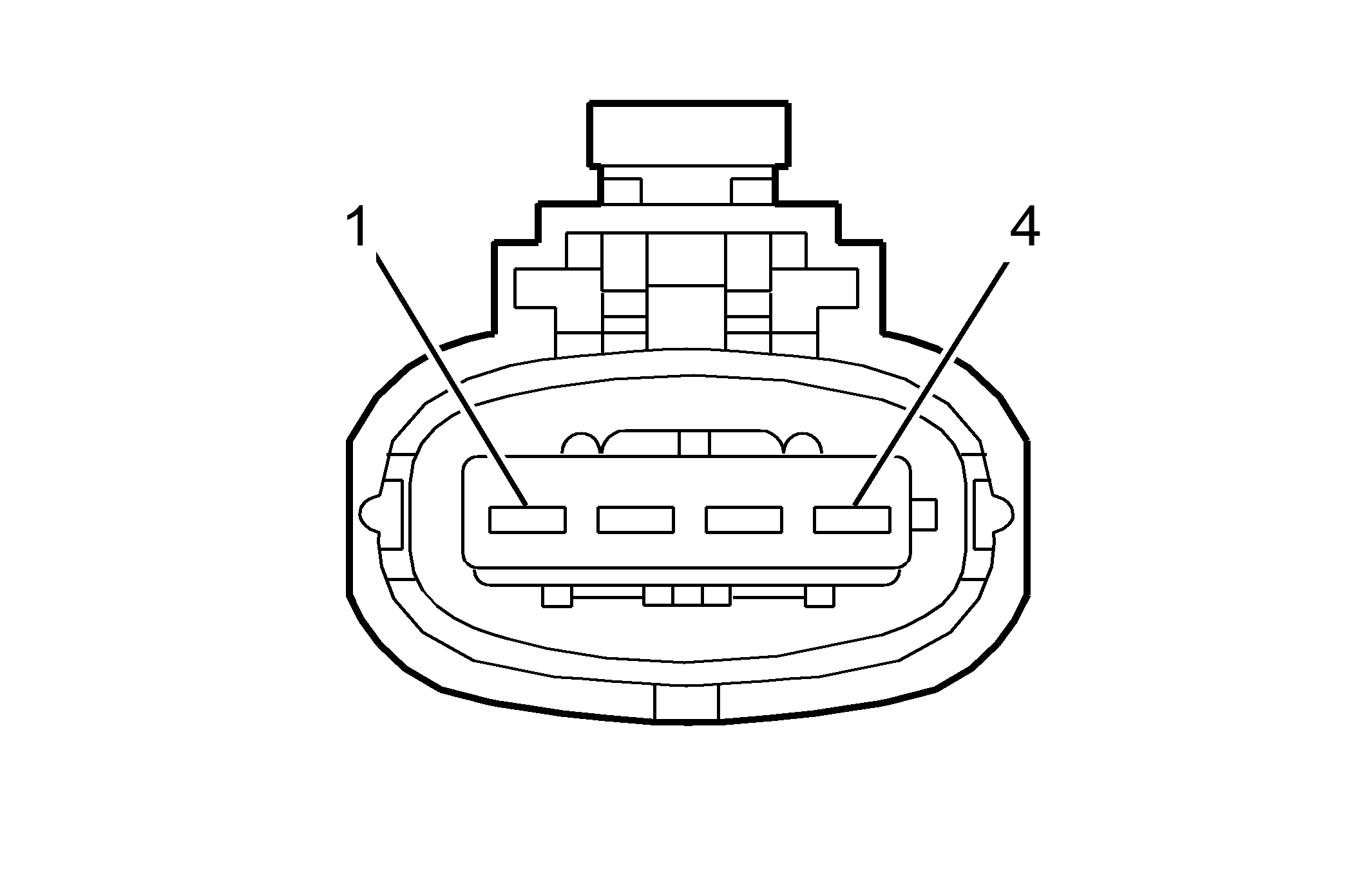

Connector Part Information
- Harness Type: Glow Plug
- OEM Connector: 45.10921
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 4-Way M 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY/BU |
1581 |
I |
- |
Glow Plug Control (1) |
1 |
2.5 |
GY/BU |
1581 |
II |
- |
| 2 |
2.5 |
GY/BN |
1582 |
I |
- |
Glow Plug Control (2) |
2 |
2.5 |
GY/BN |
1582 |
II |
- |
| 3 |
2.5 |
GY/GN |
1583 |
I |
- |
Glow Plug Control (3) |
3 |
2.5 |
GY/GN |
1583 |
II |
- |
| 4 |
2.5 |
GY/YE |
1584 |
I |
- |
Glow Plug Control (4) |
4 |
2.5 |
GY/YE |
1584 |
II |
- |
