X104 Engine Cooling Harness to Forward Lamp Harness
|
|
|

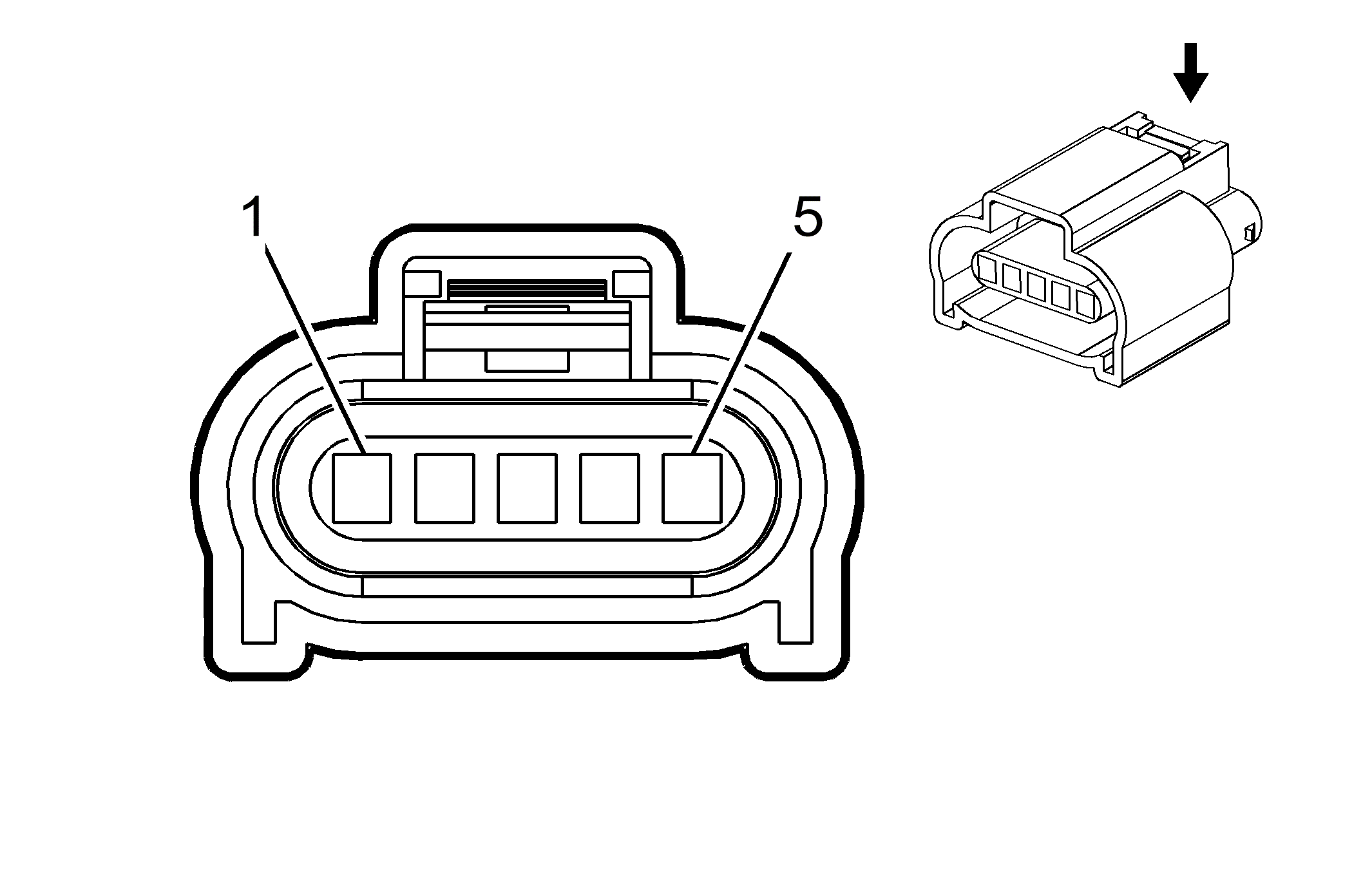

Connector Part Information
- Harness Type: Cooling Fan
- OEM Connector: 13652294
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 5-Way F 1.5 MCP Series, Sealed (BK)
|

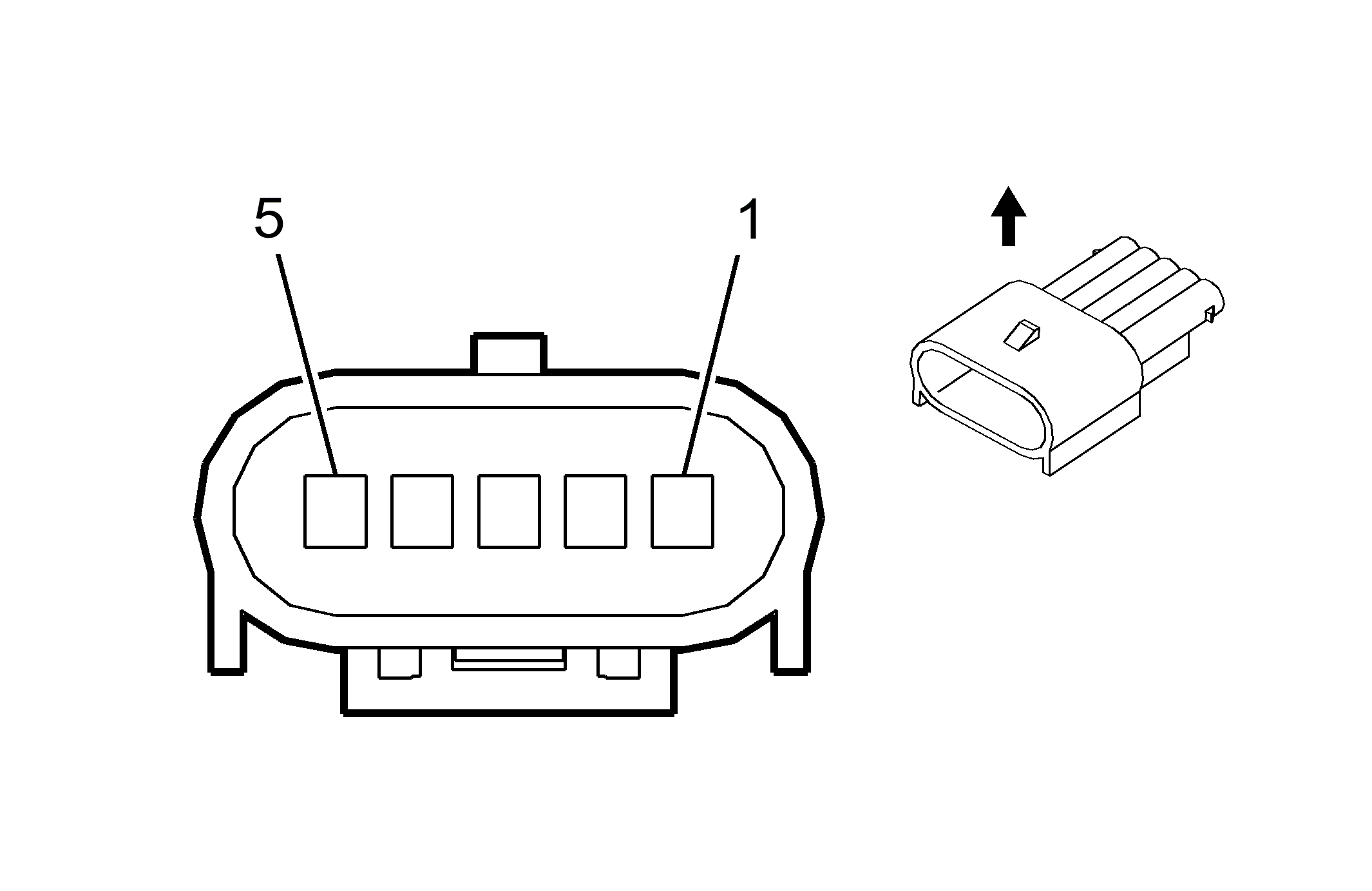

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13652293
- Service Connector: 13580975
- Description: 5-Way M 1.5 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-34 (YE) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN |
380 |
I |
- |
A/C Refrigerant Pressure Sensor Signal |
1 |
0.5 |
L-GN |
380 |
II |
- |
| 2 |
0.5 |
BN/RD |
2700 |
I |
- |
A/C Pressure Sensor 5 Volt Reference |
2 |
0.5 |
BN/RD |
2700 |
II |
- |
| 3 |
0.5 |
BK/BN |
5514 |
I |
- |
A/C Refrigerant Pressure Sensor Low Reference |
3 |
0.5 |
BK/YE |
5514 |
II |
- |
| 4 |
0.5 |
L-GN/VT |
2032 |
I |
- |
Coolant Temperature Sensor Signal |
4 |
0.5 |
L-GN/VT |
2032 |
II |
- |
| 5 |
0.5 |
BK/D-BU |
6813 |
I |
- |
Coolant Temperature Sensor 2 Low Reference |
5 |
0.5 |
BK/D-BU |
6813 |
II |
- |
