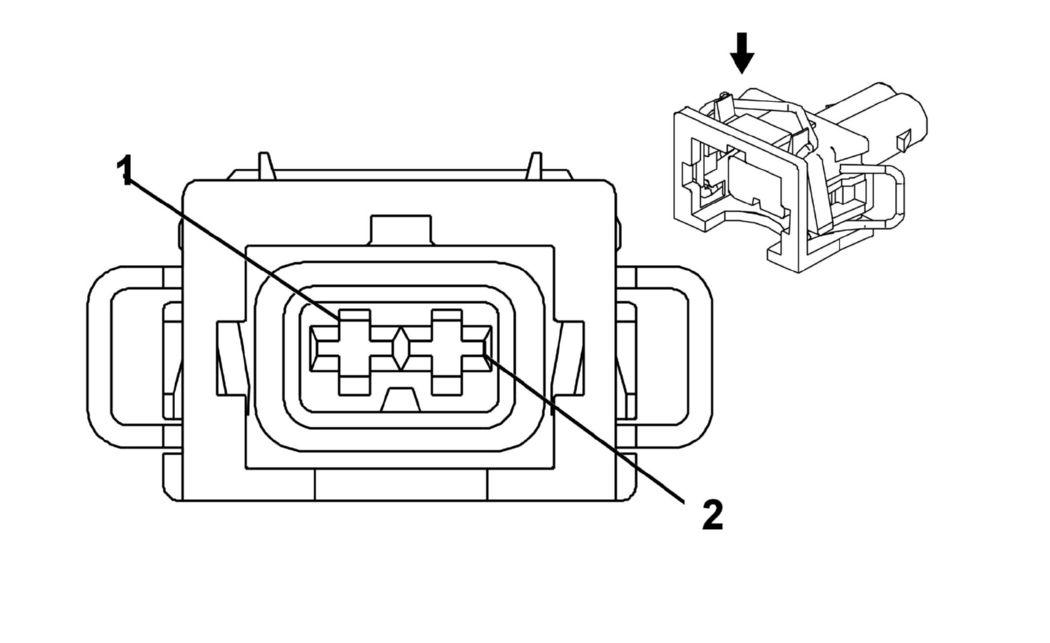

Q40 Turbocharger Bypass Solenoid Valve (LUV)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 1928401920
- Service Connector: 19119500
- Description: 2-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/YE |
3060 |
Turbo Bypass Solenoid Control Bank (1) |
I |
- |
| 2 |
0.5 |
RD/WH |
5293 |
Powertrain Main Relay Fused Supply (4) |
I |
- |
