Removal Procedure

  1. Remove front seat cushion cover (1) and pad (2) from frame (3). Refer to Front Seat Cushion Cover and Pad Replacement

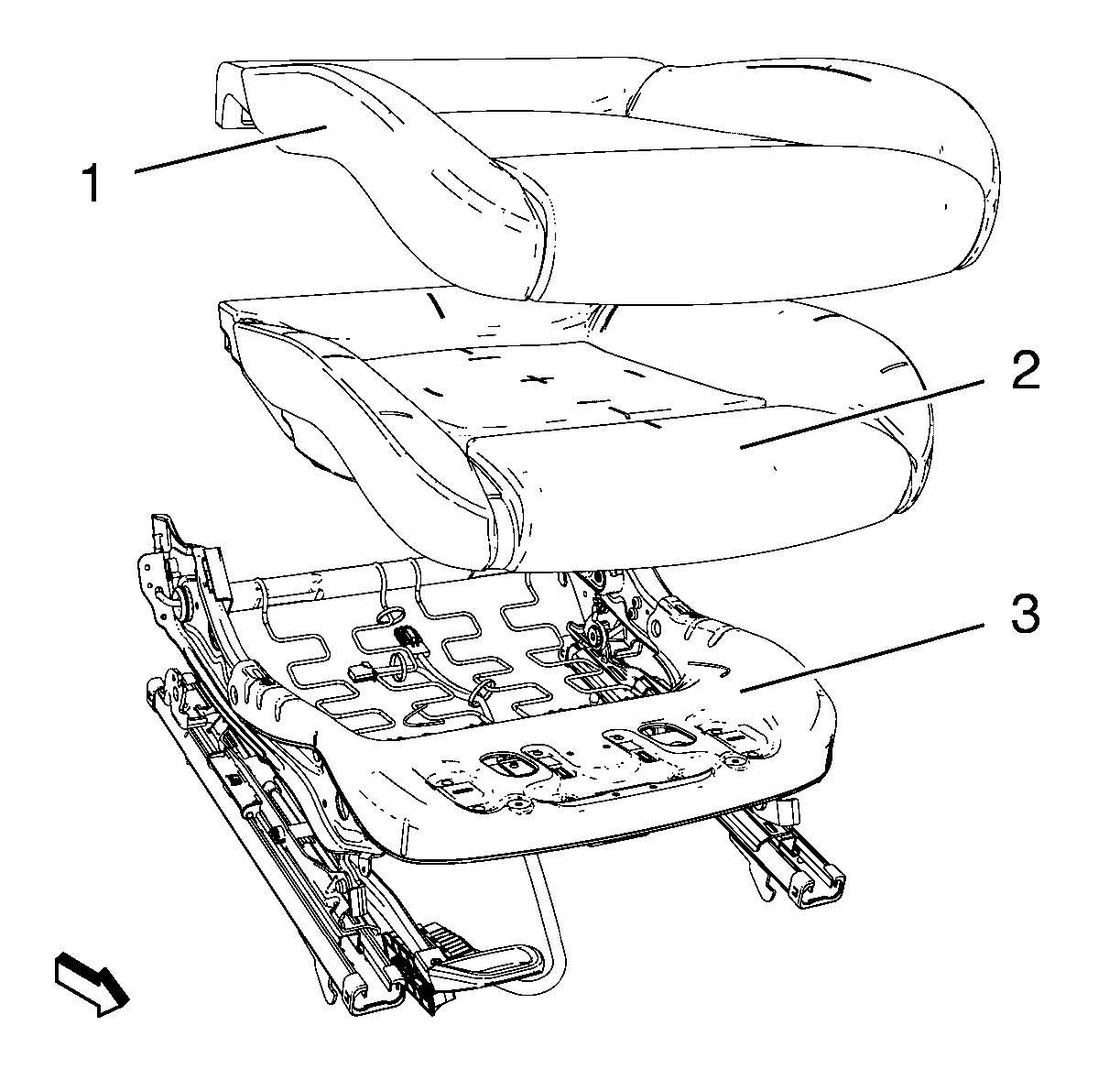

    Fig 1: Cushion Cover, Seat Frame And Pad
    GM2027611Courtesy of GENERAL MOTORS COMPANY
  2. Remove the wire harness (1), if equipped.

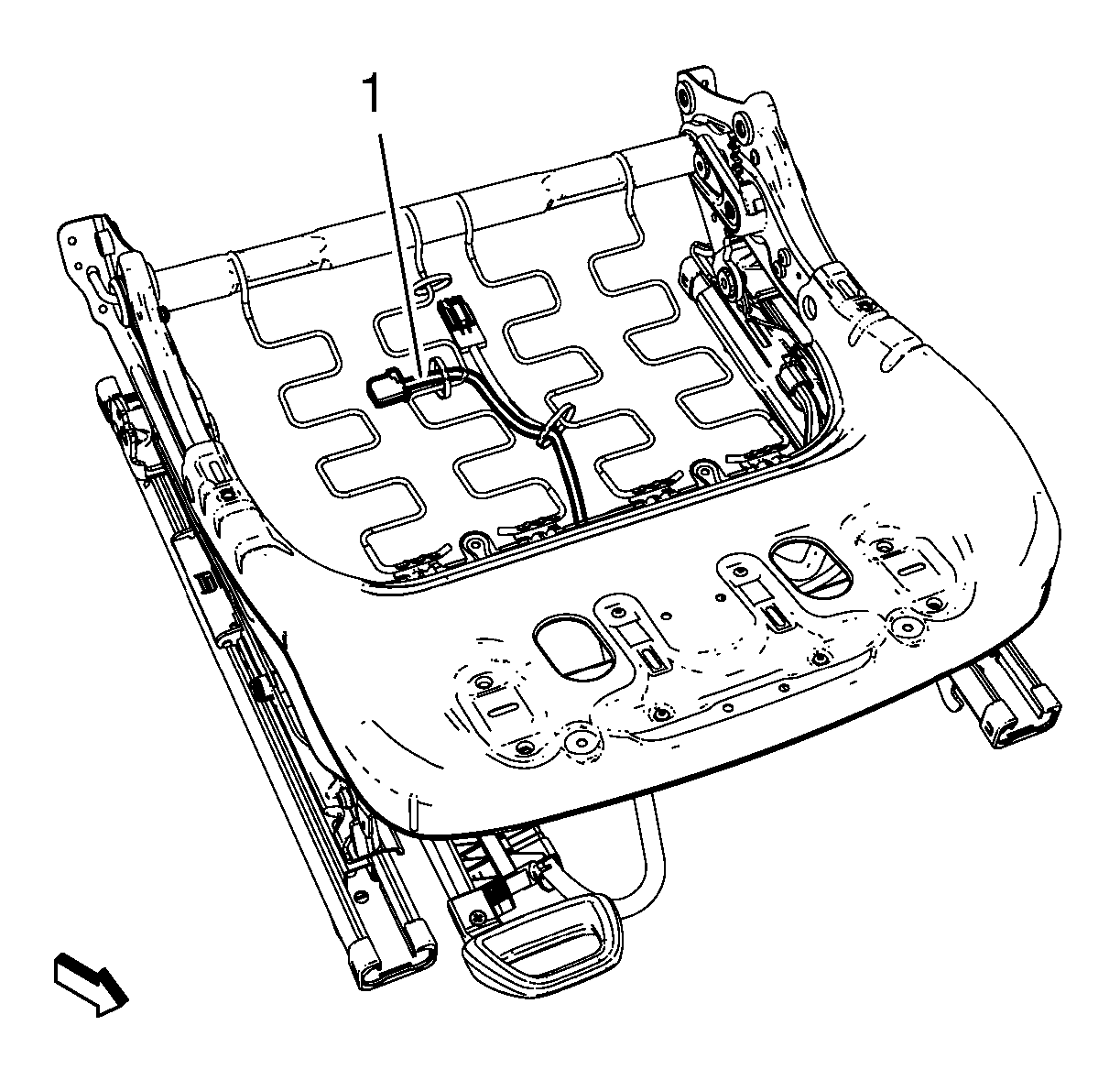

    Fig 2: Driver Seat Frame Wire Harness
    GM2027680Courtesy of GENERAL MOTORS COMPANY
  3. Remove front seat back cushion cover (1) and pad (2) from frame (3). Refer to Driver or Passenger Seat Back Cover and Pad Replacement

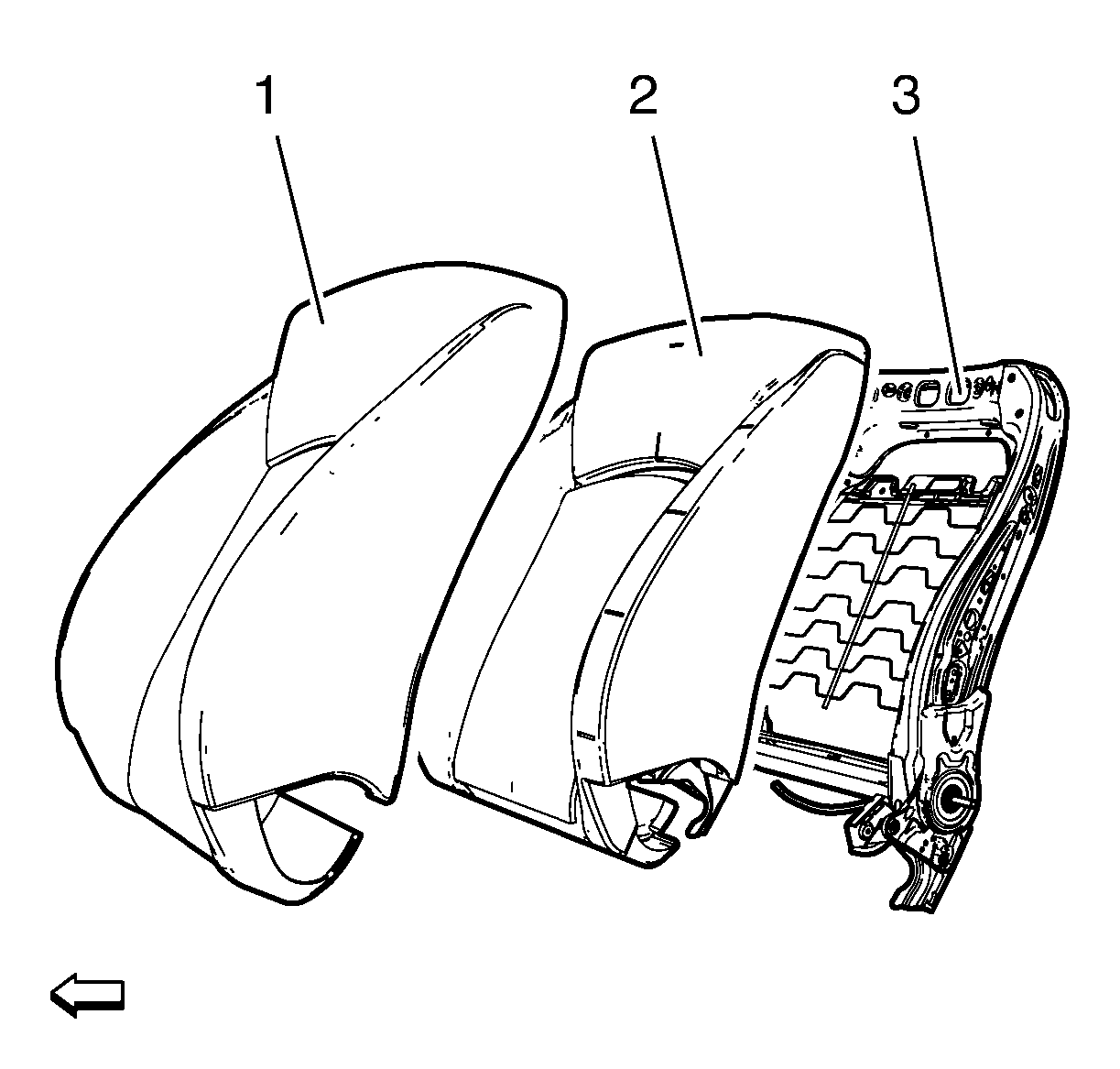

    Fig 3: Cushion Cover, Pad And Frame
    GM2027671Courtesy of GENERAL MOTORS COMPANY
  4. Remove inner seat frame cover (1).

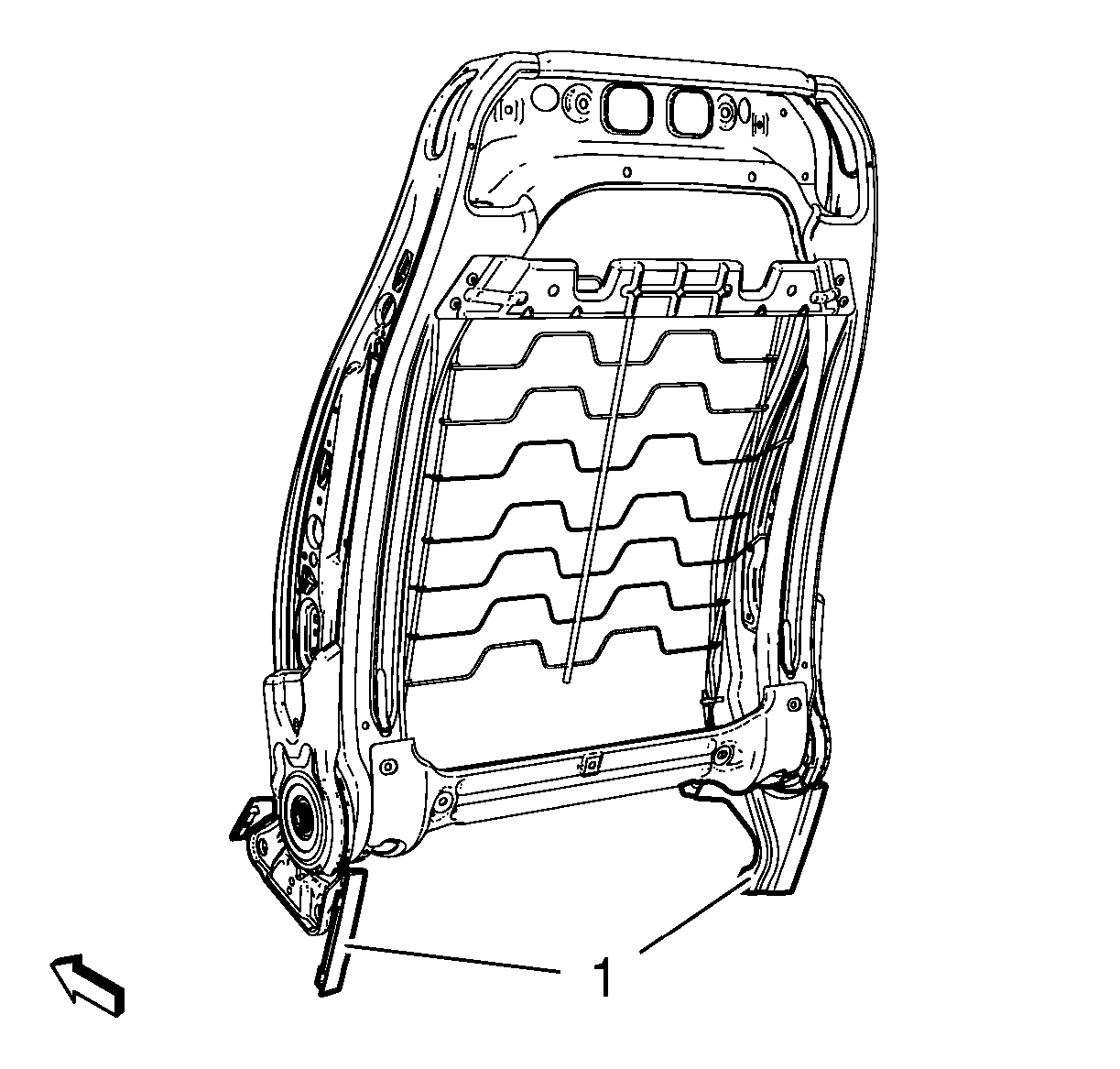

    Fig 4: Inner Seat Frame Cover
    GM2027676Courtesy of GENERAL MOTORS COMPANY
  5. Remove the wire harness, if equipped.
