Front Seat Back Recliner Handle Replacement

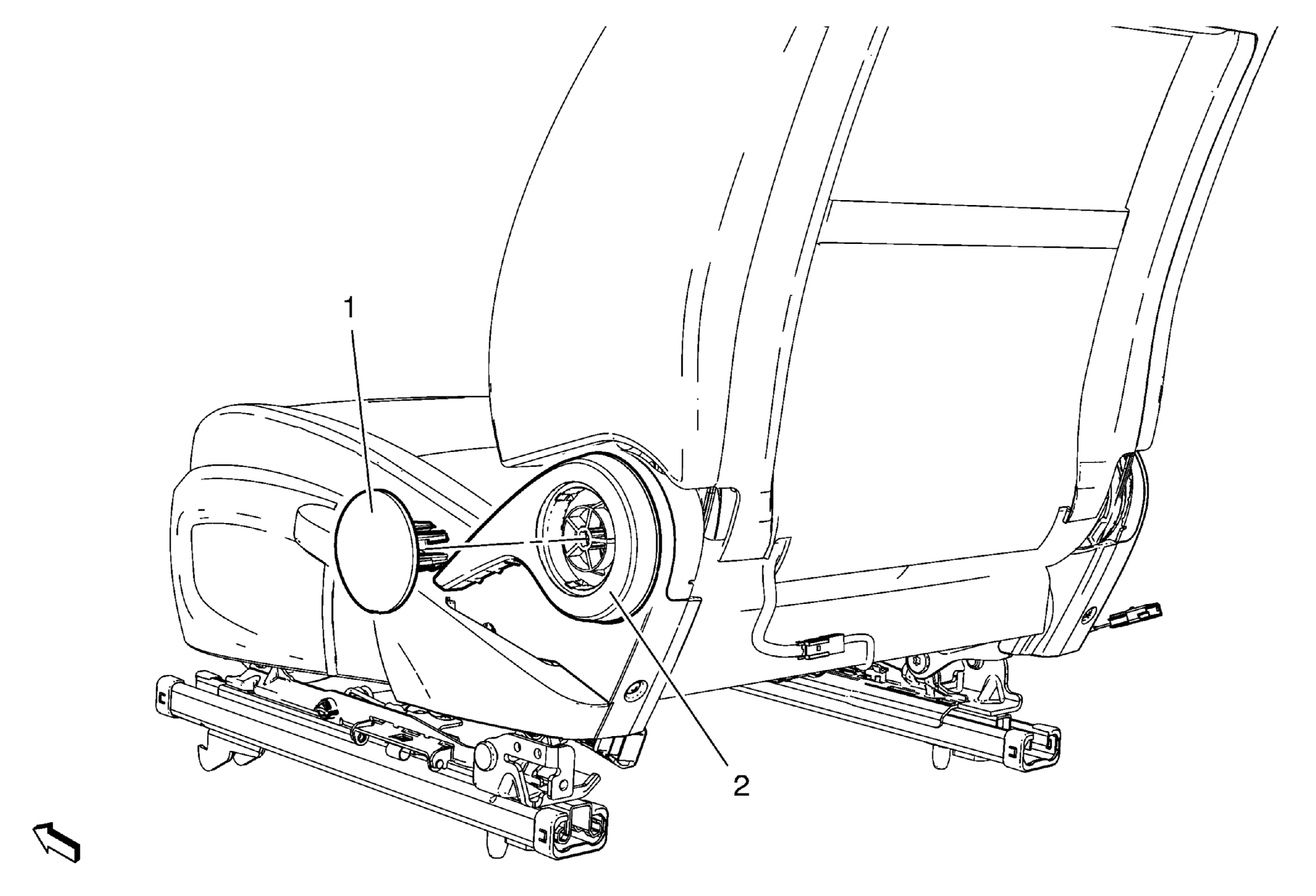

Fig 1: Driver Or Passenger Seat Recliner Handle
GM2027446Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Recliner Handle Panel
Procedure
Use flat blade to remove panel.
2 Front Seat Recliner Handle
Procedure
Use flat blade to remove handle.
