Airbag Sensing and Diagnostic Module Replacement

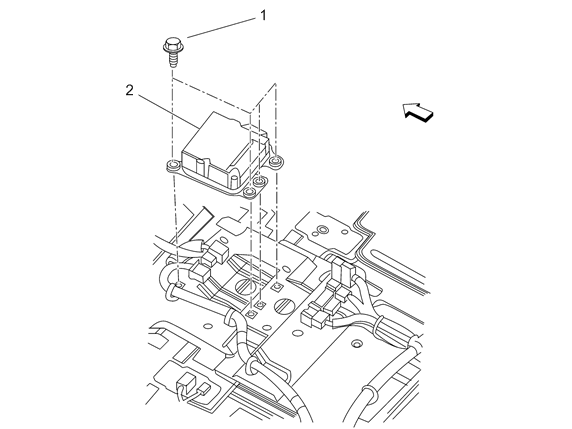

Fig 1: Airbag Sensing and Diagnostic Module Replacement Components With Torque Specifications
GM3937510Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Do not strike or jolt the inflatable restraint sensing and diagnostic module (SDM). Before applying power to the SDM, make sure that it is securely fastened with the arrow facing toward the front of the vehicle. Failure to observe the correct installation procedure could cause SIR deployment, personal injury, or unnecessary SIR system repairs.

WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. If a replacement module is installed, save current module specification. Control Module References
  3. Electrical Connector @ Front Seat Belt Retractor - Disconnect [4x] Driver or Passenger Seat Retractor Side Belt Replacement (Driver)Driver or Passenger Seat Retractor Side Belt Replacement (Passenger)
  4. Front Floor Console Replacement
1 Airbag Sensing and Diagnostic Module Assembly Bolt [4x]
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove and DISCARD
  2. Install a NEW nut.

Tighten
24 N.m (18 lb ft)
2 Airbag Sensing and Diagnostic Module Assembly

Procedure

  1. Electrical Connector - Disconnect
  2. If a replacement module is installed, program the module. Control Module References
