Engine Compartment

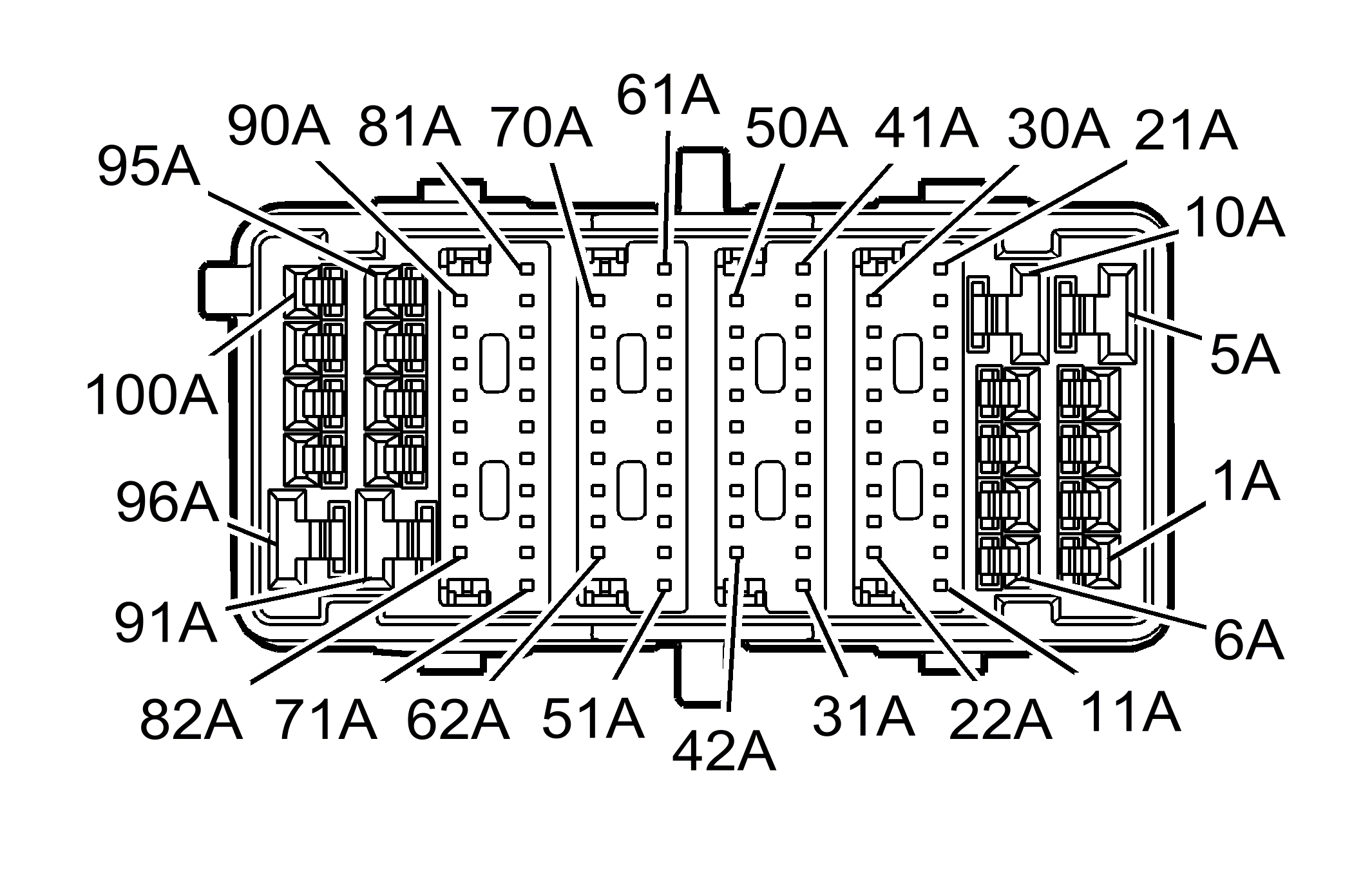

GM4095321

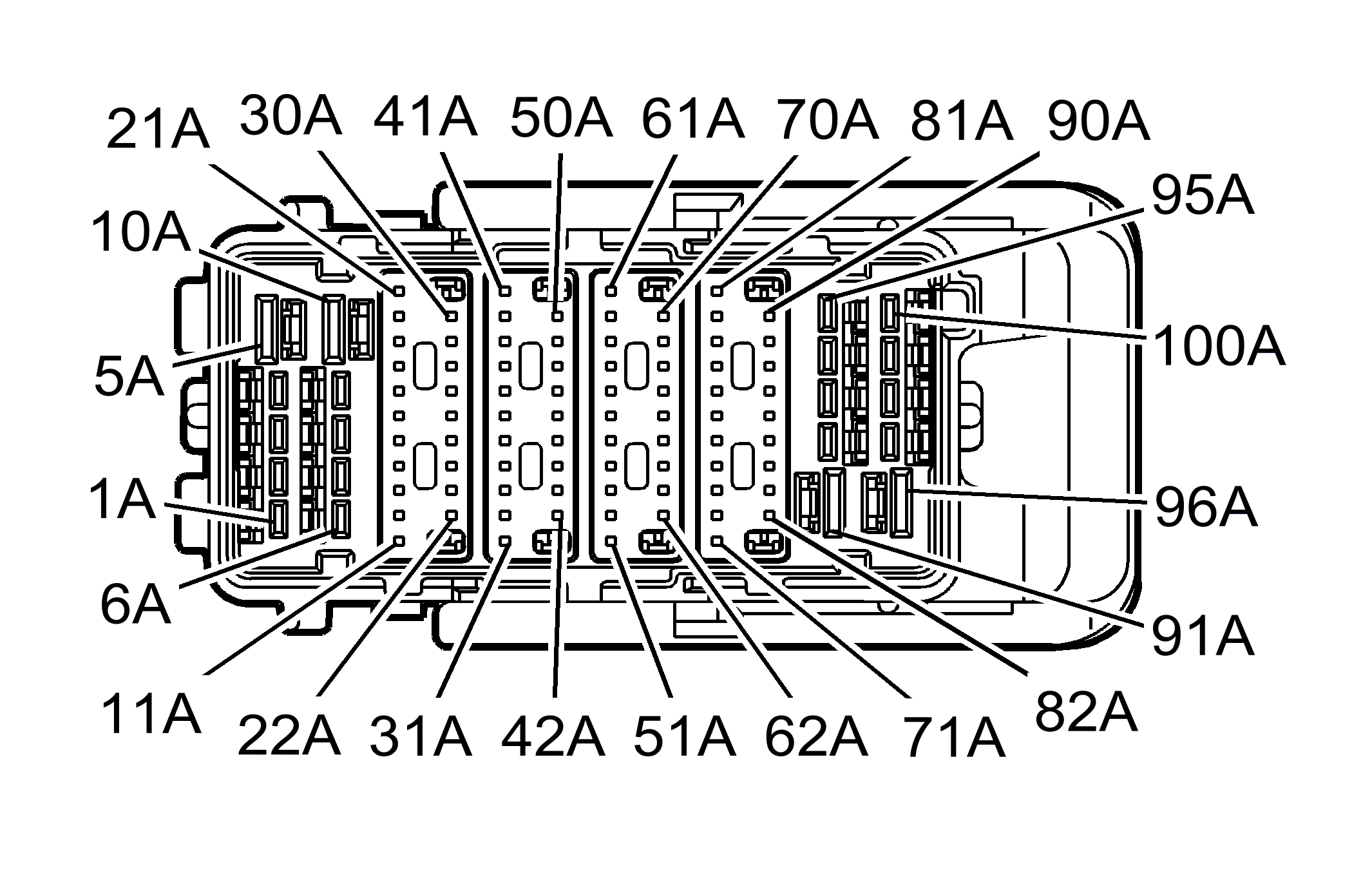

GM4095353
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: TH80FW-CS16 - TM4
  • Service Connector: Service by Harness
  • Description: 100-Way F (WH)
 Connector Part Information
  • Harness Type: Engine Compartment
  • OEM Connector: TH80MW-CS16 - TM4
  • Service Connector: Service by Harness
  • Description: 100-Way M (WH)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available Not Available Not Available Service by Harness Not Available Not Available Not Available
II Not Available Not Available Not Available Service by Harness Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1A - D-GN LR04 I - Backup Lamp Supply Voltage Signal 1A - D-GN LR04 II -
2A - YE AB40 I - Engine Controls Ignition Relay Supply Voltage 2A - YE AB40 II -
3A - RD PF01 I - Battery Positive Voltage 3A - RD PF01 II -
4A - D-GN AC20 I - Fuel Pump Relay Supply Voltage 4A - D-GN AC20 II -
5A - WH AH03 I - Crank Ignition Voltage 5A - WH AH03 II -
6A - OG AB41 I - EVAP Canister Vent Solenoid Control 6A - OG AB41 II -
7A - RD MH02 I - Horn Relay Control 7A - RD MH02 II -
8A - PU LT02 I - Tail Lamps Relay Supply Voltage 8A - PU LT02 II -
9A - - - - - Not Occupied 9A - - - - -
10A - BN NA01 I - Rear Defogger Relay Supply Voltage 10A - RD NA01 II -
11A - PK IA02 I - CAN Bus High Serial Data (-) 11A - PK IA02 II -
12A - D-BU IA01 I - CAN Bus High Serial Data (+) 12A - D-BU IA01 II -
13A - - - - - Not Occupied 13A - - - - -
14A - PU LD18 I - Left Turn Signal Lamp Supply Voltage 14A - PU LD18 II -
15A - WH LD17 I - Right Turn Signal Lamp Supply Voltage 15A - WH LD17 II -
16A - D-BU AB43 I - Fuel Temperature Signal 16A - D-BU AB43 II -
17A - - - - - Not Occupied 17A - - - - -
18A - BN MP05 I - Left Front Tire Pressure Receiver Low Reference 18A - BN MP05 II -
19A - L-GN MP04 I - Left Front Tire Pressure Receiver Supply Voltage 19A - L-GN MP04 II -
20A - RD MP03 I - Left Front Tire Pressure Receiver Signal 20A - RD MP03 II -
21A - WH MP02 I - Left Front Tire Pressure Receiver Serial Data 21A - WH MP02 II -
22A-23A - - - - - Not Occupied 22A-23A - - - - -
24A - D-GN WB01 I - Windshield Washer Fluid Level Sensor Signal 24A - D-GN WB01 II -
25A - GY AC69 I - K-Line Diagnostic Serial Data 25A - L-BU AC69 II -
26A - OG DA37 I - Run/Crank Ignition Voltage 26A - OG DA37 II -
27A - GY MP09 I - Right Front Tire Pressure Receiver Low Reference 27A - GY MP09 II -
28A - VT MP08 I - Right Front Tire Pressure Receiver Supply Voltage 28A - VT MP08 II -
29A - D-GN MP07 I - Right Front Tire Pressure Receiver Signal 29A - D-GN MP07 II -
30A - BN MP06 I - Right Front Tire Pressure Receiver Serial Data 30A - BN MP06 II -
31A - L-GN MA62 I - Outside Ambient Temperature Sensor Low Reference 31A - L-GN MA62 II -
32A - GY MA61 I - Outside Ambient Air Temperature Sensor Signal 32A - VT MA61 II -
33A - D-GN MA10 I - Charge Indicator Control 33A - D-GN MA10 II -
34A - BN MA06 I - Brake Fluid Level Sensor Signal 34A - BN MA06 II -
35A - BK AC82 I - Sensor Low Reference 35A - BK AC82 II -
36A - L-GN AC81 I - EVAP Emission Pressure Sensor Signal 36A - L-GN AC81 II -
37A - BN AC80 I - Sensor 5 Volt Reference 37A - BN AC80 II -
38A - BK CAE1 I - Cruise Control Switch Low Reference 38A - BK CAE1 II -
39A - PK CA03 I - Cruise Control Set/Coast/Resume/Accelerate Switch Signal 39A - PK CA03 II -
40A - GN FC04 I - Stop Lamp Switch Signal 40A - GN FC04 II -
41A - WH FC03 I - Run/Crank Ignition Voltage 41A - WH FC03 II -
42A - RD BS31 I - Wheel Speed Sensor Signal Left Rear 42A - RD BS31 II -
43A - WH BS30 I - Wheel Speed Sensor Low Reference Left Rear 43A - WH BS30 II -
44A - GY BS29 I - Wheel Speed Sensor Signal Right Rear 44A - PU BS29 II -
45A - D-BU BS28 I - Wheel Speed Sensor Low Reference Right Rear- 45A - BU BS28 II -
46A - PU BS43 I - Ignition Main Relay Supply Voltage 46A - PU BS43 II -
47A - D-GN BS41 I - Traction Control Off Switch Signal 47A - D-GN BS41 II -
48A - WH BS47 I - CAN Bus High Serial Data (+) 48A - WH BS47 II -
49A - PK BS45 I - CAN Bus High Serial Data (-) 49A - PK BS45 II -
50A - WH CA01 I - Run/Crank Ignition Voltage 50A - WH CA01 II -
51A-70A - - - - - Not Occupied 51A-70A - - - - -
71A - WH FB04 I - Middle Front Impact Sensing Module Signal 71A - WH FB04 II -
72A - BK FB05 I - Middle Front Impact Sensing Module Low Reference 72A - BK FB05 II -
73A-81A - - - - - Not Occupied 73A-81A - - - - -
82A - BK FE01 I - Ground 82A - BK FE01 II -
83A-90A - - - - - Not Occupied 83A-90A - - - - -
91A - YE DA09 I - Battery Positive Voltage 91A - YE DA09 II -
92A - D-BU LS01 I - Battery Positive Voltage 92A - D-BU LS01 II -
93A - RD LS02 I - Stop Lamp Supply Voltage 93A - RD LS02 II -
94A - - - - - Not Occupied 94A - - - - -
95A - RD RA01 I - Battery Positive Voltage 95A - RD RA01 II -
96A - D-BU DA11 I - Battery Positive Voltage 96A - D-BU DA11 II -
97A-98A - - - - - Not Occupied 97A-98A - - - - -
99A - YE WA12 I - Windshield Washer Pump Control 99A - YE WA12 II -
100A - D-GN WA11 I - Run/Crank Ignition Voltage 100A - D-GN WA11 II -
