Transmission Fluid Cooler Pipe Replacement - Differential Oil Cooler Outlet Hose/Pipe to Rear Transmission Cooler Pipe (LS7)

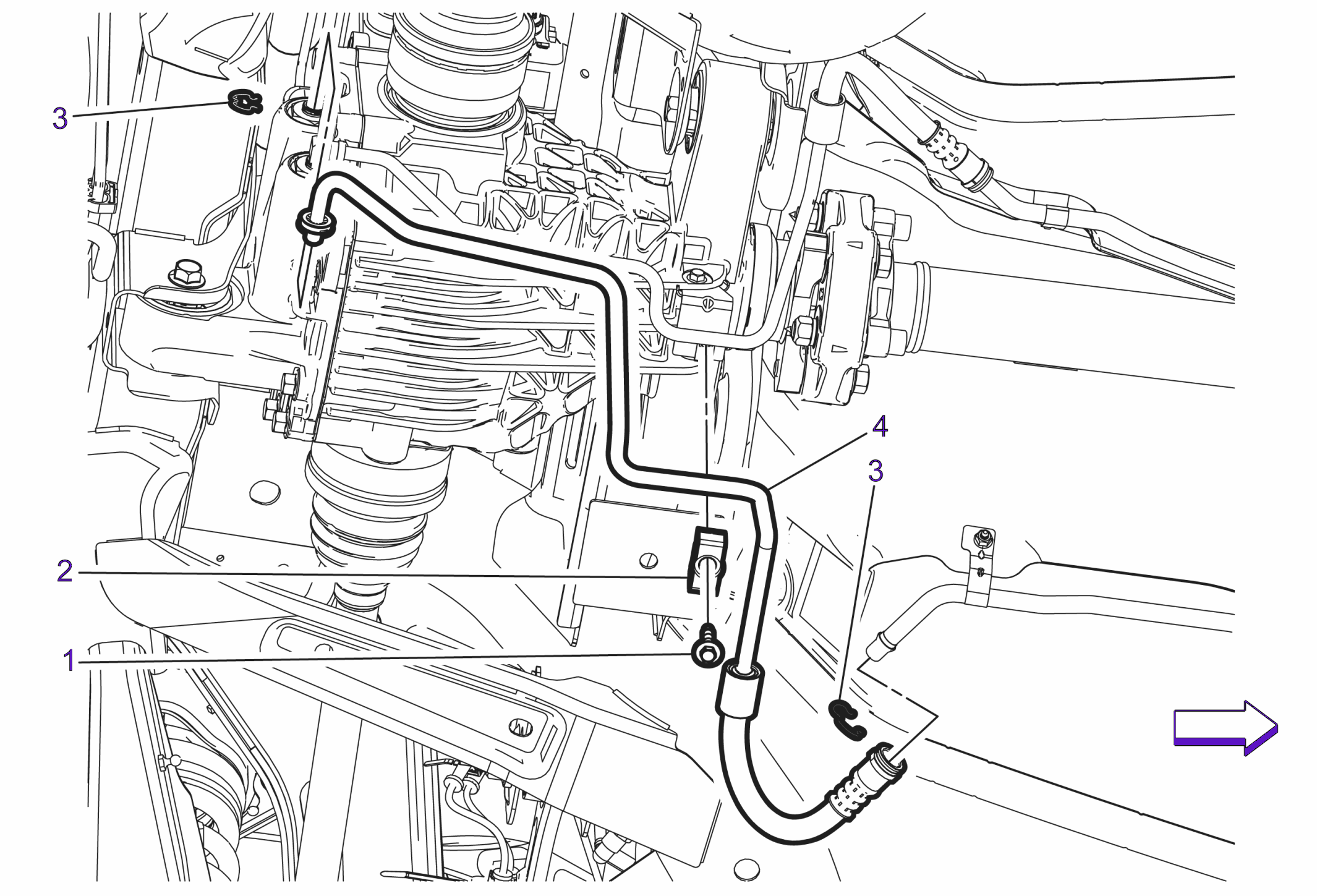

Fig 1: Transmission Fluid Cooler Pipe - Differential Oil Cooler Outlet Hose/Pipe to Rear Transmission Cooler Pipe (LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Place a drain pan under the transmission fluid cooler pipe. Cap the fittings and plug the holes when removing the transmission fluid cooler pipe.
1	Transmission Fluid Cooler Pipe Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Transmission Fluid Cooler Pipe Bracket
3	Transmission Fluid Cooler Pipe Quick Disconnect Connect Retainer (Qty: 2) Procedure Disconnect the quick connect fittings from the transmission fluid cooler pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
4	Transmission Fluid Cooler Pipe-Differential Oil Cooler Outlet Hose/Pipe to Rear Transmission Cooler Pipe Procedure Check the transmission fluid level and fill the transmission to the proper level. Refer to Transmission Fluid Level and Condition Check . Check transmission hoses and pipes for leaks.
