Transmission Fluid Cooler Pipe Replacement - Differential Oil Cooler Inlet Hose/Pipe to Rear Transmission Cooler Pipe (LSA)

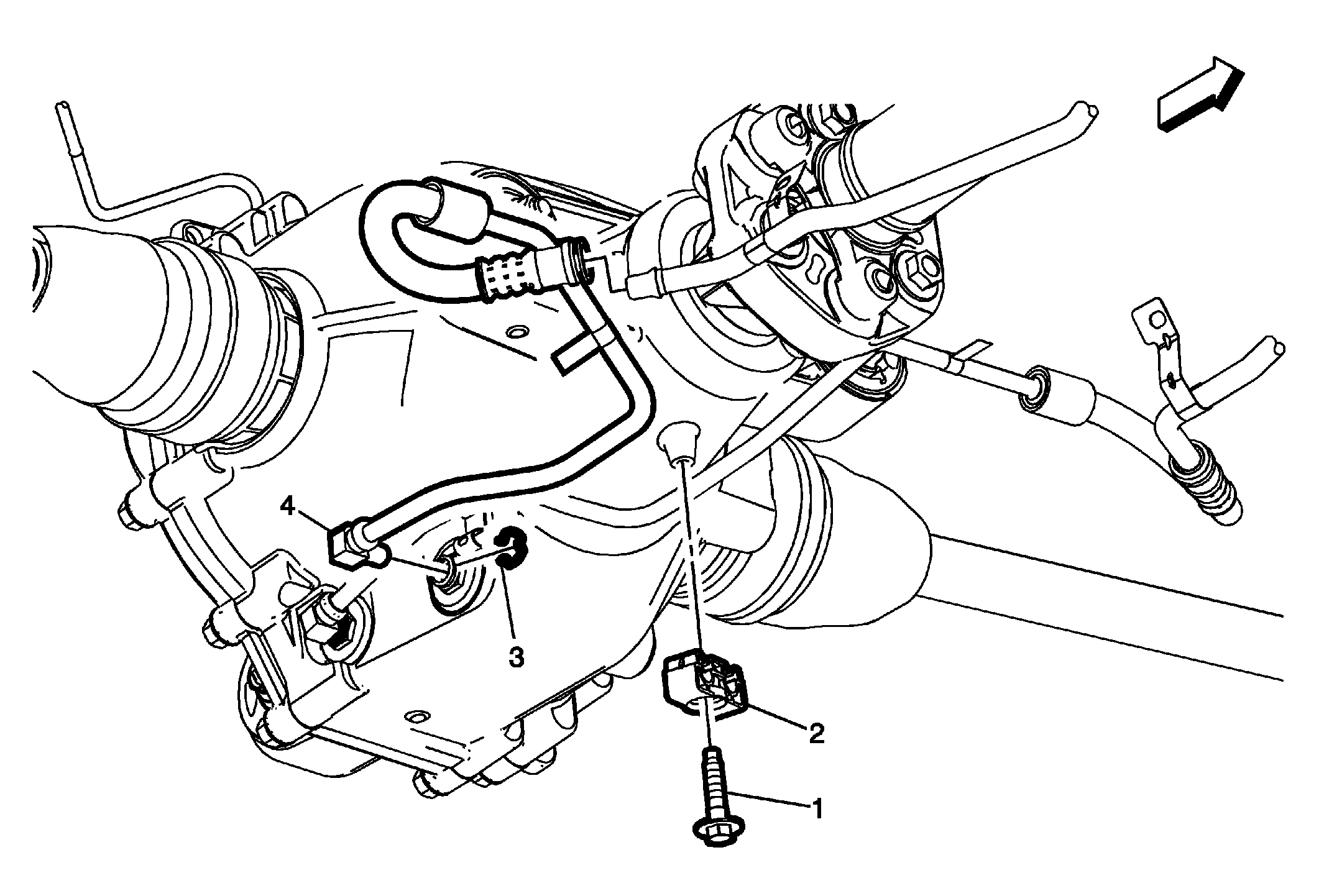

Fig 1: Differential Oil Cooler Inlet Hose/Pipe to Rear Transmission Cooler Pipe (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Place a drain pan under the differential oil cooler inlet hose. Cap the fittings and plug the holes when removing the differential oil cooler inlet hose.
1	Transmission Fluid Auxiliary Cooler Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Transmission Fluid Auxiliary Cooler Bracket
3	Quick Disconnect Connect Retainer
4	Differential Oil Cooler Inlet Hose to Rear Transmission Cooler Pipe Procedure Disconnect the quick connect fittings from the differential oil cooler inlet hose. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection . Check the transmission fluid level and fill the transmission to the proper level. Refer to Transmission Fluid Level and Condition Check . Check transmission hoses and pipes for leaks.
