Special Tools
| Illustration | Tool Number/Description |
|---|---|
| DT 3289-20 J 3289-20 Holding Fixture Base Assembly |
|
| DT 8763-B J 8763-B Holding Fixture |
|
| DT 23129 J 23129 Universal Seal Remover |
|
| DT 35512 J 35512 Inner Pinion Bearing Installer |
|
| DT 36850 Transjel Lubricant |
|
| DT 38416-B J 38416-B Harmonic Balancer Remover |
|
| DT 38693 J 38693 Seal Installer |
|
| DT 38734 J 38734 Intermediate Spring Compressor Adapter |
|
| DT 41623-B J 41623-B KM 41623-B Cooler Quick Connect Tool |
|
| DT 43074 J 43074 Clutch Spring Compressor |
|
| DT 45012 J 45012 Holding Fixture |
|
| DT 45096 J 45096 Transmission Oil Cooling System Flush and Flow Test Tool |
|
| DT 45096-30 J 45096-30 Transmission Cooler Flush Adapter |
|
| DT 45096-40 J 45096-40 Transflow Oil Fill Adapter |
|
| DT 45124 J 45124 Remover Bridge |
|
| DT 45126 J 45126 Snap Ring Pliers |
|
| DT 45201 J 45201 Cooler Line Seal Remover |
|
| DT 46664 J 46664 Pump Cover Alignment Tool |
|
| DT 47605 Holding Fixture Adapter |
|
| DT 47715 Electrical Connector Passage Sleeve Remover/Installer |
|
| DT 47731 1/2 Inch Quick Connect Release Tool |
|
| DT 47761 Clutch Spring Compressor |
|
| DT 47768-1 Seal Protector |
|
| DT 47768-2 Seal Pusher |
|
| DT 47768-3 Seal Sizer |
|
| DT 47770 Seal Installer |
|
| DT 47773 Snap Ring Pliers Adapter Set |
|
| DT 47778-1 Low Clutch Sprag Retaining Ring Cone |
|
| DT 47778-2 Low Clutch Sprag Retaining Ring Pusher |
|
| DT 47779 Clutch Spring Compressor |
|
| DT 47780 Low Clutch Sprag Seal Cone |
|
| DT 47781 C1234 and 35R Clutch Assembly Installer |
|
| DT 47782-1 Retaining Ring Cone |
|
| DT 47782-2 Retaining Ring Installer |
|
| DT 47784 Transmission Fluid Fill Pan Adapter |
|
| DT 47786 Output Carrier/Shaft Lifting Tool |
|
| DT 47825 Control Solenoid Test Plate |
|
| DT 47825-10 Jumper Harness |
|
| DT 47848 Seal Installer |
|
| DT 47857 Bearing Installer |
|
| DT 47865 Bearing Remover |
|
| DT 47866 Bearing Installer |
|
| DT 47867 Adjustable Clutch Spring Compressor |
|
| DT 47868-1 Pack Travel Weight |
|
| DT 47868-4 Clutch Travel Weight Adapter |
|
| DT 47868-2 Magnetic Base Adapter |
|
| DT-47868-3 Clutch Travel Weight Adapter |
|
| DT 48065 Clutch Spring Compressor |
|
| DT 48066-1A Seal Sizer |
|
| DT 48066-2 Seal Pusher |
|
| DT 48066-3 Seal Protector |
|
| DT 48067 Holding Fixture Adapter |
|
| DT 48068-1 Low Clutch Sprag Retaining Ring Cone |
|
| DT 48068-2 Low Clutch Sprag Retaining Ring Pusher |
|
| DT 48069 Clutch Spring Compressor |
|
| DT 48070 Low Clutch Sprag Seal Cone |
|
| DT 48222 Bearing Installer |
|
| DT 48285 Valve Body Torx Plus Socket |
|
| DT-48989 Holding Fixture |
|
| DT-49122 Low Clutch Spring Compressor Adapter |
|
| DT 49291 Clutch Travel Air Passage Plug Kit |
|

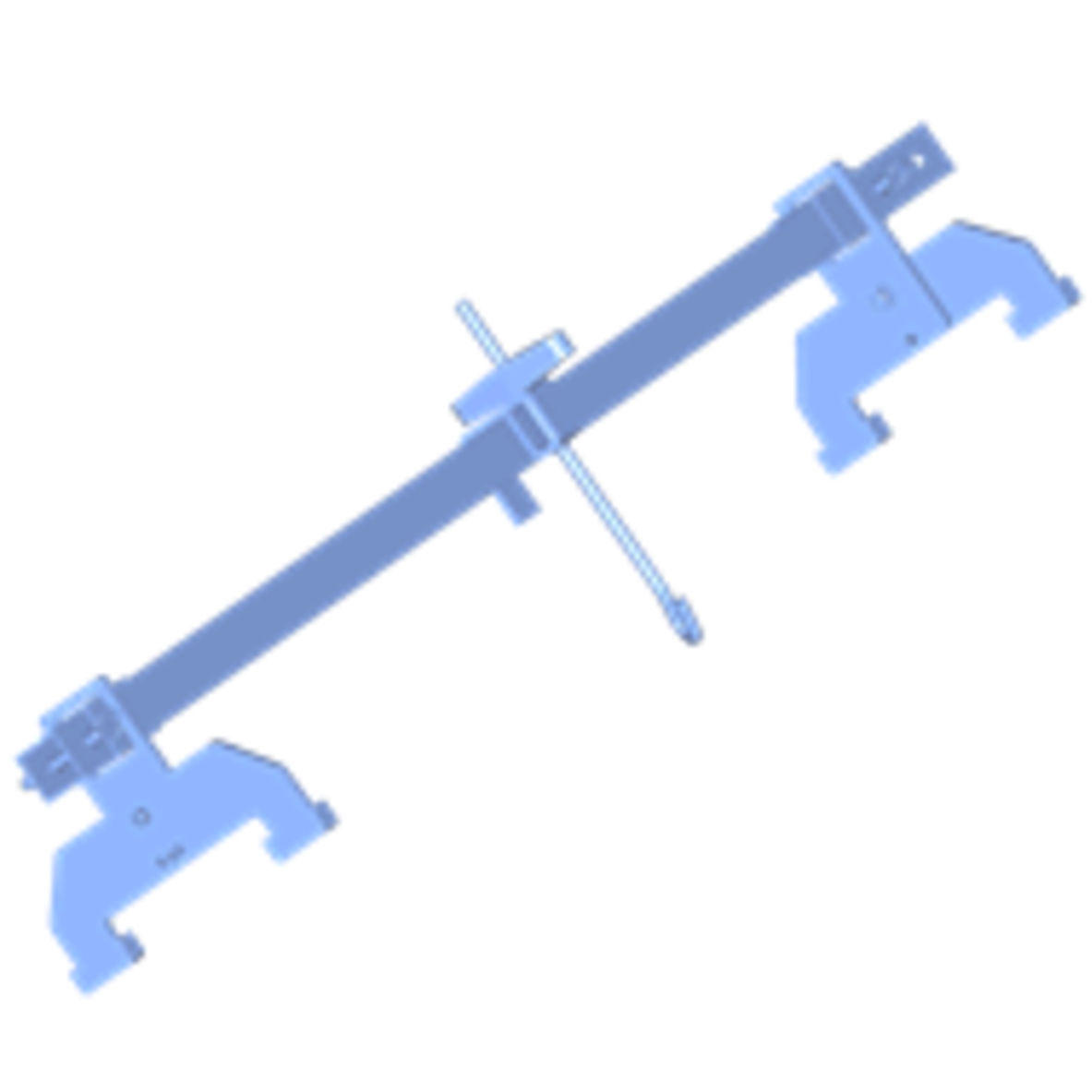

| EN 28467-700 EN 47649 X-0206951 Engine Bridge Tool |
|
| GE 6125-B J 6125-B Slide Hammer |
|
| GE 8001 J 8001 Dial Indicator Set |
|
| GE 8092 J 8092 Driver Handle |
|
| GE 21867 J 21867 Pressure Gauge |
|
| GE 26900-13 J 26900-13 Magnetic Base |
|
| EL 38522 J 38522 Variable Signal Generator |
|
| EN 37212 J 37212 Front Output Shaft Seal Installer |
|
| EN 38869 J 38869 Output Shaft Seal Installer |
|
| EN 42183 J 42183 Driver Handle |
|
| EN 45000 J 45000 Seal Remover |
