Fuel Injection Fuel Feed Hose Replacement (Except LS7)

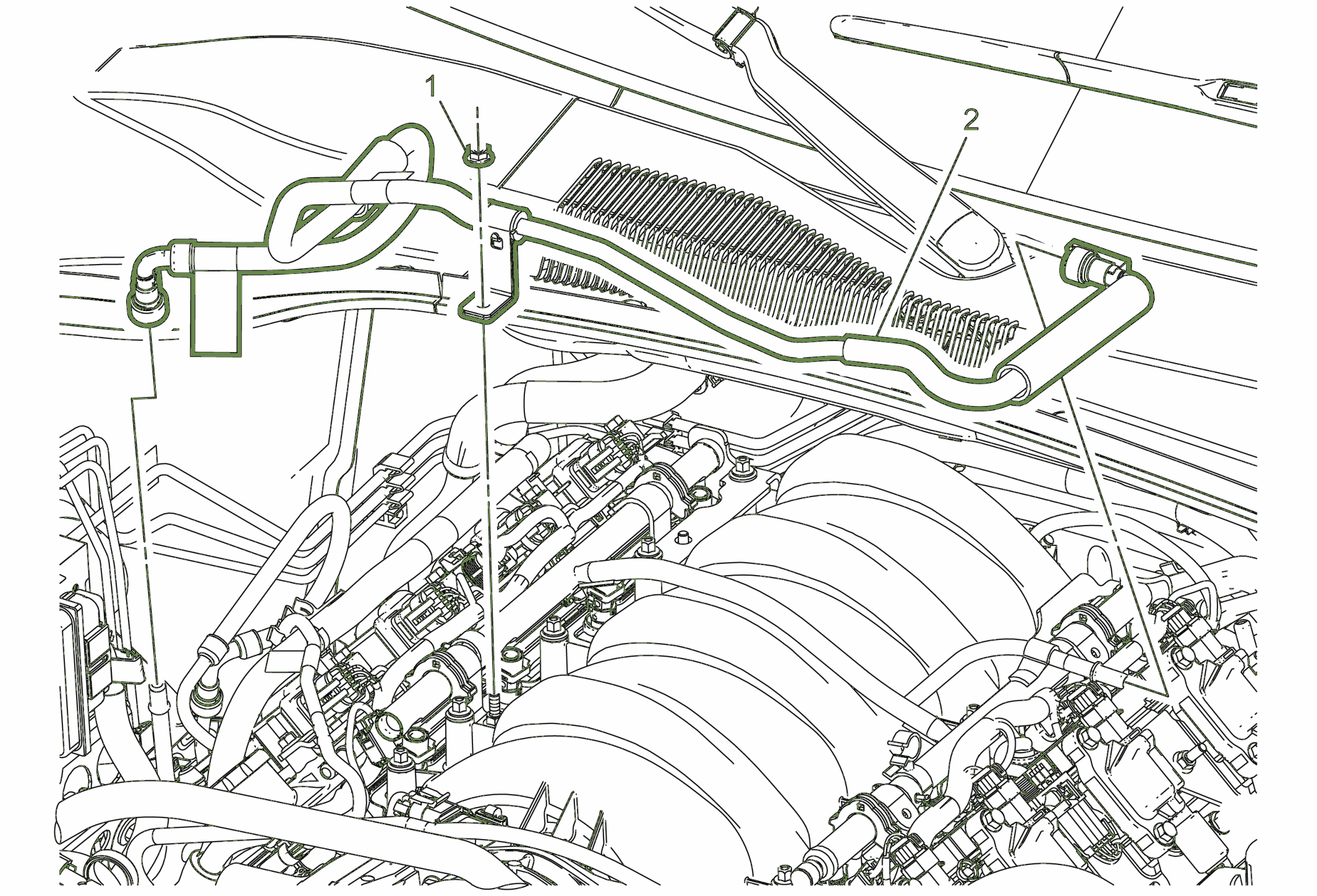

Fig 1: Fuel Injection Fuel Feed Hose (Except LS7)
GM3653617Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Remove the front end sheet metal cross brace. Refer to Front End Sheet Metal Cross Brace Replacement .
  2. Remove the engine cover. Refer to Engine Cover Replacement .
  3. Remove the Positive Crankcase Ventilation Hose. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air)Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air) .
  4. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
1 Fuel Injection Fuel Feed Hose Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Fuel Injection Fuel Feed Hose
Procedure
Disconnect the quick connect fittings. Refer to Metal Collar Quick Connect Fitting Service .
