Evaporative Emission Line Replacement - Engine

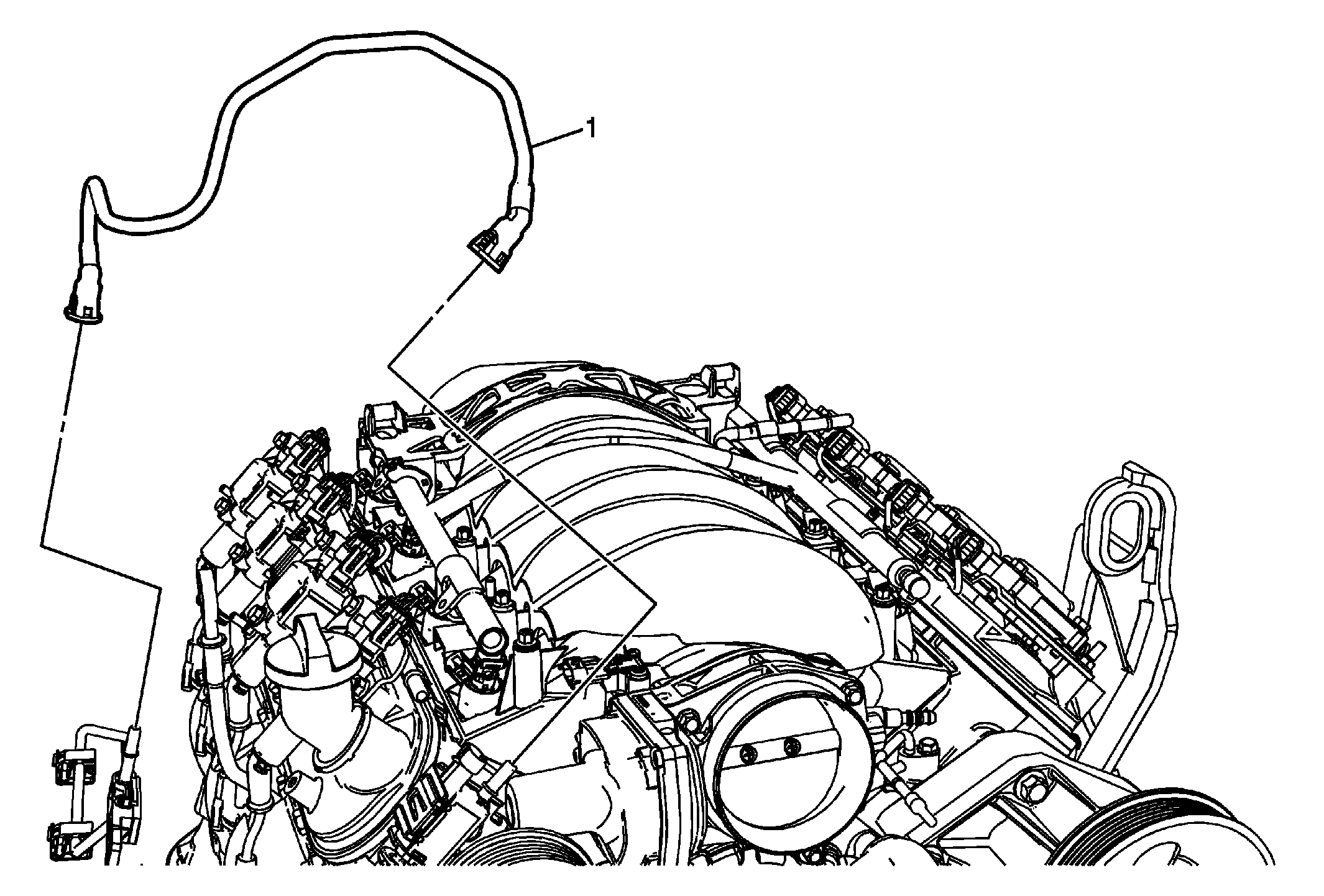

Fig 1: Evaporative Emission Line - Engine
GM2197458Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the engine cover. Refer to Engine Cover Replacement .
  2. Disconnect the quick connects. Refer to Plastic Collar Quick Connect Fitting Service , and Metal Collar Quick Connect Fitting Service .
1 Evaporative Emission Line- Engine Compartment
