Intake Manifold Cover Replacement (Right Side)

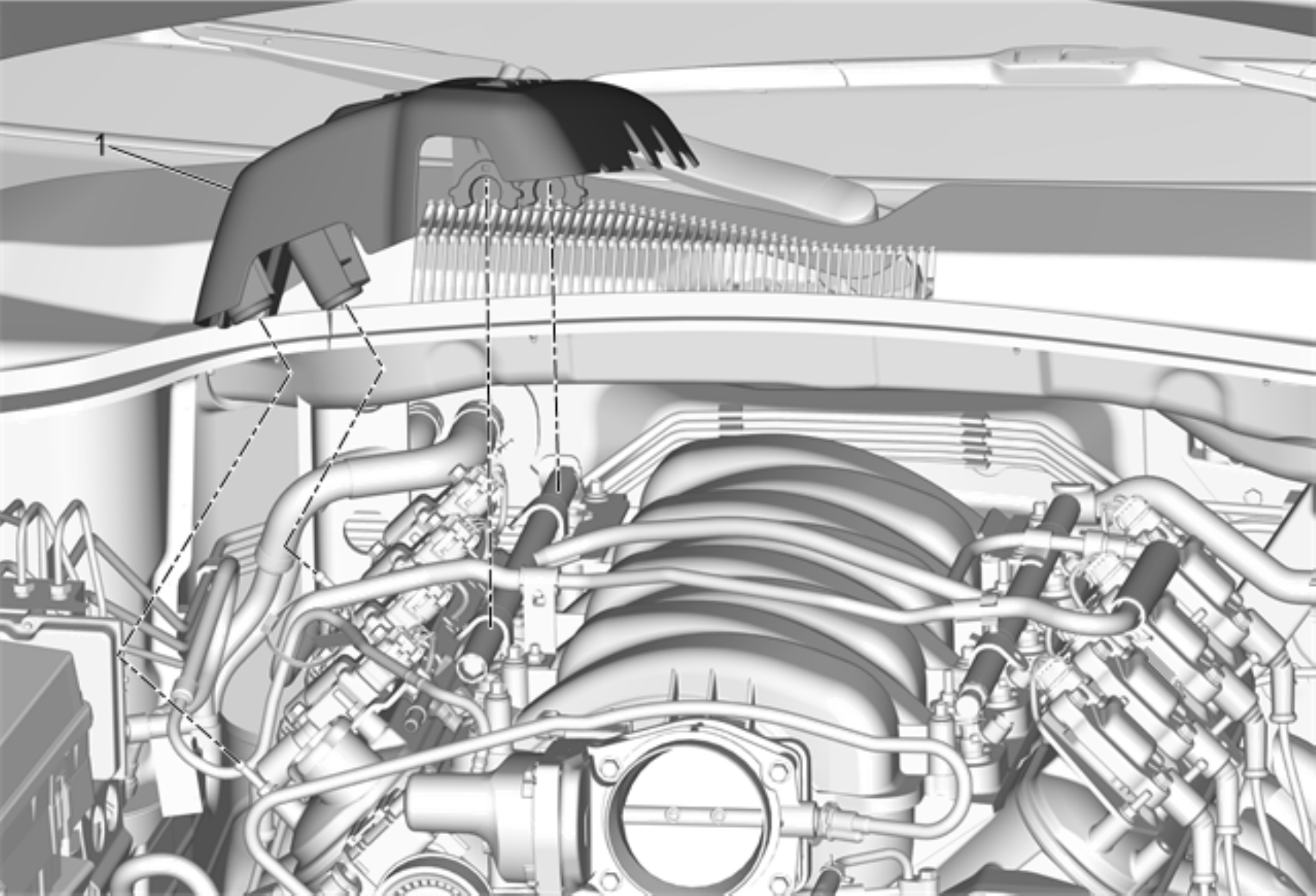

Fig 1: Intake Manifold Cover (Right Side)
GM3672128Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover
Procedure
Grasp the intake manifold cover and lift up disengaging the grommets from the studs.
