Intake Manifold Cover Replacement (Left Side)

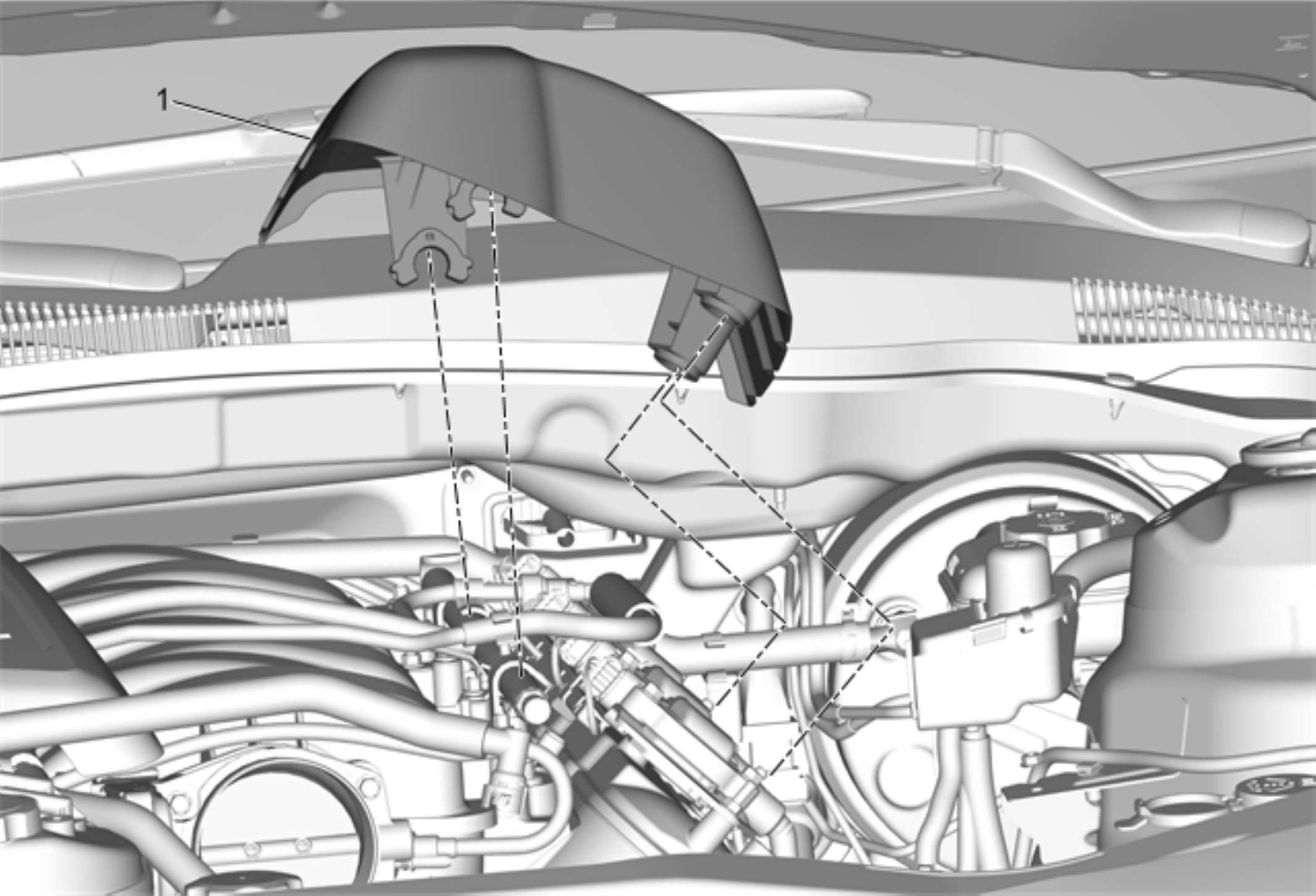

Fig 1: Intake Manifold Cover (Left Side)
GM3671947Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover
Procedure
Grasp the intake manifold cover and lift up disengaging the grommets from the studs.
