Drive Belt Replacement - Accessory (L99, LS3)

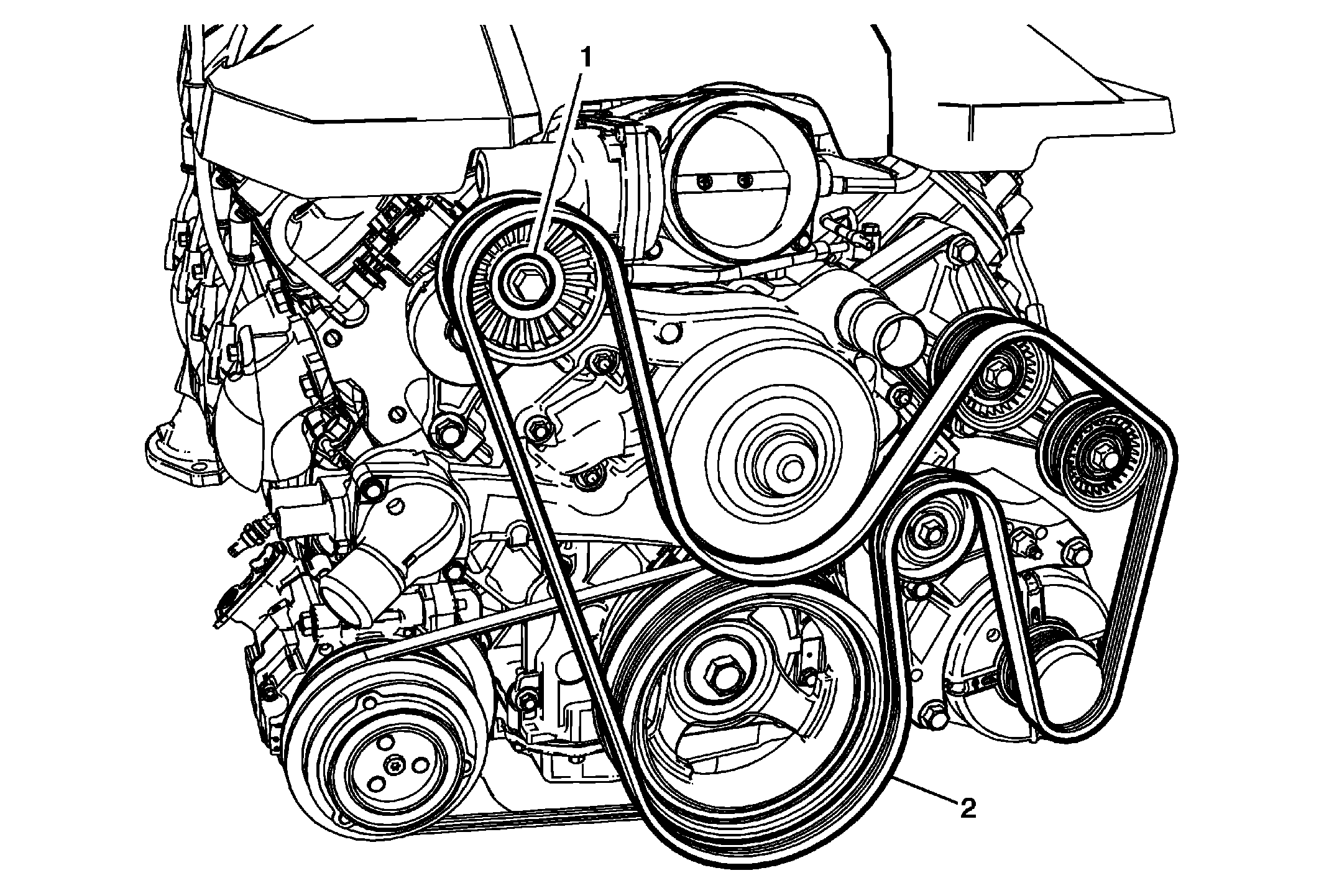

Fig 1: Drive Belt Routing - Accessory (L99, LS3)
GM3617579Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (L99, LS3) .
1 Drive Belt Tensioner

Procedure

  1. Use the proper tool to rotate the drive belt tensioner.
  2. Remove the drive belt from the pulleys and tensioner.
2 Drive Belt

Procedure

  1. Clean and inspect the drive belt surfaces of all the pulleys.
  2. Inspect the drive belt for correct alignment.
