Underbody Brace Replacement (Coupe and Convertible)

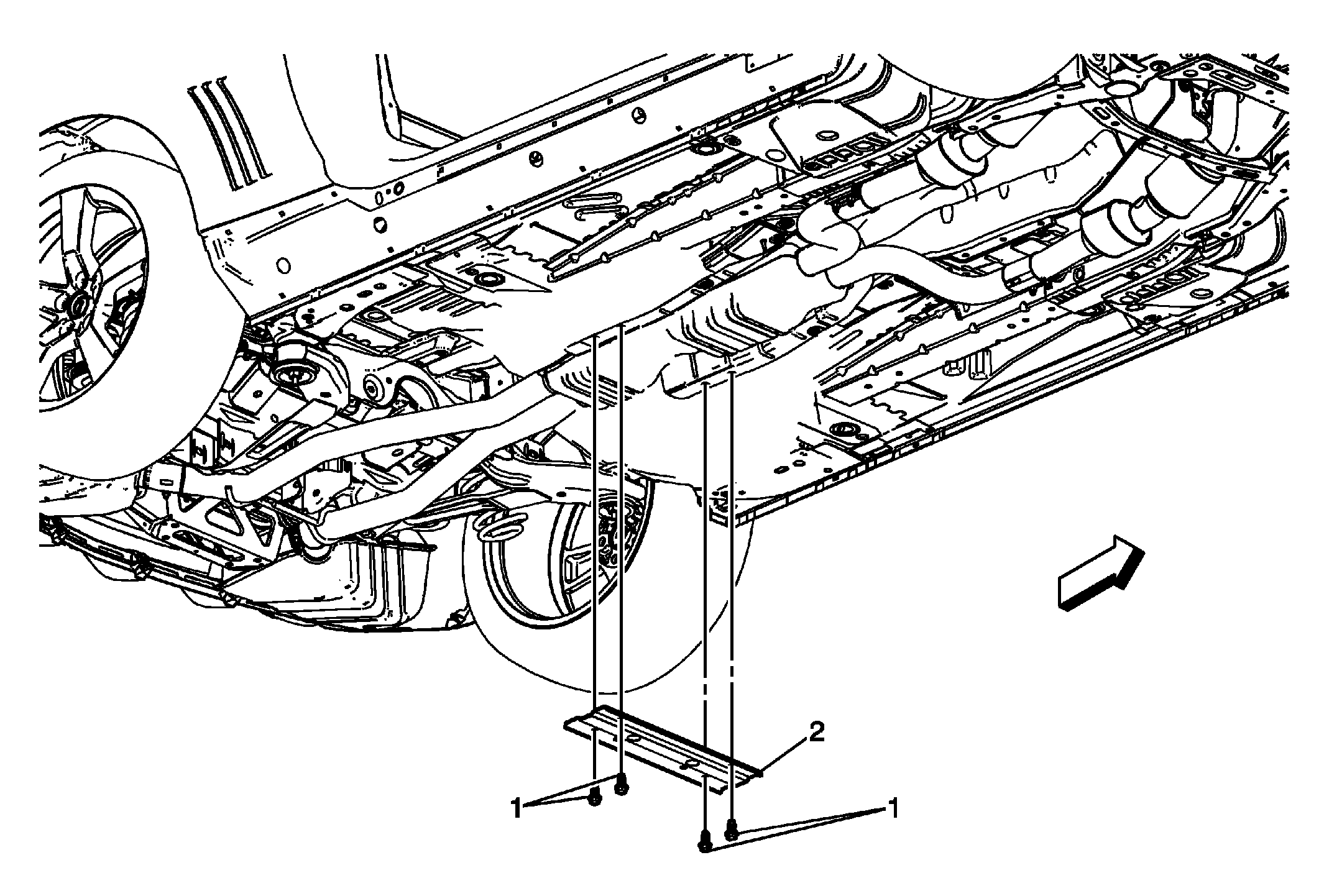

Fig 1: Underbody Brace And Bolts (Coupe and Convertible)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Underbody Brace Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  58 N.m (43 lb ft)
2	Underbody Brace
