Underbody Brace Replacement (Convertible Only)

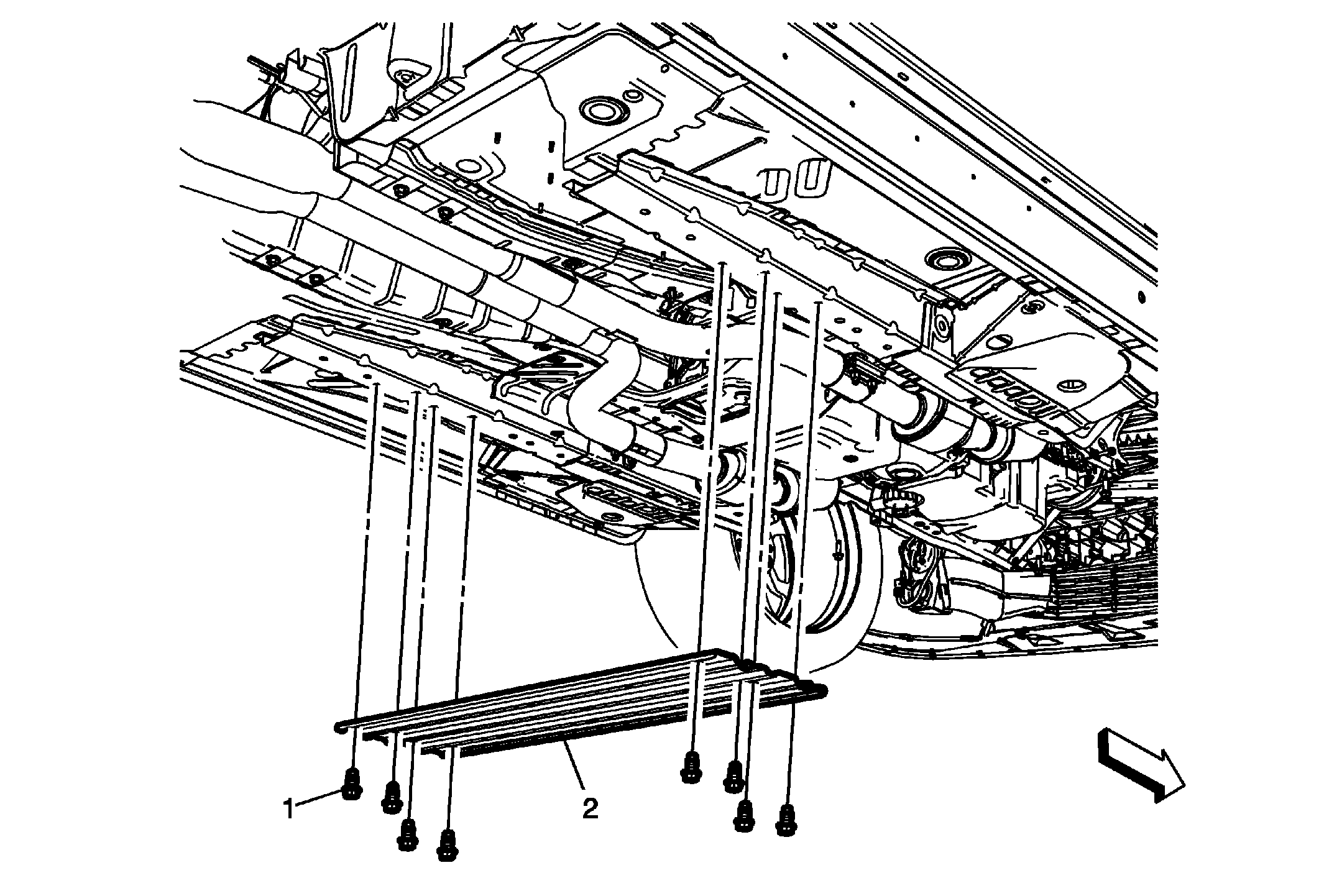

Fig 1: Underbody Brace & Fasteners (Convertible Only)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Underbody Brace Fastener (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten  58 N.m (43 lb ft)
2	Underbody Brace
