Front Intake Air Duct Replacement

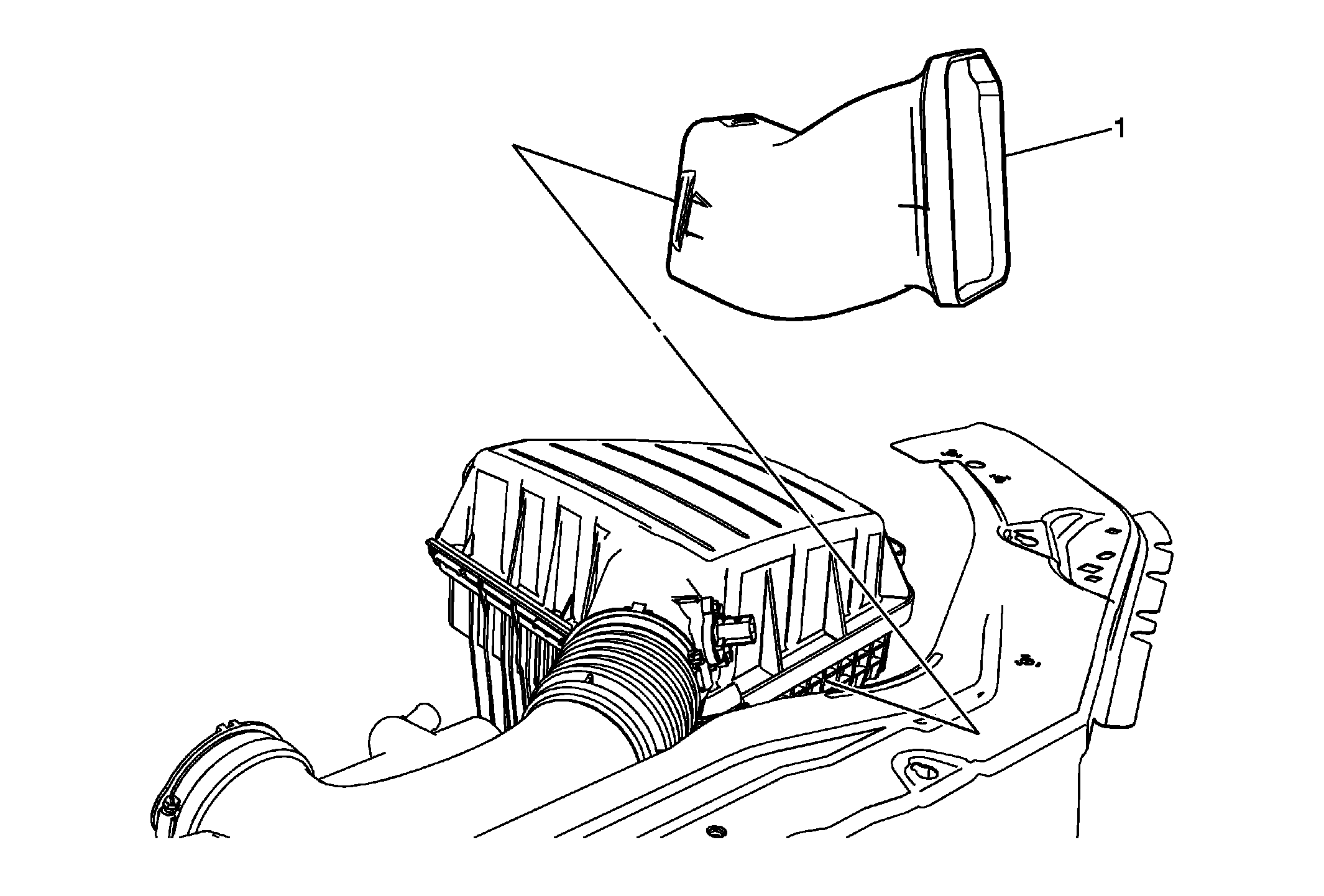

Fig 1: Front Intake Air Duct
GM2193564Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement
1 Front Intake Air Duct
