Camshaft Position Sensor Wire Replacement (LS7)

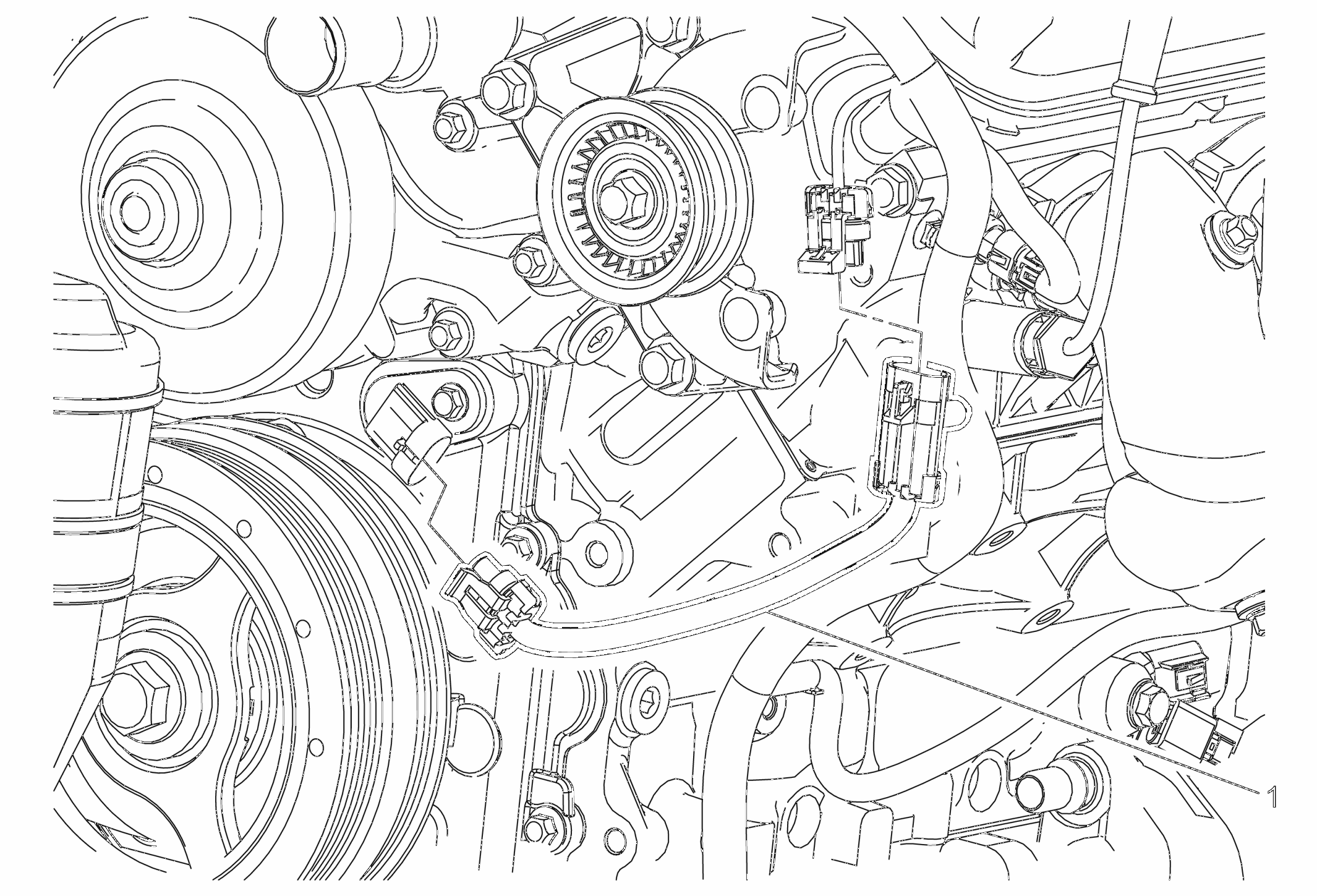

Fig 1: Camshaft Position Sensor Wire (LS7)
GM3654754Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (LS7) .
1 Camshaft Position Sensor Wire
Procedure
Disconnect the electrical connectors.
