Air Cleaner Element Replacement (LSA)

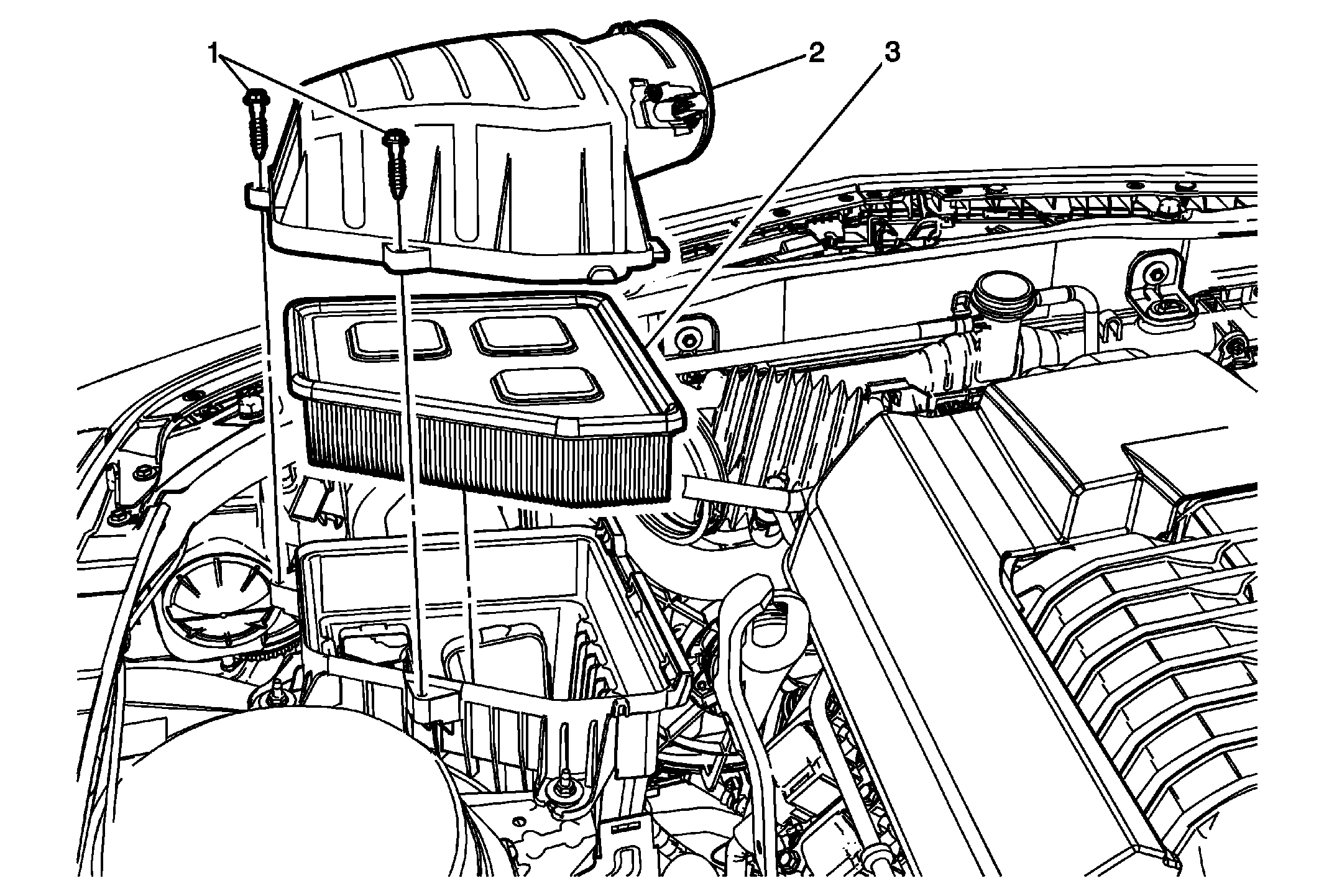

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the air cleaner resonator outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LSA) |
|
| 1 | Air Cleaner Cover Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Air Cleaner Cover Procedure Disconnect the mass airflow sensor. |
| 3 | Air Cleaner Element |
