Underbody Side Rail Cross Brace Replacement (Convertible)

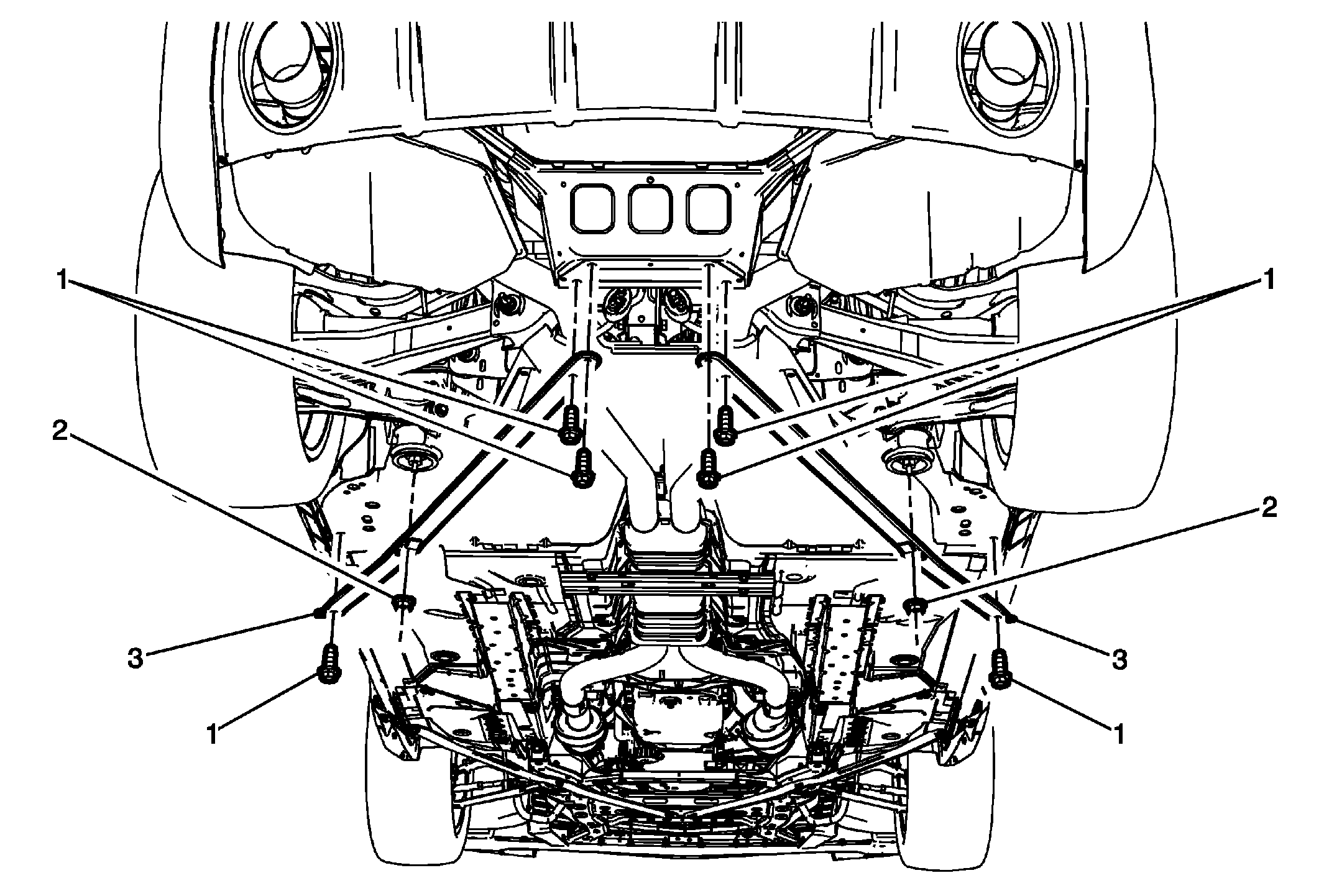

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
NOTE:
Apply GM Thread Locker to the attaching bolts and nuts, P/N US 12345382 (CA 10953489). |
|
| 1 | Underbody Side Rail Cross Brace Bolt (Qty: 6) Tighten 58 N.m (43 lb ft) |
| 2 | Underbody Side Rail Cross Brace Nut (Qty: 2) Tighten 58 N.m (43 lb ft) |
| 3 | Underbody Side Rail Cross Brace (Qty: 2) |
