Quarter Trim Panel Replacement (Coupe)

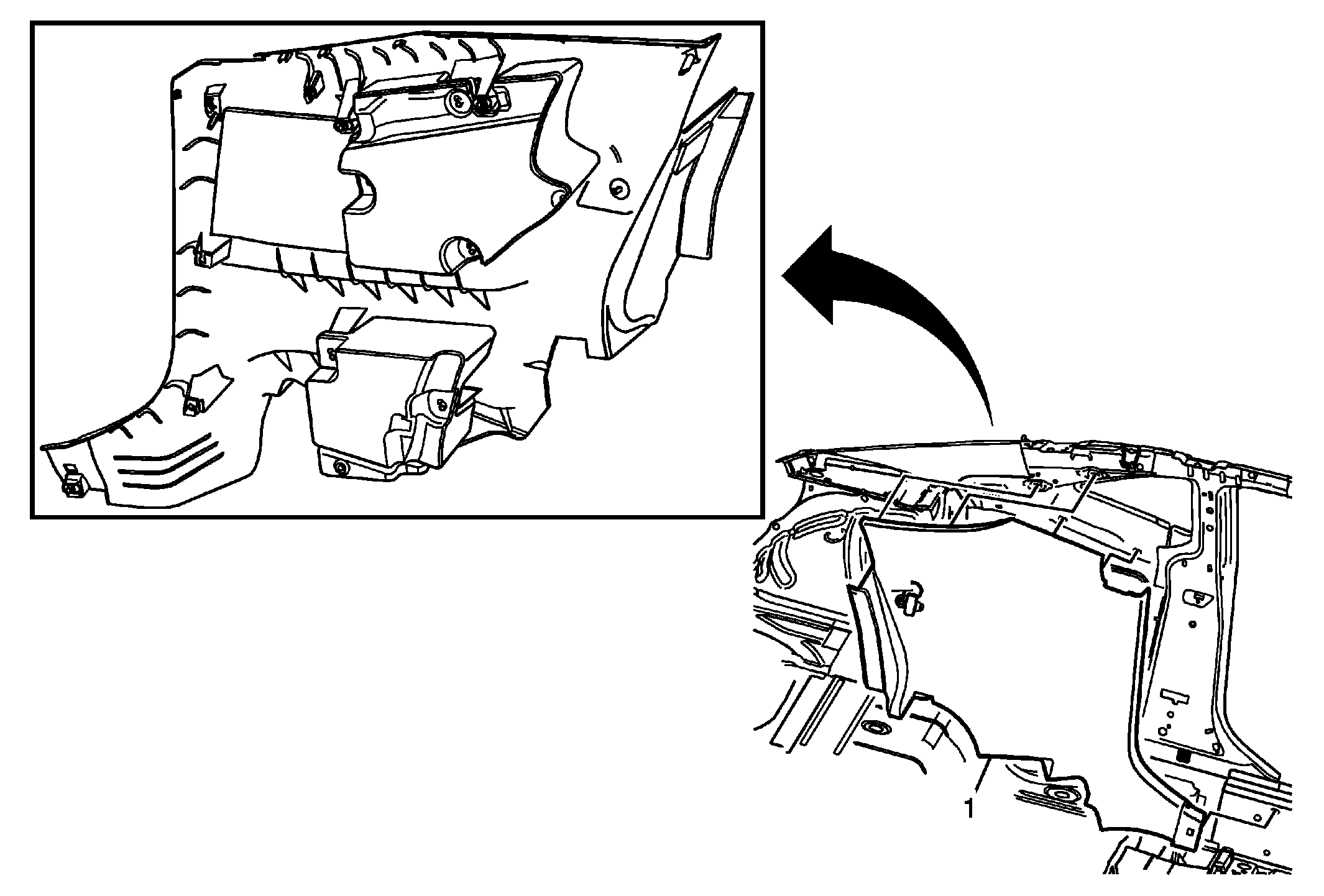

Fig 1: Quarter Trim Panel (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove rear seat back. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
1	Rear Quarter Lower Trim Panel Procedure Use trim tool or equivalent to aid in the removal of trim panel.

Callout

Component Name

Preliminary Procedures

Rear Quarter Lower Trim Panel
Procedure
Use trim tool or equivalent to aid in the removal of trim panel.
