Quarter Trim Panel Replacement (Convertible)

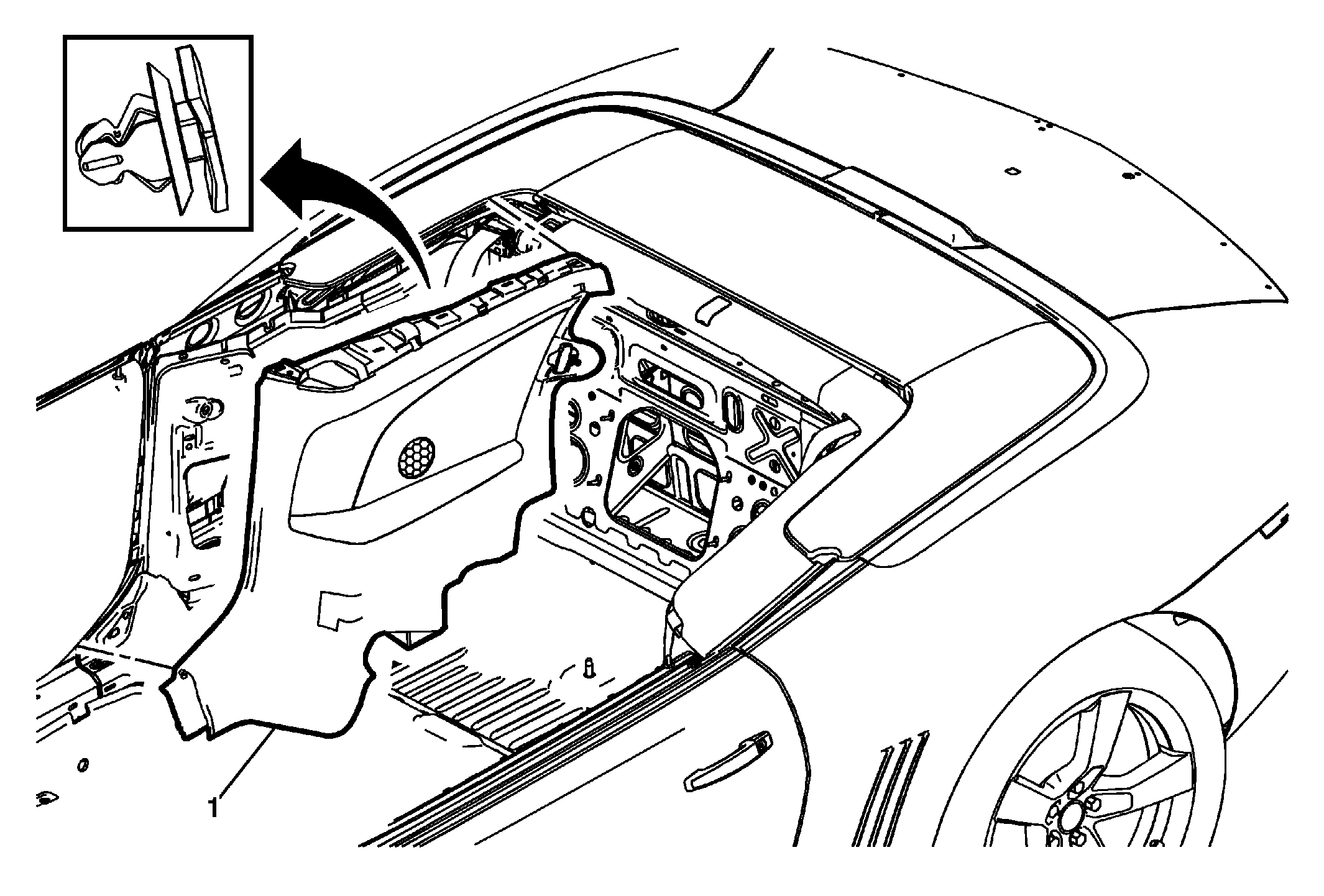

Fig 1: Quarter Trim Panel (Convertible)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the folding top assembly in a full down position to allow access to the quarter trim panel. Reposition the quarter upper trim panel to gain access to the quarter trim panel. Refer to Quarter Upper Trim Panel Replacement (Convertible) . Remove the front side door carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the driver or passenger seat retractor side belt anchor fastener. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .
1	Quarter Trim Panel Assembly Procedure Grasp the panel and pull outward, disengaging the clips securing the panel to the vehicle. Feed the seat belt through the opening in the panel.

Callout

Component Name

Preliminary Procedures

Place the folding top assembly in a full down position to allow access to the quarter trim panel.
Reposition the quarter upper trim panel to gain access to the quarter trim panel. Refer to Quarter Upper Trim Panel Replacement (Convertible) .
Remove the front side door carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
Remove the driver or passenger seat retractor side belt anchor fastener. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .

Quarter Trim Panel Assembly

Procedure

Grasp the panel and pull outward, disengaging the clips securing the panel to the vehicle.
Feed the seat belt through the opening in the panel.
