Rear Compartment Lid Weatherstrip Replacement

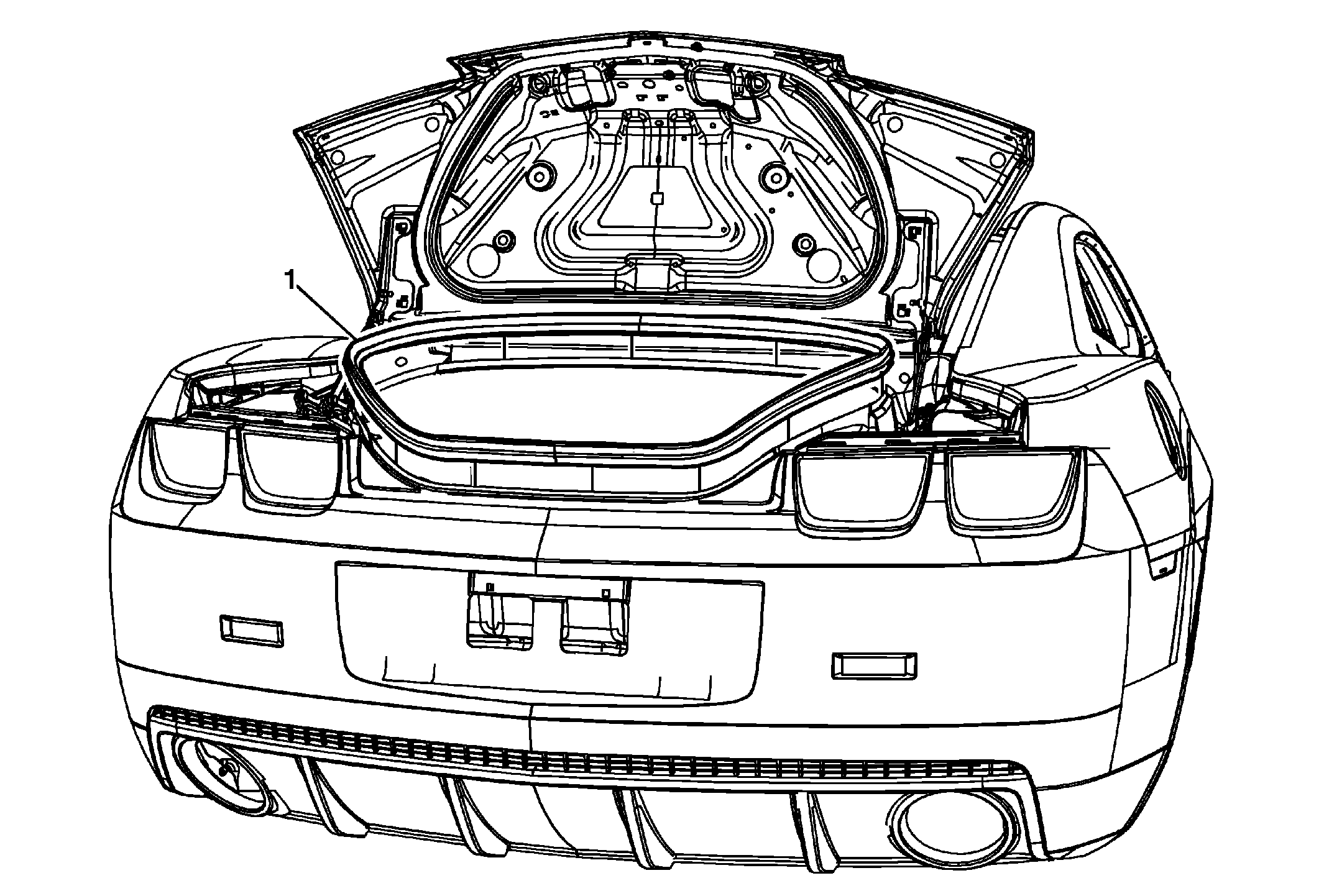

Fig 1: Rear Compartment Lid Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement (Coupe)Rear Compartment Lid Carpet Replacement (Convertible) . Disconnect and unclip all wiring harnesses from rear compartment lid. Disconnect the rear compartment key cylinder release cable from the lid latch and unclip the cable from the lid.
1	Compartment Lid Weatherstrip Procedure Clean the mounting surface using a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha.

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement (Coupe)Rear Compartment Lid Carpet Replacement (Convertible) .
Disconnect and unclip all wiring harnesses from rear compartment lid.
Disconnect the rear compartment key cylinder release cable from the lid latch and unclip the cable from the lid.

Compartment Lid Weatherstrip
Procedure
Clean the mounting surface using a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha.
