Rear Compartment Lid Replacement

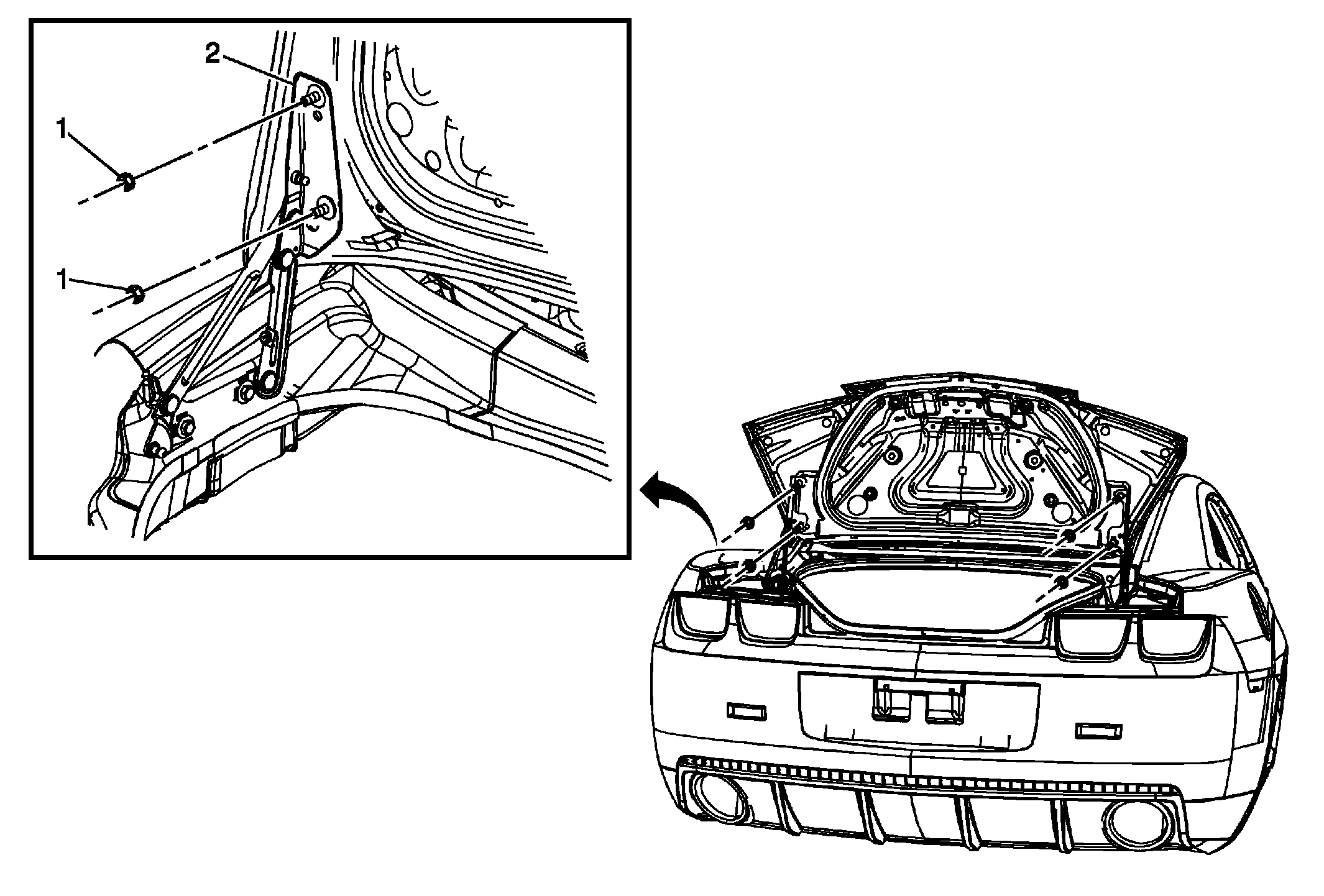

Fig 1: Rear Compartment Lid And Nut
GM2158363Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Lid Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
