Rear Compartment Lid Hinge Replacement

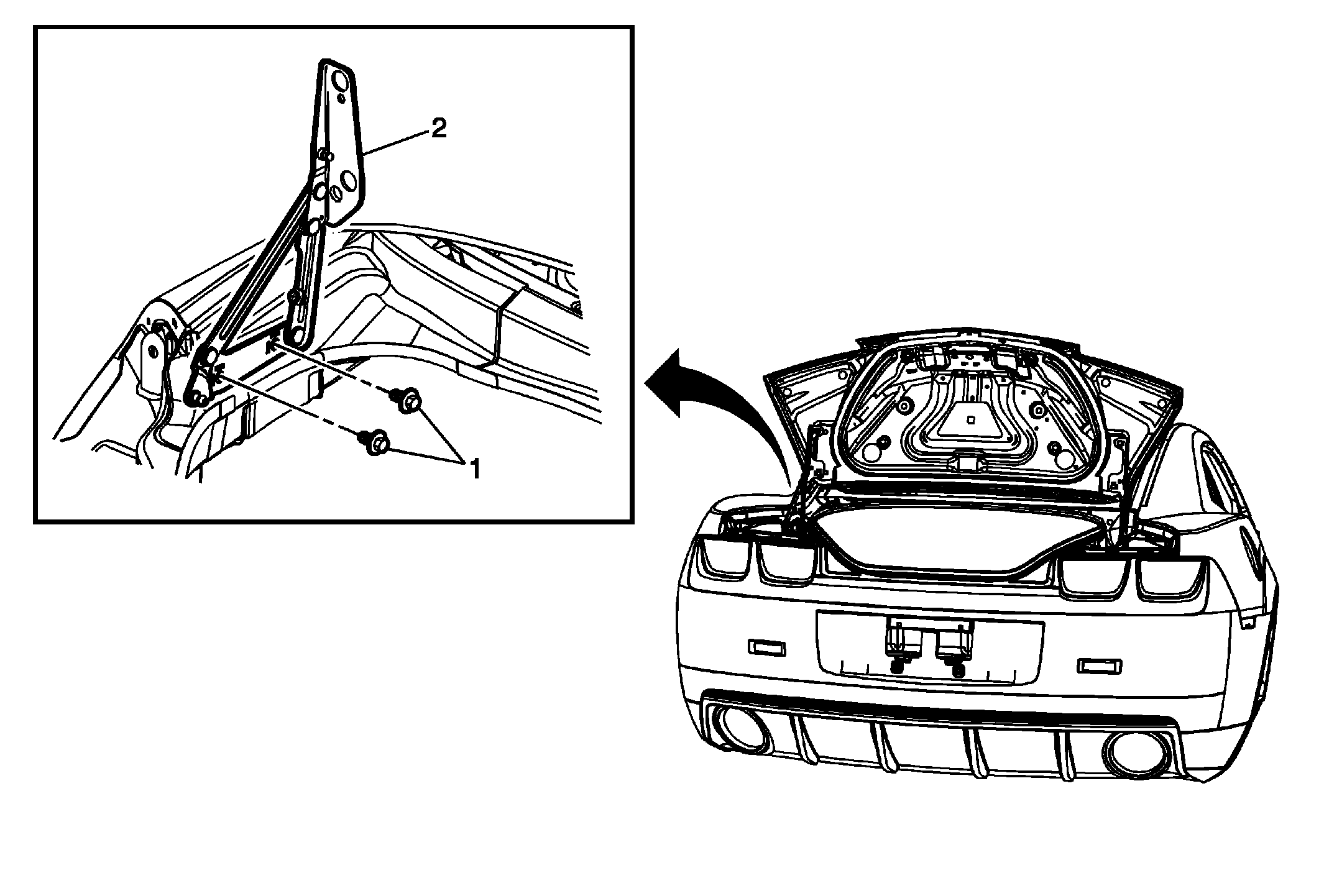

Fig 1: Rear Compartment Lid Hinge And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement . Remove the rear compartment lid strut. Refer to Rear Compartment Lid Strut Replacement .
1	Rear Compartment Lid Hinge Bolt/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Compartment Lid Hinge

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear compartment lid strut. Refer to Rear Compartment Lid Strut Replacement .

Rear Compartment Lid Hinge Bolt/Screw (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Rear Compartment Lid Hinge
