Hood Replacement

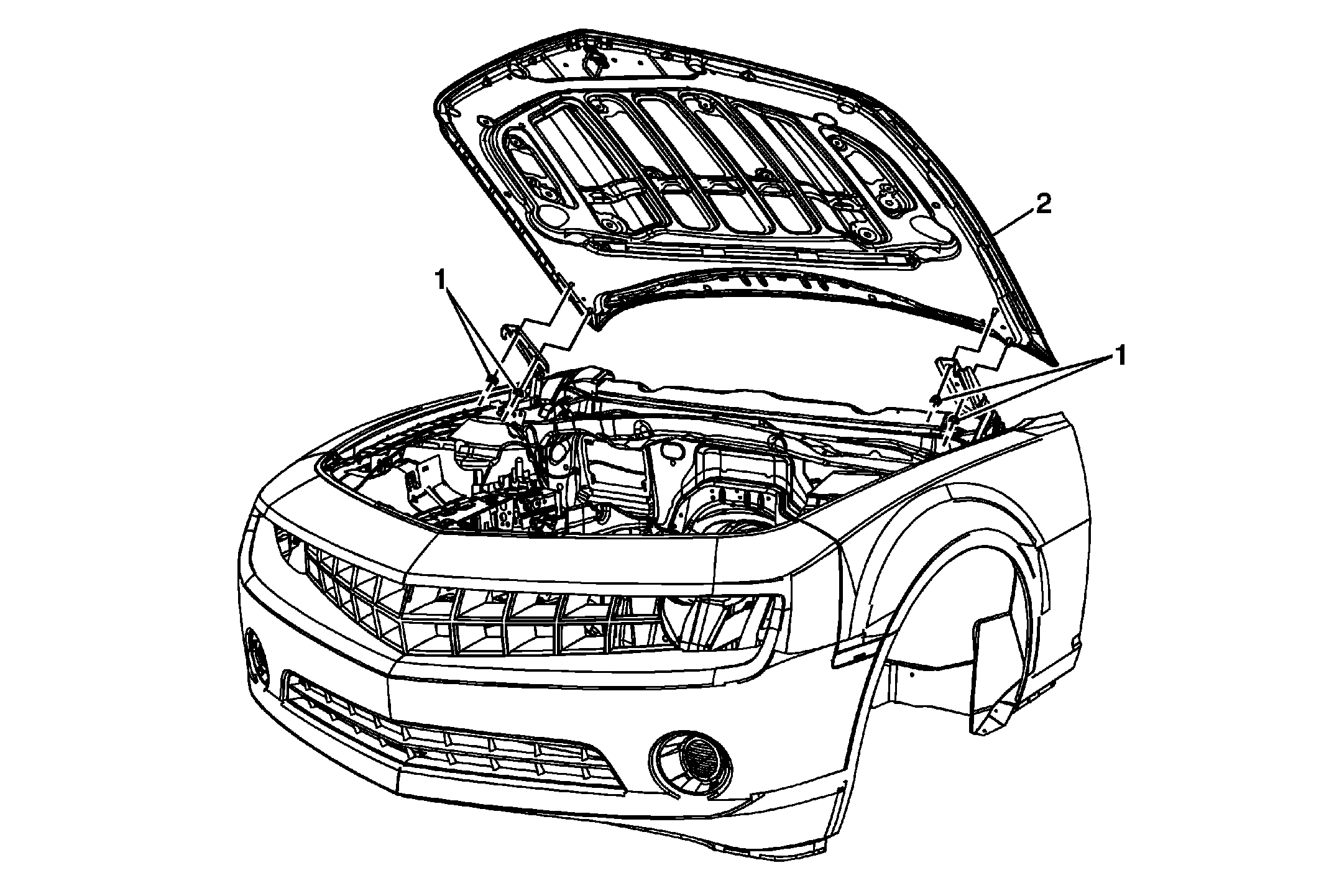

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the hood strut rod. Refer to Hood Strut Replacement . |
|
| 1 | Hood Hinge Nut (Qty: 4)
CAUTION:
Refer to Fastener Caution . Procedure Mark the location of the hinge to the hood with a grease pencil to aid in alignment. Tighten 25 N.m (18 lb ft) |
| 2 | Hood Procedure Disconnect the wiper washer hoses from the hood. |
